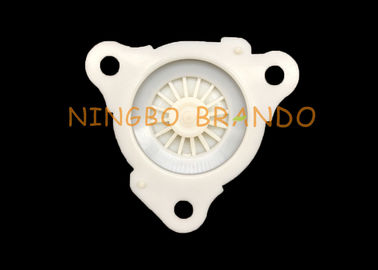

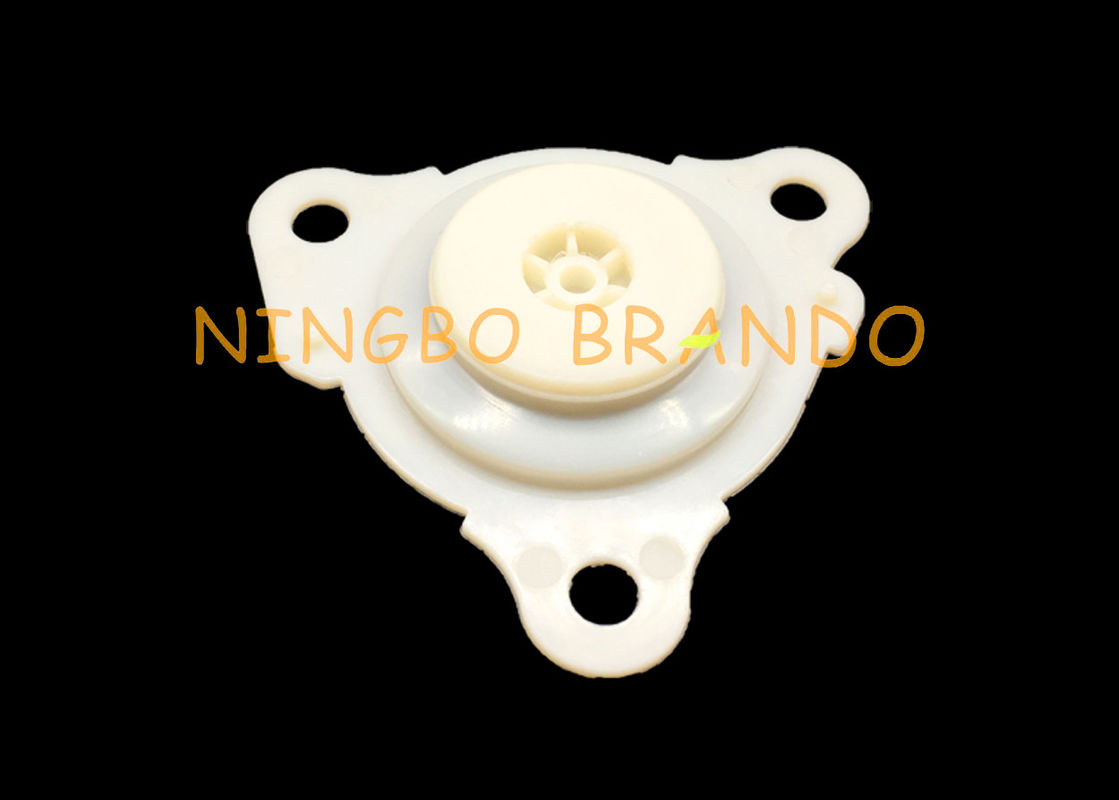

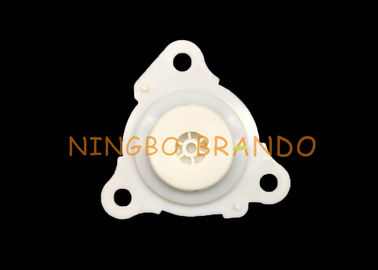

1261253 TPE Solenoid Valve Repair Kit Secondary Diaphragm For 8296300 8296600 8296700 8296800 Diaphragm Valve

1261253 TPE Solenoid Valve Repair Kit Secondary Diaphragm For 8296300 8296600 8296700 8296800 Diaphragm Valve

    • 1261253 TPE Solenoid Valve Repair Kit Secondary Diaphragm For 8296300 8296600 8296700 8296800 Diaphragm Valve
    • 1261253 TPE Solenoid Valve Repair Kit Secondary Diaphragm For 8296300 8296600 8296700 8296800 Diaphragm Valve
    • 1261253 TPE Solenoid Valve Repair Kit Secondary Diaphragm For 8296300 8296600 8296700 8296800 Diaphragm Valve
  • 1261253 TPE Solenoid Valve Repair Kit Secondary Diaphragm For 8296300 8296600 8296700 8296800 Diaphragm Valve

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: 1261253

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Plastic Bags, Cartons, Pallet
    Delivery Time: 4-7 Days
    Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
    Supply Ability: 200000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 1261253 Diaphragm Repair Kit Suitable Valves: 8296300, 8296600, 8296700, 8296800
    Diaphragm Material: TPE Mounting Hole Size: φ6.5mm
    Diaphragm Outer Diameter: φ49.0mm Center Distance: φ60.0mm
    Seat OD: φ28.0mm Seat ID: φ11.0mm
    Bleed Hole: 1 Packaging: Individual Plastic Bag Sealed

    1261253 TPE Solenoid Valve Repair Kit Secondary Diaphragm For 8296300 8296600 8296700 8296800 Diaphragm Valve



    The electromagnetic valve is used to control the fluid or gas, and the isolation diaphragm electromagnetic valve is used to isolate the valve body and the driving part. It can not only prevent the fluid from flowing into the driving part made of metal material to prevent it from being corroded, but also prevent the metal powder generated by the driving part from mixing into the fluid And control of some other corrosive fluids in industry. The working principle of the isolation diaphragm solenoid valve is composed of solenoid coil, iron core, spring, diaphragm and valve body. The diaphragm effectively isolates the iron core, spring and coil from the valve body. When working, the solenoid coil is energized to generate a magnetic field, which controls the iron core to pull the diaphragm against the resistance of the spring and open or close the input and output ports.



    Main dimension of Norgren Type Pulse Valve Diaphragm Kit:

    1261253 TPE Solenoid Valve Repair Kit Secondary Diaphragm For 8296300 8296600 8296700 8296800 Diaphragm Valve







    Available Models of Diaphragm Valve Repair Kits For Norgren Pulse Valves:

    Ordering Code
    Fitted Valve Code
    Valve Port Size
    Material
    1261253
    8296300
    3/4''
    TPE
    1261253
    8296400
    1''
    TPE
    1261402
    8296600
    1.5''
    TPE
    1268274
    8296700
    2''
    TPE
    1268274
    8296800
    2.5''
    TPE
    1271526
    8296900
    3''
    TPE



    YouTube video of Norgren Diaphragm Repair Kit For Norgren Pulse Valve:



    Factory Production Pictures of Solenoid Valve Diaphragm Kits:

    1261253 TPE Solenoid Valve Repair Kit Secondary Diaphragm For 8296300 8296600 8296700 8296800 Diaphragm Valve



    Diaphragm Features:


    1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.



    2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.



    3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.



    4. Facbric-reinforced diaphragms advantages:
    * No leakage * No Lubrication * No Breakaway Force * No Friction
    * Functionality Over Wide Pressure Ranges
    * High Strength * Low Cost * Simple Design * Versatility



    5. EPDM, Viton all available.
