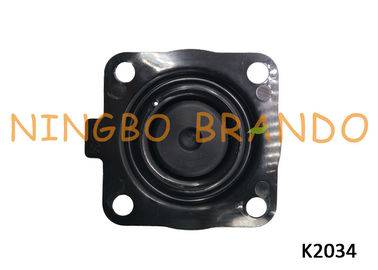

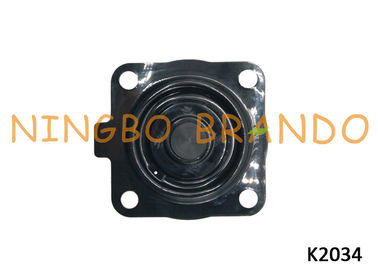

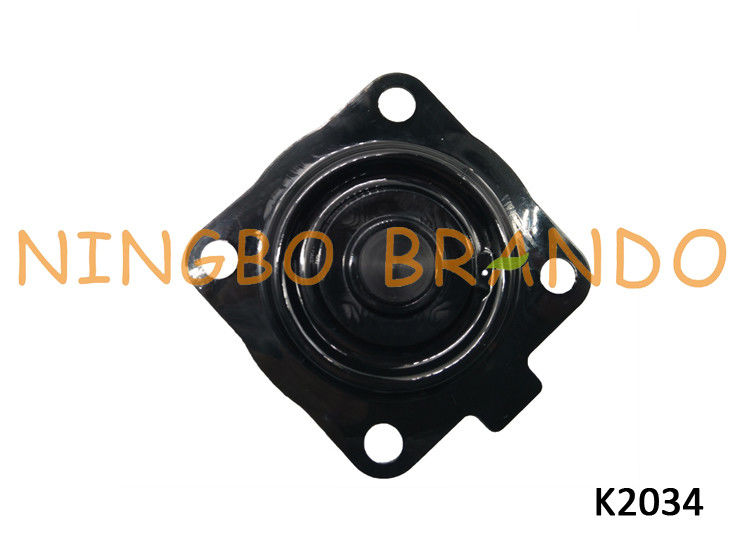

3/4" Solenoid Pulse Valve Shockwave Diaphragm Repair Kits For RCAC20T4 / ST4 / DD4 / FS4 Diaphragm Valve

3/4" Solenoid Pulse Valve Shockwave Diaphragm Repair Kits For RCAC20T4 / ST4 / DD4 / FS4 Diaphragm Valve

    • 3/4" Solenoid Pulse Valve Shockwave Diaphragm Repair Kits For RCAC20T4 / ST4 / DD4 / FS4 Diaphragm Valve
    • 3/4" Solenoid Pulse Valve Shockwave Diaphragm Repair Kits For RCAC20T4 / ST4 / DD4 / FS4 Diaphragm Valve
    • 3/4" Solenoid Pulse Valve Shockwave Diaphragm Repair Kits For RCAC20T4 / ST4 / DD4 / FS4 Diaphragm Valve
    • 3/4" Solenoid Pulse Valve Shockwave Diaphragm Repair Kits For RCAC20T4 / ST4 / DD4 / FS4 Diaphragm Valve
  • 3/4" Solenoid Pulse Valve Shockwave Diaphragm Repair Kits For RCAC20T4 / ST4 / DD4 / FS4 Diaphragm Valve

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: K2034

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Size: For 3/4'' Pulse Valve Name: K2546 Shockwave Diaphragm Kit
    Diaphragm Material: TPE Mounting Hole Size: 8.5mm
    Diaphragm Outer Distance: 72mm Center Distance: 76mm
    Sealing Gasket OD: 34mm Sealing Gasket ID: 16mm
    Application: Goyen Type RCAC20T4, RCAC20DD4, RCAC20FS4 Diaphragm Valves

    3/4'' Solenoid Pulse Valve Shockwave Diaphragm Repair Kits For RCAC20T4 / ST4 / DD4 / FS4 Diaphragm Valve



    Goyen Type Shockwave diaphrgam repair kit as an important role in pulse diaphrgam valve.The goyen type electromagnetic pulse valve controls the opening and closing of the unloading hole of the valve body according to the electrical signal.When the valve body is unloaded, the pressure gas in the rear cavity of the valve is discharged, and the pressure gas in the front cavity of the valve is throttled by the negative pressure hole on the diaphragm.The diaphragm is lifted and the pulse valve is sprayed. When the valve body stops unloading, the pressure gas quickly fills the back cavity of the valve through the damping hole.Due to the difference in the force bearing area on the valve body between the two sides of the diaphragm, the back cavity of the valve, The force of the gas is large, the diaphragm can reliably close the injection port of the valve, and the pulse valve stops the injection.
    The electrical signal is timed in milliseconds, and the moment the pulse valve opens, it generates a powerful impinging airflow, thereby achieving instantaneous blowing.



    Youtube Video About K2034 Menbrane repair kits:



    Goyen Type Diaphragm Replacement Kits:

    Material
    Repair Kit
    Fitted Valve Model
    Port Size
    Buna/Nylon
    K2000(M1204B)
    CA20, RCA20, RCAC20
    3/4''
    K2003(M1174B)
    K2016
    K2034
    Buna/Buna
    K2002(M764)
    FKM
    K2007(M2080B)
    K2004(1328B)
    K2017
    K2033
    TPE
    K2034
    RCAC20T4 RCAC25T4 / ST4 / DD4 / FS4
    Buna/Nylon
    K2501(M1183B)
    CA25, RCA25, RCAC25
    1''
    K2529
    K2549
    K2531
    K2545
    K2546
    Buna/Buna
    K2502(M736)
    FKM
    K2503(M1887)
    K2530
    K2532
    K2551
    Buna/Nylon
    K2500(M1183)
    CA32, RCA32, CA35, RCA35,
    CA40, RCA40, CA45, RCA45
    1-1/2''
    K3500(M1581)
    K4000(M1182)
    K4502(M2162)
    Buna/Buna
    K3502(M1591)
    K4504(M2187)
    FKM
    K2503(M1887)
    K4004(M1761)
    K4007(M1156)
    K4503(M2163)
    Buna/Nylon, Buna/Buna
    K5004(M1638A)
    CA50, RCA50, CA62, RCA62
    2'' , 2-1/2''
    K5005(M1639A)
    FKM
    K5000(M1157A)
    K5002(M1528A)
    Buna/Nylon, Buna/Buna
    K7600
    CA76, RCA76
    3''
    K7604
    K7610
    FKM
    K7602
    Buna/Nylon
    K10200
    CA102, RCA102
    4''
    Buna/Buna
    K10203
    FKM
    K10201
    Buna/Nylon, Buna/Buna
    K8000
    CA8, RCA8
    8''
    FKM

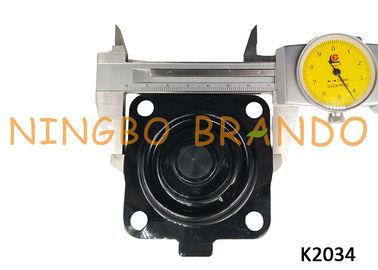

    Dimension:



    DIMENSION

    Diaphragm Features:

    1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.

    2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.

    3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.

    4. Facbric-reinforced diaphragms advantages: *No leakage *No Lubrication * No Breakaway Force * No Friction * Functionality Over Wide Pressure Ranges * High Strength * Low Cost * Simple Design * Versatility

    5. EPDM, FKM all available

    Focus on your demands, Offer you best solution:

    √ Contact us if some points you have doubt
    √ Contact us if somewhere need to change
    √ Contact us if not the one you are looking for
    √ Contact us if you are doing designing

    Welcome to your any question and inquiry!
