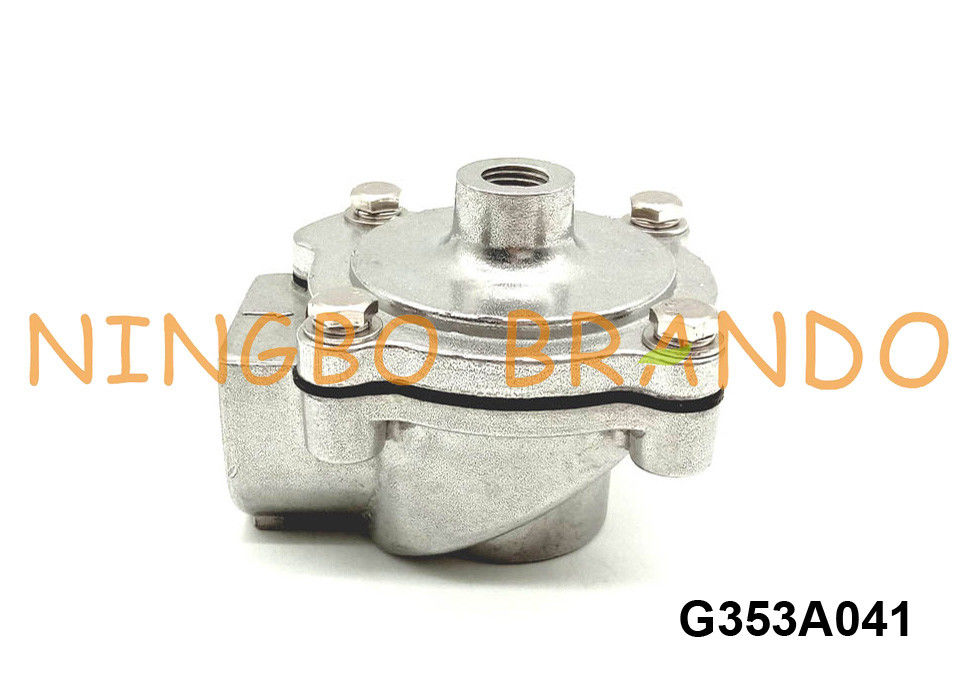

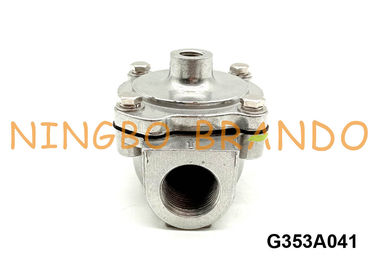

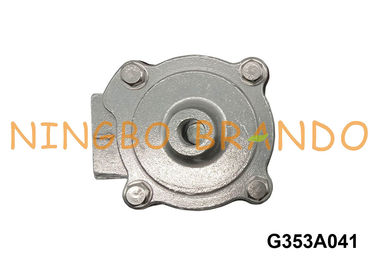

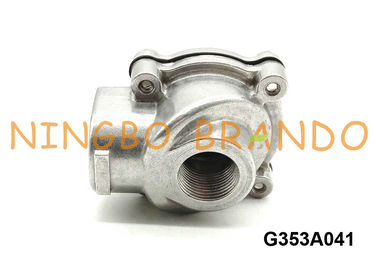

ASCO Type G353A041 NBR 3/4" Port 1/8" Remote Pilot Pulse Valve For Dust Collector

ASCO Type G353A041 NBR 3/4" Port 1/8" Remote Pilot Pulse Valve For Dust Collector

  • ASCO Type G353A041 NBR 3/4" Port 1/8" Remote Pilot Pulse Valve For Dust Collector
  • ASCO Type G353A041 NBR 3/4" Port 1/8" Remote Pilot Pulse Valve For Dust Collector
  • ASCO Type G353A041 NBR 3/4" Port 1/8" Remote Pilot Pulse Valve For Dust Collector
  • ASCO Type G353A041 NBR 3/4" Port 1/8" Remote Pilot Pulse Valve For Dust Collector
ASCO Type G353A041 NBR 3/4" Port 1/8" Remote Pilot Pulse Valve For Dust Collector
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: G353A041
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-7 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: G353A041 Remote Pilot Pulse Valve Port Size: 3/4''
Remote Or Integral: Remote Pilot Remote Pilot Connection: 1/8''
Body Material: Aluminum Diecast Diaphragm Material: TPE Or NBR
Pressure: 0.35 To 0.85 MPa Temperature Of Media: -10 To +70℃
Valve Type: 2/2 Way Function: Normally Closed (NC)
High Light:

ASCO Pulse Valve

,

ASCO Diaphragm Valve

,

ASCO Solenoid Valve

ASCO Type G353A041 NBR 3/4'' Port 1/8'' Remote Pilot Pulse Valve For Dust Collector



Product Features:
1. The diaphragm pulse valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation;


2. The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust tcollector service applications;


3. Integral compression fittings for fast, easy, secure installation;


4. The valves satisfy all relevant EC directives;


5. Valves can also be supplied with Viton diaphragms.



YouTube video of G353A041 ASCO Type Remote Pilot Pulse Valve:


Main dimension of G353A041 3/4'' Dust Collector Diaphragm Valve:

ASCO Type G353A041 NBR 3/4" Port 1/8" Remote Pilot Pulse Valve For Dust Collector 0

Model No

 A (mm)

B
C
(mm)
D
(mm)
E
(mm)
F
(mm)
G
(mm)
Weight
(kg)
G353A041
-
1/8''
51
89
75
41
64
0.45
G353A042
-
1/8''
51
89
75
41
64
0.40
G353A045
30
1/4''
71
130
136
71
98
1.00



Details of G353A041 ASCO Replacement Dust Collector Pulse Valve:

ASCO Type G353A041 NBR 3/4" Port 1/8" Remote Pilot Pulse Valve For Dust Collector 1



Technical parameters of G353 Series ASCO Type Remote Pilot Pulse Valves:

Port
Size
Remote Pilot Connection
Office Size
Operating Pressure Differential (Bar)
Model Number
Diaphragm Material
G
φB
(mm)
Min.
Max.
Aluminium



NBR/Viton
3/4''
1/8''
24

 0.35

8.5
G353A041
1''
1/8''
27
0.35
8.5
G353A042
1 1/2''
1/8''
52
0.35
8.5
G353A045



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
