| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | AE75 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic Bags, Cartons, Pallet |
| Delivery Time: | 4-7 Days |
| Payment Terms: | L/C, T/T, Western Union, Paypal, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Product Name: | Diaphragm Repair Kit | Suitable Valves: | AE1475I12 |
|---|---|---|---|
| Suitable Valve Port Size: | 3'' | Diaphragm Material: | TPE |
| Diaphragm Outer Diameter: | φ157.0mm | Seat OD: | φ97.0mm |
| Seat ID: | φ62.0mm | Air Hole: | With |
| Number Of Diaphragms: | 2 | Packaging: | Individual Plastic Bag Sealed |
| High Light: | Autel Diaphragm,Autel Pulse Valve Diaphragm,Autel Diaphragm Valve Repair Kit |
||

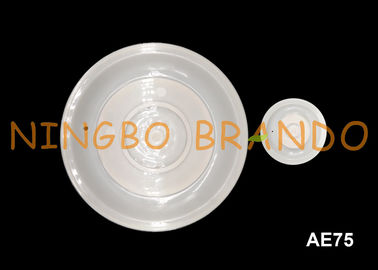

TPE Membrane Diaphragm Repair Kit For AUTEL 3'' AE1475I12 Diaphragm Pulse Valve
The shown is TPE diaphragm repair kits mounted on AUTEL 3'' inch AE1475I12 diaphragm pulse valves, the main features is following:
1. TPE mateial advantage:Easy recycling, energy saving and environmental protection, can be recycled, high strength, high resilience.
2. Air vents are provided between the large and small diaphragm for better air flow and longer service life of the diaphragm and valve body.
3. The design with integral compression fittings will facilitate installation because there is no need for threaded piping.
4. Each diaphragm is individually packed in a packaging bag.
5. Working Temperature is -20ºC- +82 ºC.
6. The use of the diaphragm is between a few hundred thousand and a million times.
YouTube video of Diaphragm Repair Kit For 3'' AUTEL Pulse Valve:
Main dimension of Diaphragm Repair Kit For AE1475I12 Pulse Valve:

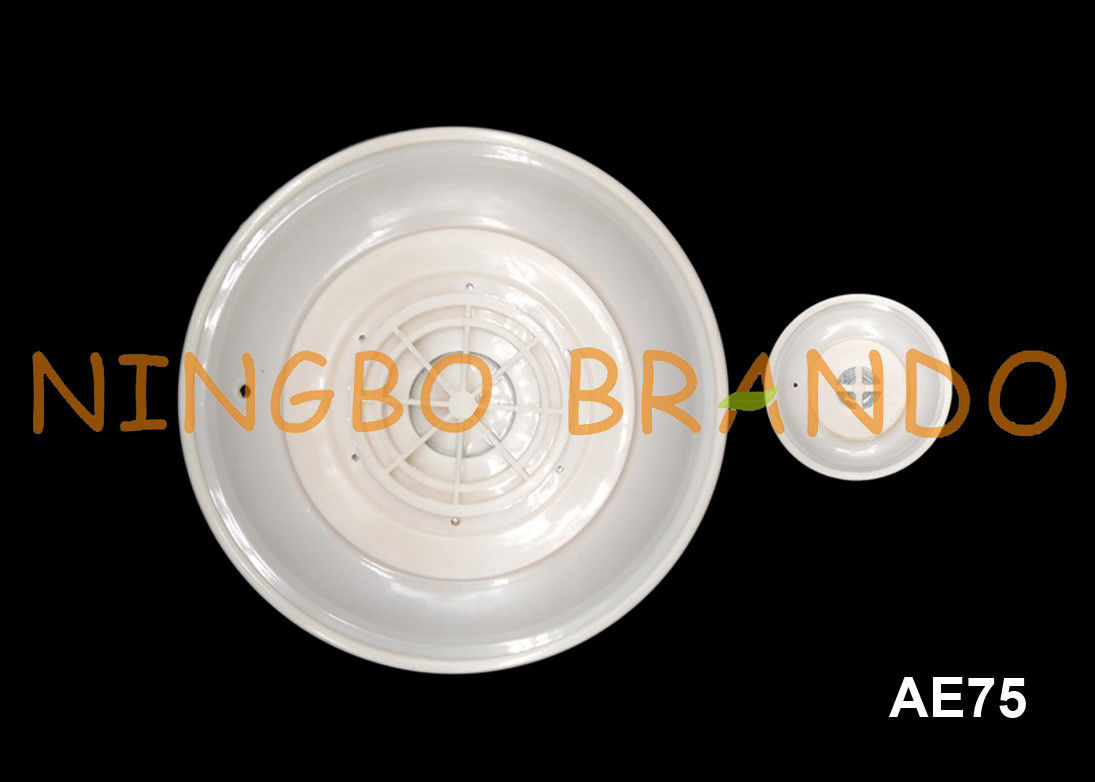

Details of TPE Diaphragm For AUTEL 3'' AE1475I12 Pulse Valve:
Available Models of Diaphragm Valve Repair Kits For AUTEL Pulse Valves:
Factory Production Pictures of Solenoid Valve Diaphragm Kits:
Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
* No leakage * No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility
5. EPDM, Viton all available.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
