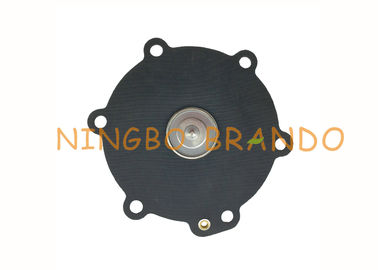

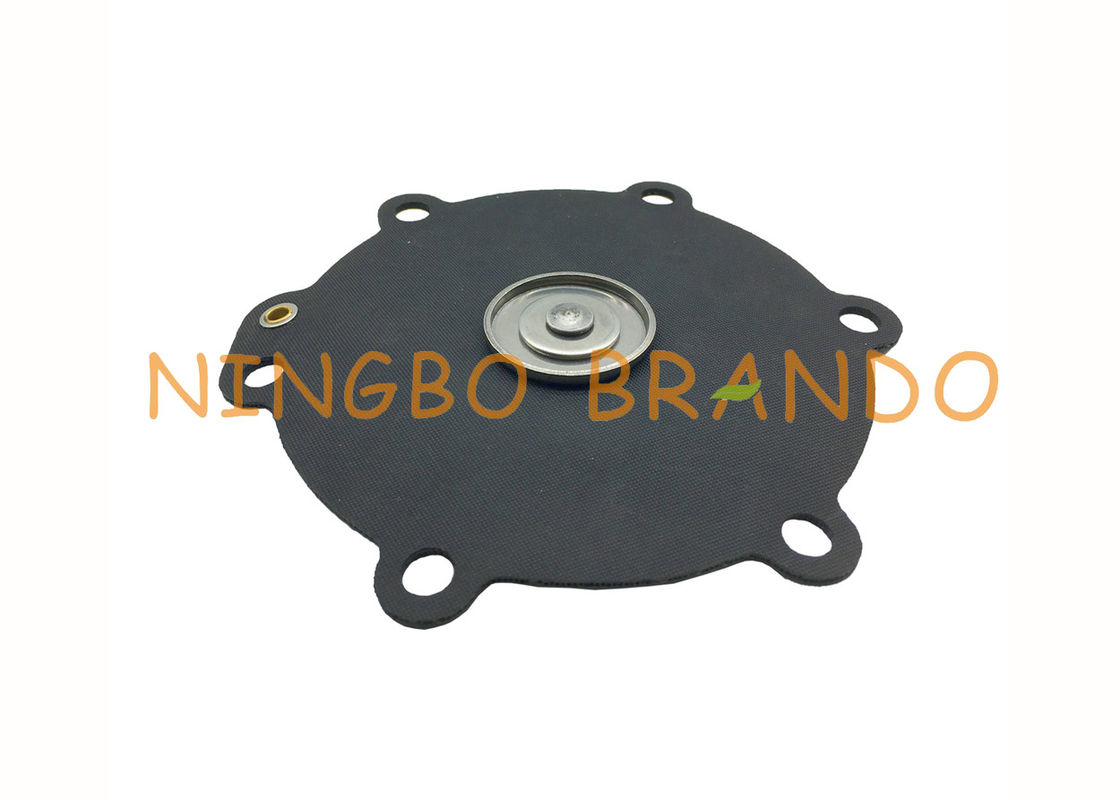

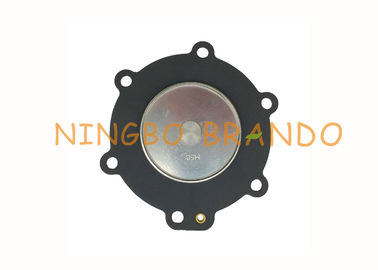

M50 Diaphragm Repair Kits For FP55 FM55 SQP50 SQM50 SQP55 SQM55 SQP60 SQM60 SQP65 SQM65 Model Solenoid Valve

M50 Diaphragm Repair Kits For FP55 FM55 SQP50 SQM50 SQP55 SQM55 SQP60 SQM60 SQP65 SQM65 Model Solenoid Valve

  • M50 Diaphragm Repair Kits For FP55 FM55 SQP50 SQM50 SQP55 SQM55 SQP60 SQM60 SQP65 SQM65 Model Solenoid Valve
  • M50 Diaphragm Repair Kits For FP55 FM55 SQP50 SQM50 SQP55 SQM55 SQP60 SQM60 SQP65 SQM65 Model Solenoid Valve
  • M50 Diaphragm Repair Kits For FP55 FM55 SQP50 SQM50 SQP55 SQM55 SQP60 SQM60 SQP65 SQM65 Model Solenoid Valve
M50 Diaphragm Repair Kits For FP55 FM55 SQP50 SQM50 SQP55 SQM55 SQP60 SQM60 SQP65 SQM65 Model Solenoid Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: M50
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Plastic Bags, Cartons, Pallet
Delivery Time: 4-7 Days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Product Name: M50 Diaphragm Repair Kit Diaphragm Material: NBR (Buna)
Mounting Hole Size: 11mm Diaphragm Outer Diameter: 146mm
Center Distance: 150mm Bleed Hole: 1
Spring: With Packaging: Individual Plastic Bag Sealed
Suitable Valves: FP/FM55 SQP/SQM50 SQP/SQM55 SQP/SQM60 SQP/SQM65 Sealing Gasket: Without
High Light:

Turbo Diaphragm

,

Turbo Pulse Valve Diaphragm

,

Turbo Pulse Valve Repair Kit

M50 Diaphragm Repair Kits For FP55 FM55 SQP50 SQM50 SQP55 SQM55 SQP60 SQM60 SQP65 SQM65 Model Solenoid Valve



The pulse valve diaphragm is a high-quality rubber diaphragm installed with riveting head to block the compressed air pipe or the outlet of the valve, the vent unloading hole and the bolt hole for fixing the support around. It is the key control part of the electromagnetic pulse valve



The pulse valve diaphragm divides the pulse valve into two air chambers. When the electromagnetic pulse valve is connected with clean compressed air in the dust cleaning system of the pulse bag filter, the compressed air enters into the rear air chamber through the throttle hole. At this time, the pressure of the rear air chamber presses the diaphragm against the air outlet of the valve, and the pulse valve is in the closed state. The pulse controller outputs signals to move the armature of the pulse valve, and the rear air chamber of the valve discharges When the air hole is opened, the rear air chamber will lose pressure rapidly, so that the diaphragm moves backward, and compressed air will be injected through the outlet of the valve. When the pulse valve is in the open state, the injection starts, the electrical signal output by the pulse controller disappears, the armature of the electromagnetic pilot head of the pulse valve resets, and the vent hole of the rear air chamber is closed. When the pressure of the rear air chamber increases, the diaphragm of the pulse valve is close to the outlet of the valve, and the pulse valve is in the closed state, and the compressed air will be injected When the blowing is stopped, the length of the blowing time is controlled by the controller.



Main dimension of Turbo Pulse Valve Diaphragm Kit:

M50 Diaphragm Repair Kits For FP55 FM55 SQP50 SQM50 SQP55 SQM55 SQP60 SQM60 SQP65 SQM65 Model Solenoid Valve 0



Details display of Repair Kit Diaphragm For Turbo Valve:

M50 Diaphragm Repair Kits For FP55 FM55 SQP50 SQM50 SQP55 SQM55 SQP60 SQM60 SQP65 SQM65 Model Solenoid Valve 1



Available Models of Diaphragm Valve Repair Kits For Turbo Pulse Valves:

Ordering code
Fitted valve code
Valve port size
Material
M25
FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25
1''
Nitrile/Buna
M40 & M25
FP40, FM40, DP40, DM40, EP40, EM40
1-1/2''
Nitrile/Buna
M50 & M25
SQP50, SQM50, SQP55, SQM55, SQP60, SQM60, SQP65, SQM65
2''
Nitrile/Buna
M75 & M25
FP65, FM65, SQP75-IN, SQM75-IN, SQP100-IN, SQM100-IN
3''
Nitrile/Buna
Tips: EPDM, Viton all available.



Tips: The related solenoid coils and armature assembly are all supplied.



YouTube video of Diaphragm Repair Kit For 3/4'' & 1'' Turbo Pulse Valve:







Factory Production Pictures of Solenoid Valve Diaphragm Kits:

34

12



The diaphragm consists of one or more layers coated on both sides. Diaphragms of different materials can be manufactured according to the requirements of use. The working temperature and pressure range of the diaphragm itself depends on the type of rubber, fabric and structure. The diaphragm can work at -10~80℃, 0.4~0.8 MPa, and the fluororubber and silicone rubber diaphragm can work at -80~232℃.
