M40 Diaphragm Repair Kit For FP40 FM40 DP40 DM40 EP40 EM40 FM45 FP45 DM45 Solenoid Valve

M40 Diaphragm Repair Kit For FP40 FM40 DP40 DM40 EP40 EM40 FM45 FP45 DM45 Solenoid Valve

The electromagnetic pulse valve is composed of the electromagnetic pilot head, the diaphragm and the valve body. The area of the rear chamber of the diaphragm is larger than that of the front chamber, and the air pressure force is large, so that the diaphragm is in the closed position. The electric control instrument inputs the electric signal to make the electromagnetic pilot head close the moving column, open the unloading hole, the pressure gas in the rear chamber of the diaphragm is discharged rapidly, the pressure gas in the front chamber of the diaphragm lifts the diaphragm, and opens the pulse valve channel for injection. When the electric signal disappears, the spring of the electromagnetic pilot head makes the moving column immediately reset and close the unloading hole. The gas pressure and spring force in the back chamber of the diaphragm make the diaphragm close the channel and the valve stops blowing. The damping hole on the diaphragm plays the role of damping the air flow when the moving column of the pilot head is lifted and the gas pressure is unloaded. When the unloading is closed, the pressure gas is filled to the rear cavity quickly, so that the diaphragm closes the channel and stops blowing.

Main dimension of Turbo Pulse Valve Diaphragm Kit:

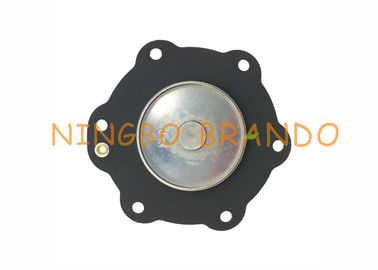

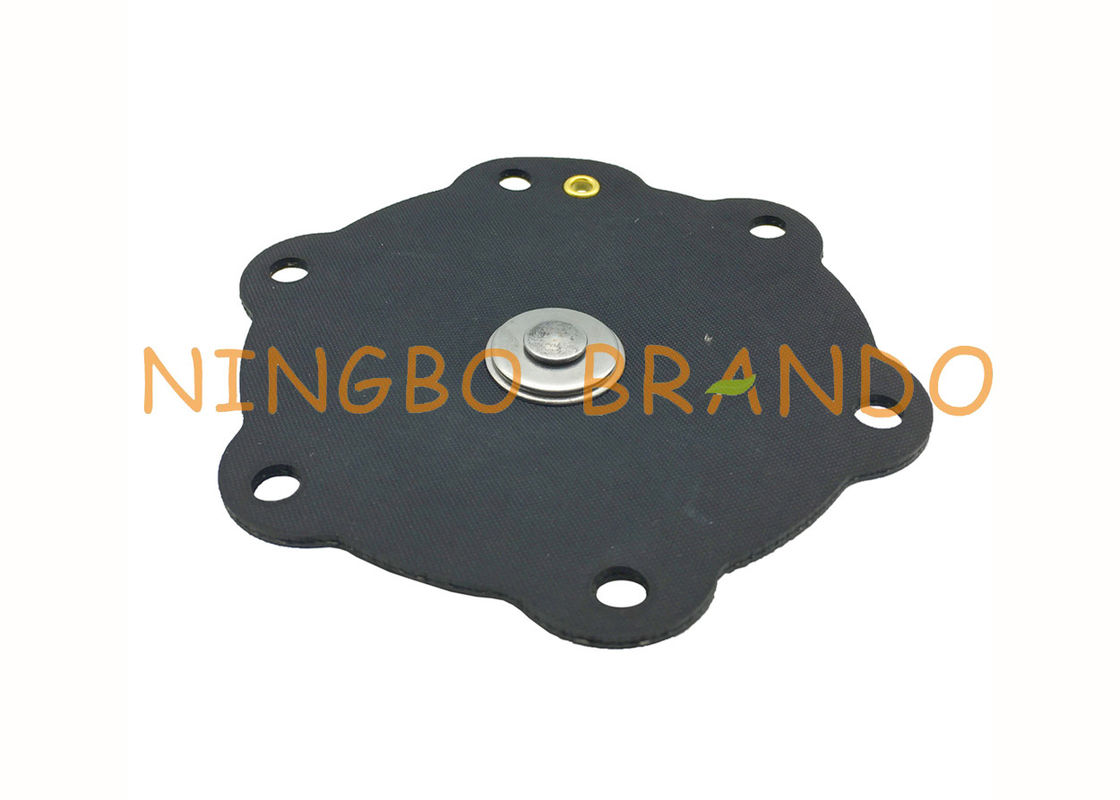

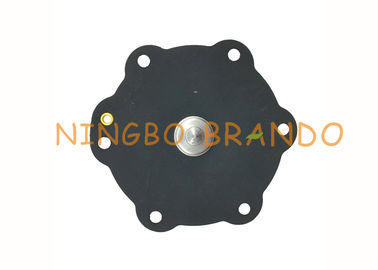

Details display of Repair Kit Diaphragm For Turbo Valve:

Available Models of Diaphragm Valve Repair Kits For Turbo Pulse Valves:

Tips: The related solenoid coils and armature assembly are all supplied.

YouTube video of Diaphragm Repair Kit For 3/4'' & 1'' Turbo Pulse Valve:

Factory Production Pictures of Solenoid Valve Diaphragm Kits:

The diaphragm consists of one or more layers coated on both sides. Diaphragms of different materials can be manufactured according to the requirements of use. The working temperature and pressure range of the diaphragm itself depends on the type of rubber, fabric and structure. The diaphragm can work at -10~80℃, 0.4~0.8 MPa, and the fluororubber and silicone rubber diaphragm can work at -80~232℃.
