Place of Origin: | China |
Brand Name: | Brando |
Certification: | CE |
Model Number: | M25 |
Minimum Order Quantity: | 1 pc |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic Bags, Cartons, Pallet |
Delivery Time: | 4-7 Days |
Payment Terms: | L/C, T/T, Western Union, Paypal, MoneyGram |
Supply Ability: | 200000 pcs per month |
Product Name: | M25 Diaphragm Repair Kit | Diaphragm Material: | NBR (Nitrile) |
---|---|---|---|
Mounting Hole Size: | φ6.5mm | Diaphragm Width: | 80mm |
Diaphragm Length: | 73mm | Center Distance: | 78mm |
Bleed Hole: | 1 | Spring: | 1 |
Packaging: | Individual Plastic Bag Sealed | Suitable Valves: | FP/FM20, FP/FM25, DP/DM20, DP/DM25, EP/EM25, SQP/SQM20, SQP/SQM25, FDP/FDM20, FDP/FDM25 |
High Light: | Turbo Diaphragm,Turbo Pulse Valve Diaphragm,Turbo Pulse Valve Repair Kit |

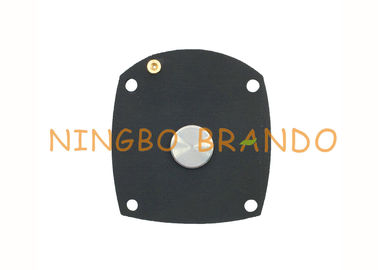

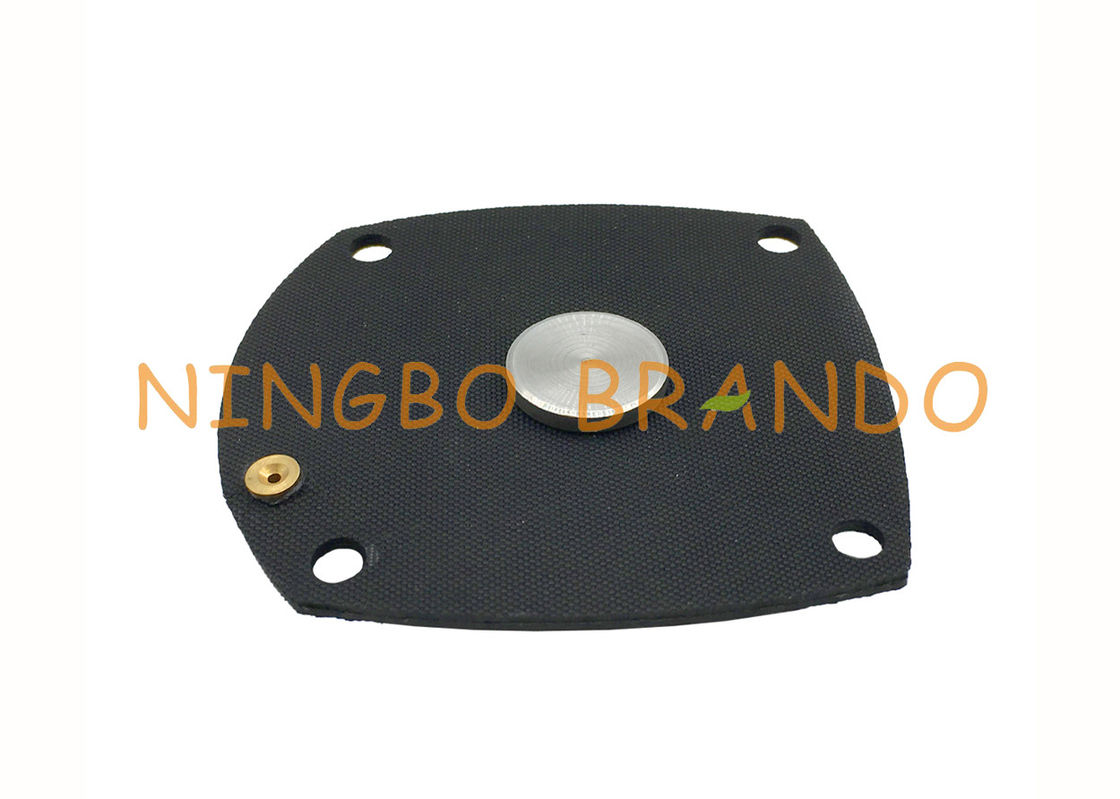

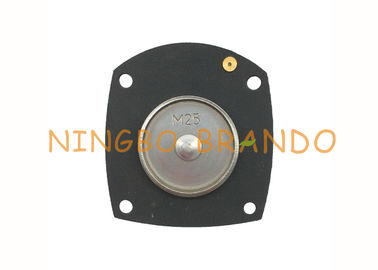

M25 Diaphragm For FP20 FM20 FP25 FM25 DP20 DM20 DP25 DM25 EP25 EM25 SQP20 SQM20 SQP25 SQM25 FDP20 FDM20 FDP25 Valve
The working principle of Turbo pulse solenoid valve is: when the coil is powered on instantaneously, the electromagnetic force makes the armature move; when the coil is powered off, the armature is maintained by the permanent magnetic force. At this time, the medium pressure on the upper part of the diaphragm in the main valve chamber passes through the pressure relief hole to form the pressure difference between the upper and lower parts of the diaphragm. Under the action of the imported medium pressure, the main valve is opened. When a instantaneous reverse current is applied to the coil, the armature moves in the opposite direction to cut off the pressure relief hole, and the medium bursts into the upper part of the diaphragm through the balance hole of the main valve to seal the main valve port.
Main dimension of Turbo Pulse Valve Diaphragm Kit:
Available Models of Diaphragm Valve Repair Kits For Turbo Pulse Valves:
Tips: The related solenoid coils and armature assembly are all supplied.
YouTube video of Diaphragm Repair Kit For 3/4'' & 1'' Turbo Pulse Valve:
Factory Production Pictures of Solenoid Valve Diaphragm Kits:
The diaphragm consists of one or more layers coated on both sides. Diaphragms of different materials can be manufactured according to the requirements of use. The working temperature and pressure range of the diaphragm itself depends on the type of rubber, fabric and structure. The diaphragm can work at -10~80℃, 0.4~0.8 MPa, and the fluororubber and silicone rubber diaphragm can work at -80~232℃.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Brandon
Tel: +8613454729544
