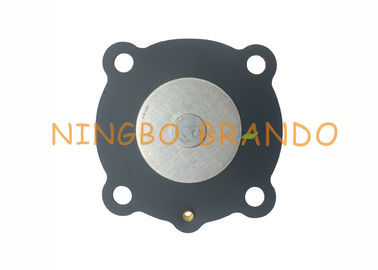

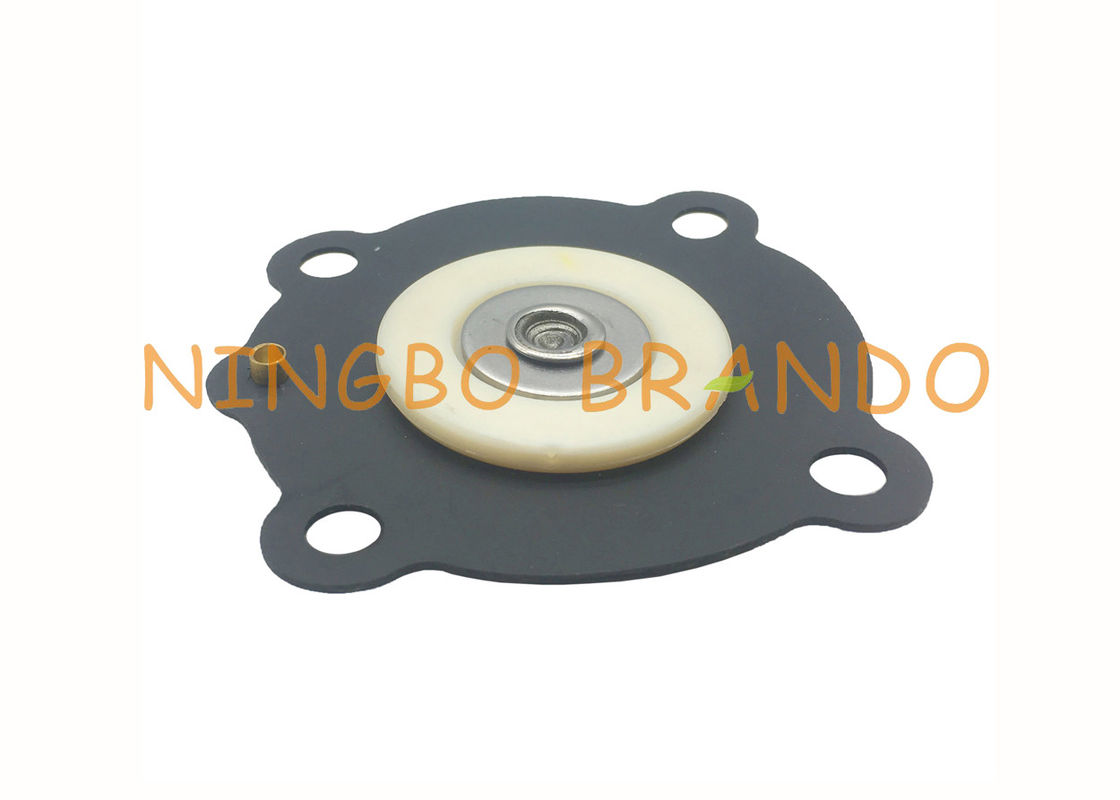

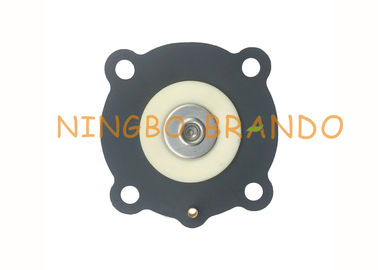

1 Inch Solenoid Valve Repair Kit NBR Nitrile Buna Material Diaphragm For JICI 25 JICR 25 JISI 25 JISR 25

1 Inch Solenoid Valve Repair Kit NBR Nitrile Buna Material Diaphragm For JICI 25 JICR 25 JISI 25 JISR 25

  • 1 Inch Solenoid Valve Repair Kit NBR Nitrile Buna Material Diaphragm For JICI 25 JICR 25 JISI 25 JISR 25
  • 1 Inch Solenoid Valve Repair Kit NBR Nitrile Buna Material Diaphragm For JICI 25 JICR 25 JISI 25 JISR 25
  • 1 Inch Solenoid Valve Repair Kit NBR Nitrile Buna Material Diaphragm For JICI 25 JICR 25 JISI 25 JISR 25
1 Inch Solenoid Valve Repair Kit NBR Nitrile Buna Material Diaphragm For JICI 25 JICR 25 JISI 25 JISR 25
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: J25
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Bags, Cartons, Pallet
Delivery Time: 4-7 Days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Name: Diaphragm Repair Kit Suitable Valves: JICI 25, JICR 25, JISI 25, JISR 25
Diaphragm Material: NBR/Buna Mounting Hole Size: φ8.5mm
Diaphragm Outer Diameter: φ82mm Center Distance: φ82mm
Seat Material: Nylon Seat Outer Diameter: φ47mm
Seat Inner Diameter: φ28mm Bleed Hole: 1
Packaging: Individual Plastic Bag Sealed Size: 1 Inch
High Light:

Joil Diaphragm

,

Joil Pulse Valve Diaphragm

,

Joil Pulse Valve Repair Kit

1'' inch Solenoid Valve Repair Kit NBR Nitrile Buna Material Diaphragm For JICI 25 JICR 25 JISI 25 JISR 25



The pulse controller outputs electrical signal to make the electromagnetic pilot head absorb and transport, and close the unloading hole. The pressure gas behind the diaphragm is quickly discharged. The pressure gas controlled in front of the diaphragm holds the diaphragm, closes the underground passage of the electromagnetic pulse valve and sprays into the street, the electrical signal disappears, the spring of the electromagnetic pilot head causes the moving column to immediately dethrone and block the unloading hole, the gas pressure and spring force controlled in rear of the diaphragm causes the diaphragm to reopen the underground passage, the electromagnetic pulse valve pauses the injection, the resistance hole on the diaphragm, when the moving column of the pilot head holds, the gas pressure unloads When the unloading is blocked, the pressure gas will be filled to the rear chamber quickly, and the diaphragm will be reopened to the underpass and the injection will be suspended.



Available Models of Diaphragm Valve Repair Kits For Joil Pulse Valves:



Ordering Code
Type
Quatity
Suitable valve
Material
J20
3/4''
1
JICI 20, JICR 20,
JISI 20, JISR 20
Nitrile/Buna
J25
1''
1
JICI 25, JICR 25,
JISI 25, JISR 25
J40 & JTY-X
1 1/2''
2
JICI 40, JICR 40,
JISI 40, JISR 40,
JIFI 40, JIFR 40
J50 & JTY-X
2''
2
JISI 50, JISR 50,
JIFI 50, JIFR 50
J76 & JTY-X
2 1/2''
2
JISI 65, JISR 65,
JIFI 65, JIFR 65
J89 & JTY-X
3''
2
JISI 80, JISR 80,
JIHI 80, JIHR 80
J102 & JTY-X
4''
2
JIHI 100, JIHR 100




Main dimension of JISI JISR JIFI JIFR Series NBR Diaphragm:

1 Inch Solenoid Valve Repair Kit NBR Nitrile Buna Material Diaphragm For JICI 25 JICR 25 JISI 25 JISR 25 0



Details display of JISI JISR JIFI JIFR Series Valve Diaphragm:



1 Inch Solenoid Valve Repair Kit NBR Nitrile Buna Material Diaphragm For JICI 25 JICR 25 JISI 25 JISR 25 1


Tips: The related solenoid coils and armature assembly are all supplied.



YouTube Video of Diaphragm Repair Kit For Joil Valve:



Factory Production Pictures of Solenoid Valve Diaphragm Kits:

34

12



Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.



2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.



3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.



4. Facbric-reinforced diaphragms advantages:
* No leakage  * No Lubrication  * No Breakaway Force  * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost  * Simple Design  * Versatility



5. EPDM, FKM all available.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
