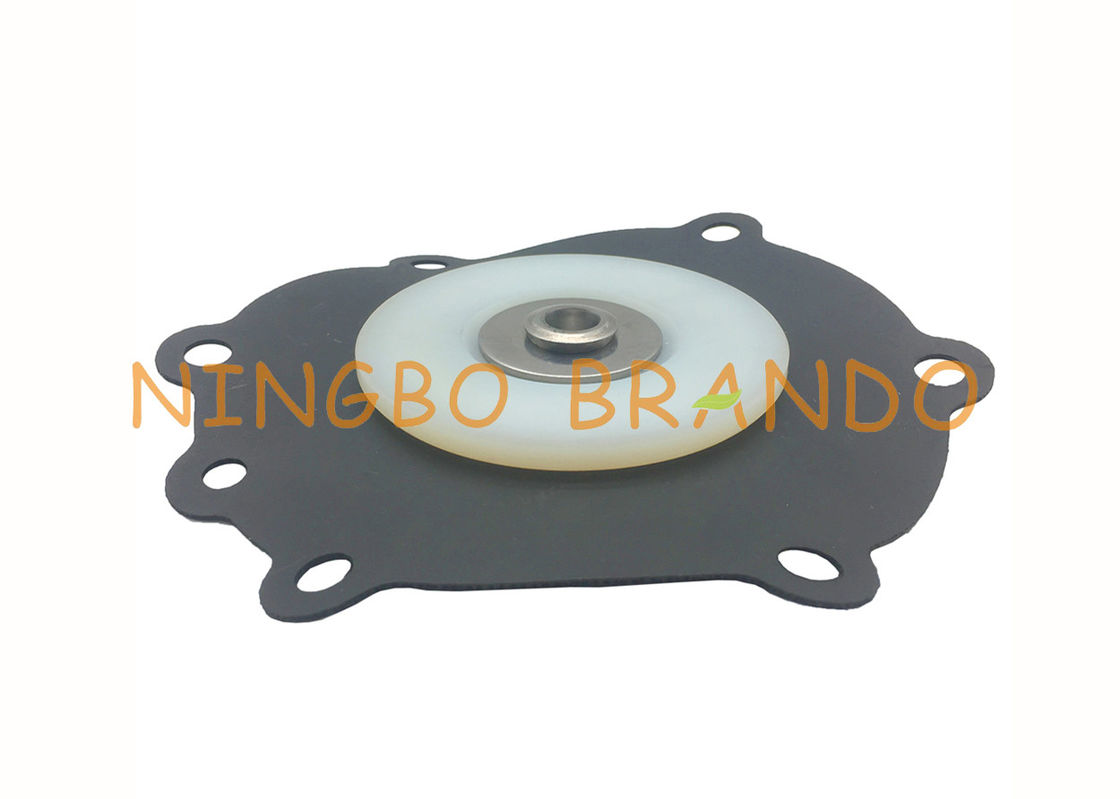

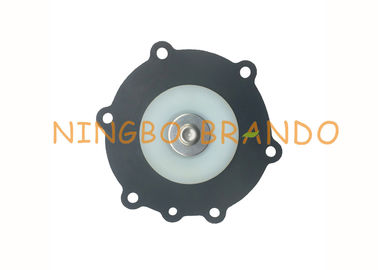

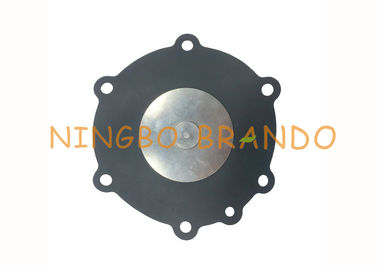

Diaphragm Repair Kits Membrane For Diaphragm Valve JISI 50 JISR 50 JIFI 50 JIFR 50 Diaphragm Rubber Diaphragm

Diaphragm Repair Kits Membrane For Diaphragm Valve JISI 50 JISR 50 JIFI 50 JIFR 50 Diaphragm Rubber Diaphragm

  • Diaphragm Repair Kits Membrane For Diaphragm Valve JISI 50 JISR 50 JIFI 50 JIFR 50 Diaphragm Rubber Diaphragm
  • Diaphragm Repair Kits Membrane For Diaphragm Valve JISI 50 JISR 50 JIFI 50 JIFR 50 Diaphragm Rubber Diaphragm
  • Diaphragm Repair Kits Membrane For Diaphragm Valve JISI 50 JISR 50 JIFI 50 JIFR 50 Diaphragm Rubber Diaphragm
Diaphragm Repair Kits Membrane For Diaphragm Valve JISI 50 JISR 50 JIFI 50 JIFR 50 Diaphragm Rubber Diaphragm
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: J50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Bags, Cartons, Pallet
Delivery Time: 4-7 Days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Name: Diaphragm Repair Kit Suitable Valves: JISI 50, JISR 50, JIFI 50, JIFR 50
Diaphragm Material: NBR/Buna Mounting Hole Size: φ9mm
Diaphragm Outer Diameter: φ146mm Center Distance: φ146mm
Seat Material: Nylon Seat Outer Diameter: φ85mm
Seat Inner Diameter: φ43mm Bleed Hole: 1
Packaging: Individual Plastic Bag Sealed Size: 2 Inch
High Light:

Joil Diaphragm

,

Joil Pulse Valve Diaphragm

,

Joil Pulse Valve Repair Kit

Diaphragm Repair Kits Membrane For Diaphragm Valve JISI 50 JISR 50 JIFI 50 JIFR 50 Diaphragm Rubber Diaphragm



Pulse valve diaphragm is a kind of flexible mechanism which needs to be opened and closed frequently to control air circulation, and requires good flexibility as well as sealing as high as possible. Therefore, the material of pulse valve diaphragm is directly related to the service life and use effect of pulse valve diaphragm. In other words, the quality of pulse valve diaphragm directly affects the cleaning of pulse bag filter The working stability of the ash system is directly related to the use cost of the dust removal equipment. Generally, the pulse valve diaphragm has the commitment of service life or action times. The use of high-quality pulse valve diaphragm can directly reduce the use cost of the dust removal equipment.



Available Models of Diaphragm Valve Repair Kits For Joil Pulse Valves:



Ordering Code
Type
Quatity
Suitable valve
Material
J20
3/4''
1
JICI 20, JICR 20,
JISI 20, JISR 20
Nitrile/Buna
J25
1''
1
JICI 25, JICR 25,
JISI 25, JISR 25
J40 & JTY-X
1 1/2''
2
JICI 40, JICR 40,
JISI 40, JISR 40,
JIFI 40, JIFR 40
J50 & JTY-X
2''
2
JISI 50, JISR 50,
JIFI 50, JIFR 50
J76 & JTY-X
2 1/2''
2
JISI 65, JISR 65,
JIFI 65, JIFR 65
J89 & JTY-X
3''
2
JISI 80, JISR 80,
JIHI 80, JIHR 80
J102 & JTY-X
4''
2
JIHI 100, JIHR 100




Main dimension of JISI JISR JIFI JIFR Series NBR Diaphragm:



Diaphragm Repair Kits Membrane For Diaphragm Valve JISI 50 JISR 50 JIFI 50 JIFR 50 Diaphragm Rubber Diaphragm 0



Details display of JISI JISR JIFI JIFR Series Valve Diaphragm:



Diaphragm Repair Kits Membrane For Diaphragm Valve JISI 50 JISR 50 JIFI 50 JIFR 50 Diaphragm Rubber Diaphragm 1


Tips: The related solenoid coils and armature assembly are all supplied.



YouTube Video of Diaphragm Repair Kit For Joil Valve:



Factory Production Pictures of Solenoid Valve Diaphragm Kits:

34

12



Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.



2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.



3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.



4. Facbric-reinforced diaphragms advantages:
* No leakage  * No Lubrication  * No Breakaway Force  * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost  * Simple Design  * Versatility



5. EPDM, FKM all available.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
