NBR Nitrile Buna 3 Inch Diaphragm Repair Kit For JISI 80 JISR 80 JIHI 80 JIHR 80 Solenoid Valve

NBR Nitrile Buna 3'' Inch Diaphragm Repair Kit For JISI 80 JISR 80 JIHI 80 JIHR 80 Solenoid Valve

The pulse solenoid valve diaphragm divides the pulse valve into two air chambers. When the pulse solenoid valve is connected with clean compressed air in the dust cleaning system of the pulse bag filter, the compressed air enters the rear air chamber through the throttle hole. At this time, the pressure of the rear air chamber presses the diaphragm against the air outlet of the valve, and the pulse valve is closed. The pulse controller outputs signals to move the armature of the pulse valve, The vent hole of the air chamber behind the valve is opened, and the pressure of the air chamber behind the valve is quickly lost, so that the diaphragm moves backward. The compressed air is injected through the outlet of the valve channel. The pulse valve is in the open state and the injection starts. The electrical signal output by the pulse controller disappears. The armature of the electromagnetic pilot head of the pulse valve is reset. The vent hole of the air chamber behind the valve is closed. The pressure of the air chamber behind the valve increases, so that the diaphragm of the pulse valve is close to the outlet of the valve and the pulse valve In the closed state, the injection stops, and the length of the injection time is controlled by the weight controller.

Available Models of Diaphragm Valve Repair Kits For Joil Pulse Valves:

Main dimension of JISI JISR JIFI JIFR Series NBR Diaphragm:

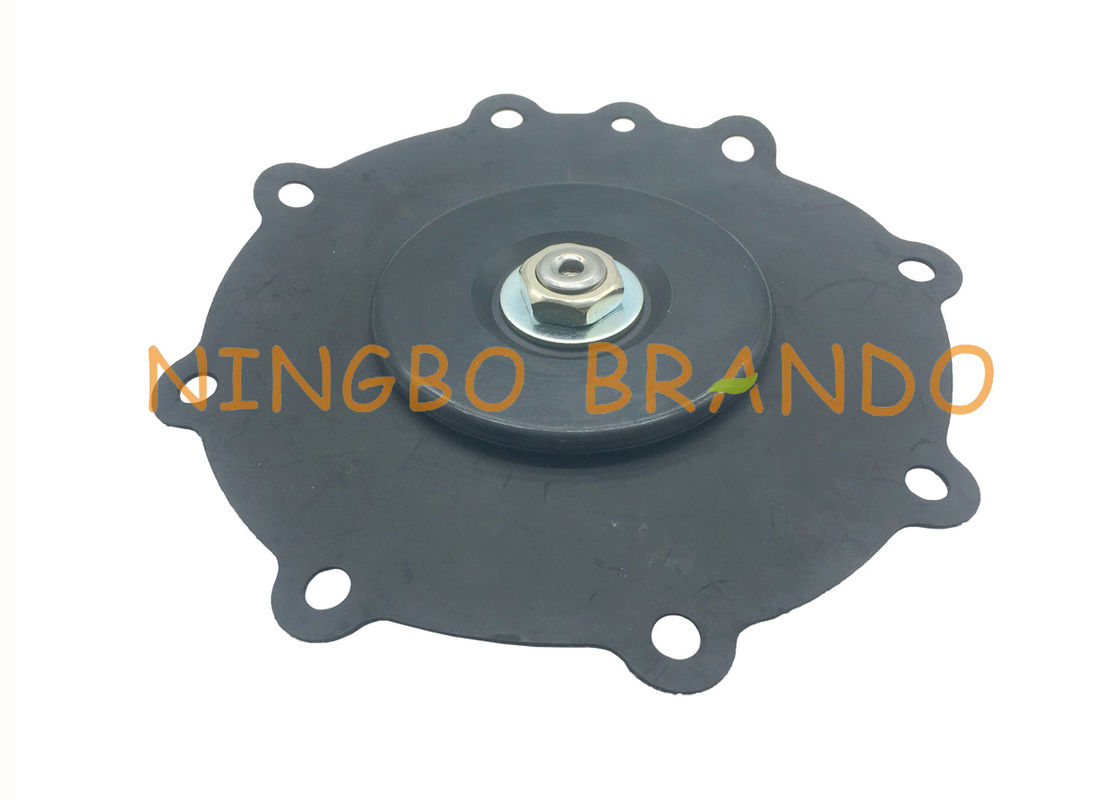

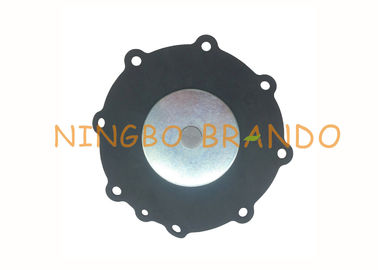

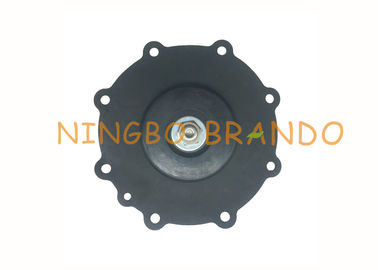

Details display of JISI JISR JIFI JIFR Series Valve Diaphragm:

Tips: The related solenoid coils and armature assembly are all supplied.

YouTube Video of Diaphragm Repair Kit For Joil Valve:

Factory Production Pictures of Solenoid Valve Diaphragm Kits:

Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.

2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.

3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.

4. Facbric-reinforced diaphragms advantages:
* No leakage  * No Lubrication  * No Breakaway Force  * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost  * Simple Design  * Versatility

5. EPDM, FKM all available.
