| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4V420-15 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 to 14 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000pcs per month |
| Port Size: | In= Out= Exhaust= 1/2'' | Action: | Internal Pilot |
|---|---|---|---|
| Valve Type: | 5/2 Way Single Solenoid Valve | Max. Frequency: | 3Cycle/sec |
| Fluid: | Air | Application: | Automation |
| Material: | Aluminum Alloy | Voltage: | AC220V AC110V AC24V DC24V DC12V |
| High Light: | electric solenoid valve,solenoid pneumatic valve |
||

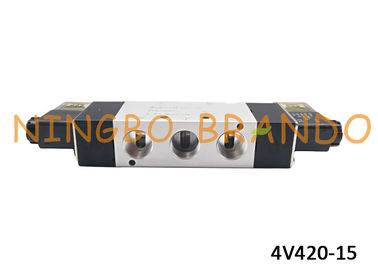

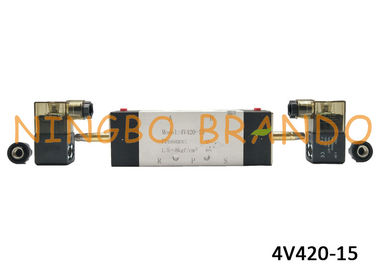

5/2 Way 4V420-15 1/2'' NPT Double Coil Electrical Air Directional Valve Aluminum Body Automation Component
AirTAC Type 400 series double coil pneumatic solenoid valve. Directional control valves are one of the most fundamental parts of hydraulic machinery. They allow fluid flow into different paths from one or more sources. They usually consist of a piston inside a cylinder which is mechanically or electrically controlled. The movement of the cylinder restricts or permits the flow, thus it controls the fluid flow.
Youtube Video of 1/2'' 4V420-15 Pneumatic Solenoid Valve:
Dimension:
Ordering Code:
| Model | 4V | 2(3) Position 5 Way |
| Code | 4 | 400 Series |
| Valve Type | 20 |
10:Single solenoid 5/2 way 20:Double solenoid 5/2 way 30C:Double solenoid 5/3 way closed center 30E:Double solenoid 5/3 way exhaust center 30P:Double solenoid 5/3 way pressure center |
| Port Size | 15 |
M5:M5x0.8 06:1/8'' 08:1/4'' 10:3/8'' 15:1/2'' |
| Voltage | - |
A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V |
| Electrical Entry | - |
Blank:Terminal I:Grommet |
| Thread Type | - |
Blank:PT G:G T:NPT |
Specification:
|
Model
|
4v410-15
|
4V420-15
|
4V430C-15
|
4V430E-15
|
4V430P-15
|
|
Fluid
|
Air(to be filtered by 40 μ m filter element)
|
||||
|
Acting
|
Internal pilot or external pilot
|
||||
|
Port Size
|
In=Out=Exhaust=1/2''
|
||||
|
Orifice Size
|
50.00 mm² (Cv=2.79)
|
30.00 mm² (Cv=1.68)
|
|||
|
Valve Type
|
5 port 2 position
|
5 port 3 position
|
|||
|
Operating Pressure
|
0.15~0.8MPa (21~114psi)
|
||||
|
Proof
|
1.5MPa (215psi)
|
||||
|
Temperature ℃
|
-20 to 70
|
||||
|
Material of Body
|
Aluminum alloy
|
||||
|
Max. frequency
|
3cycle/sec
|
||||
Details:
Product Features:
1. Pilot-oriented mode: Internal pilot or external pilot.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central functionfor your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
6. No need to add oil for lubrication.
7. It is available to form integrated valve group with the base to save installation space.
8. Affiliated manual devices are equipped to facilitate installation and debugging.
9. Several standard voltage grades are optional.
