| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4V410-15 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Port Size: | 1/4'' | Action: | Internally Pilot |
|---|---|---|---|
| Valve Type: | 5/2 Way Single Solenoid Valve | Fluid: | Air (to Be Filtered By 40 μm Filter Element) |
| Max. Frequency: | 3 Cycle/sec | Application: | Automation |
| Body Material: | Aluminum Alloy | Voltage: | AC220V, AC110V, DC24V, DC12V |
| High Light: | Airtac Solenoid Valve,5/2 Way Pneumatic Solenoid Valve,5 Way 2 Position Pneumatic Solenoid Valve |
||

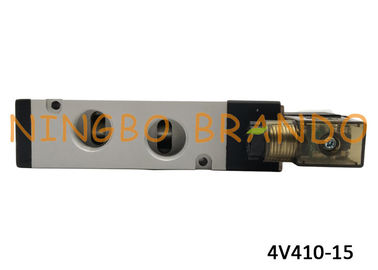

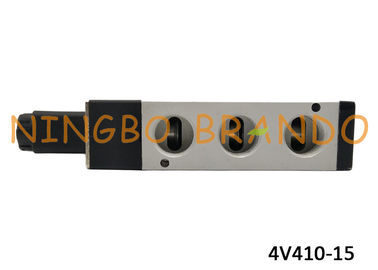

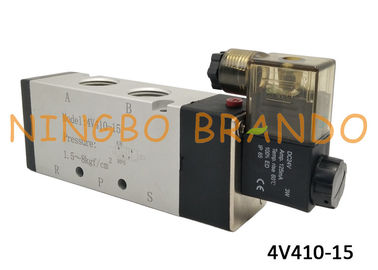

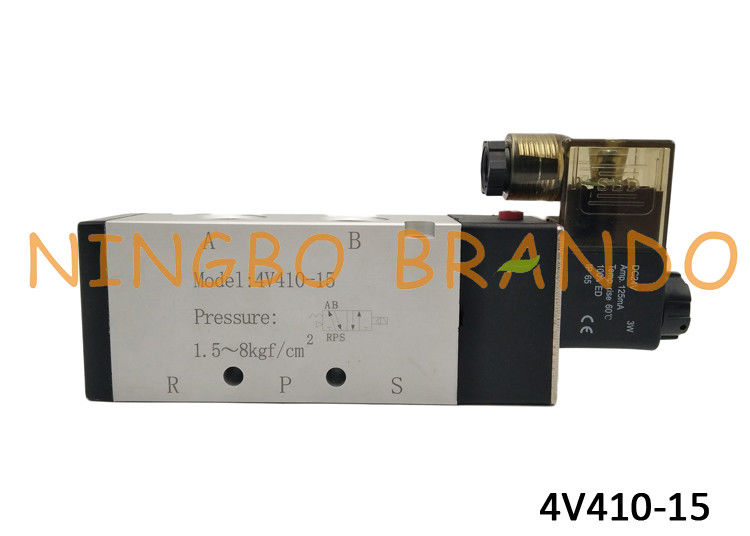

4V410-15 1/2'' 5 Way 2 Position Single Pneumatic Solenoid Valve AirTAC Type 400 Series
Pneumatic Directional valve usually work with pneumatic cylinder. Safety, applicability, lightweight form factor. For remote electric control fluid conduit in the valve opening and closing. With solenoid operated for control appropriate flow and direction, provide great performance. Great body for a long lifespan, perfect for electrically driven pneumatic power control.
Please note that the gas flow direction and the takeover tooth type is correct installation.
Youtube Video of 4V410-15 5/2 Way Single Solenoid Valve:
Dimension:
Ordering Code:
| Model | 4V | 2(3) Position 5 Way |
| Code | 4 | 400 Series |
| Valve Type | 10 |
10:Single solenoid 5/2 way 20:Double solenoid 5/2 way 30C:Double solenoid 5/3 way closed center 30E:Double solenoid 5/3 way exhaust center 30P:Double solenoid 5/3 way pressure center |
| Port Size | 15 |
M5:M5x0.8 06:1/8'' 08:1/4'' 10:3/8'' 15:1/2'' |
| Voltage | - |
A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V |
| Electrical Entry | - |
Blank:Terminal I:Grommet |
| Thread Type | - |
Blank:PT G:G T:NPT |
Specification:
|
Model
|
4v410-15
|
4V420-15
|
4V430C-15
|
4V430E-15
|
4V430P-15
|
|
Fluid
|
Air(to be filtered by 40 μ m filter element)
|
||||
|
Acting
|
Internal pilot or external pilot
|
||||
|
Port Size
|
In=Out=Exhaust=1/2''
|
||||
|
Orifice Size
|
50.00 mm² (Cv=2.79)
|
30.00 mm² (Cv=1.68)
|
|||
|
Valve Type
|
5 port 2 position
|
5 port 3 position
|
|||
|
Operating Pressure
|
0.15~0.8MPa (21~114psi)
|
||||
|
Proof
|
1.5MPa (215psi)
|
||||
|
Temperature ℃
|
-20 to 70
|
||||
|
Material of Body
|
Aluminum alloy
|
||||
|
Max. frequency
|
3cycle/sec
|
||||
Details:
Product Features:
1. Pilot-oriented mode: Internal pilot or external pilot.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. Three position solenoid valves have three kinds of central functionfor your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
6. No need to add oil for lubrication.
7. It is available to form integrated valve group with the base to save installation space.
8. Affiliated manual devices are equipped to facilitate installation and debugging.
9. Several standard voltage grades are optional.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
