| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | ISO、CE |
| Model Number: | VP40 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 7 Working Days |
| Payment Terms: | L/C, T/T, , Western Union |
| Supply Ability: | 100000pcs |
| Material: | Nitrile/Buna | Mounting Hole Size: | 7mm |
|---|---|---|---|
| Diaphragm Outer Distance: | 100mm | Center Distance: | 98mm |
| Air Hole: | With | Packaging: | Individual Sealed |
| Color: | Black | Sealing Gasket OD: | 57mm |
| Sealing Gasket ID: | 27.5mm | Suitable Valve Number: | 1-1/2'' MD140S Diaphragm Valve |
| High Light: | pneumatic valve diaphragm,rubber diaphragm |
||

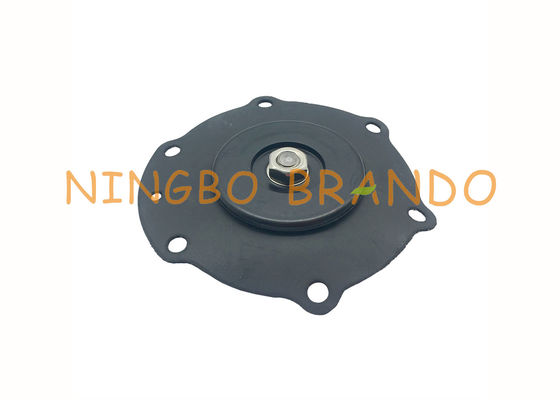

Nitrile NBR Buna Material Diaphragm MD140S 1 1/2'' Dust Collector Pulse Valve Repair Kit For Solenoid Valve
The film is a circular membrane like elastic sensing element. When the two sides of the diaphragm are affected by different pressures (or forces), the diaphragm moves towards the side with low pressure, resulting in a displacement that has a certain relationship with the pressure difference. There are three types of diaphragm: flat diaphragm, vertical chain diaphragm and corrugated diaphragm.
The flat diaphragm can be divided into various forms according to whether the periphery is fixed or not, whether the hole is opened or not, and the stress distribution in the diaphragm area, among which the flat diaphragm is usually composed of circular plates with constant cross-section fixed around. The vertical chain diaphragm consists of a circular plate with a groove near the edge. Its elastic strain mainly occurs at the edge of the circular groove. This kind of diaphragm is often used to compress the strain tube or column to achieve the purpose of pressure measurement.
The hard part of the vertical chain diaphragm is close to translation when it moves under pressure, so it is better to be used in capacitive sensor or piezoelectric sensor. The corrugated diaphragm has ring-shaped concentric ripples. In order to increase the displacement of the diaphragm, two diaphragms can be welded together to form a capsule or several bellows can be connected in series to form a capsule group.
BRANDO is one of leading manufacturers of solenoids, armature assembly, and solenoid valve in China, located in China main sea port city -- NINGBO, the location with high convenience of shipment, not only by air but also by ocean.
Data parameter table:
| model | VP40 |
| diaphragm material | NBR(Buna) |
| mounting hole size | 7mm |
| diaphragm outer diameter | 100mm |
| center distance | 98mm |
| application | 1-1/2'' MD140S pulse valve |
| Sealing gasket OD | 57mm |
| Sealing gasket ID | 27.5mm |
Youtube video of diaphragm repair kit for solenoid valve:
Main dimension
Detail images:
Tips: The related solenoid coils and armature assembly are all supplied.
ODM OEM service
Our production
Packing＆shipping
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Brandon
Tel: +8613454729544
