Name: 2 1/2 Inch Pulse Valve Repair Kit Nitrile NBR Diaphragm For Joil JISI 65 JISR 65 JIFI 65 JIFR 65
Brand: Brando
SKU: J76
Rating: 5 (196 reviews)

Home Products Diaphragm Repair Kit

2 1/2 Inch Pulse Valve Repair Kit Nitrile NBR Diaphragm For Joil JISI 65 JISR 65 JIFI 65 JIFR 65

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	J76

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Plastic Bags, Cartons, Pallet
Delivery Time:	4-7 Days
Payment Terms:	L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Name:	Diaphragm Repair Kit	Suitable Valves:	JISI 65, JISR 65, JIFI 65, JIFR 65
Diaphragm Material:	NBR (Buna)	Mounting Hole Size:	φ10.0mm
Diaphragm Outer Diameter:	φ167.0mm	Center Distance:	φ167.0mm
Seat Material:	NBR (Buna)	Seat Outer Diameter:	φ102.0mm
Seat Inner Diameter:	φ51.0mm	Bleed Hole:	1
Packaging:	Individual Plastic Bag Sealed
High Light:	Joil Diaphragm , Joil Pulse Valve Diaphragm , Joil Pulse Valve Repair Kit

2 1/2'' Pulse Valve Repair Kit Nitrile NBR Diaphragm For Joil JISI 65 JISR 65 JIFI 65 JIFR 65

This NBR (Nitrile) Diaphragm is composed of one buna seat buna diaphragm and one secondary diaphragm. The Diaphragm Kits are used in Joil diaphragm pulse valves JISI 65, JISR 65, JIFI 65, JIFR 65, diaphragm material is Nitrile (NBR), not suitable for strong solvents and chemical fluids, oil resistant. We use high quality material, the collection equipment efficiency can be improved, the energy loss also can be reduced.

YouTube video of Diaphragm Repair Kit For 2.5'' Joil Pulse Valve:

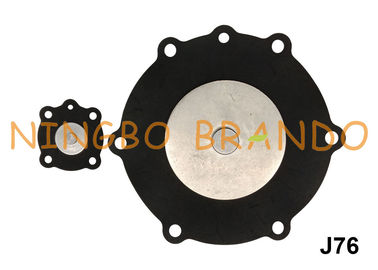

Main dimension of JISI 65 JISR 65 JIFI 65 JIFR 65 NBR Diaphragm:

2 1/2 Inch Pulse Valve Repair Kit Nitrile NBR Diaphragm For Joil JISI 65 JISR 65 JIFI 65 JIFR 65 0

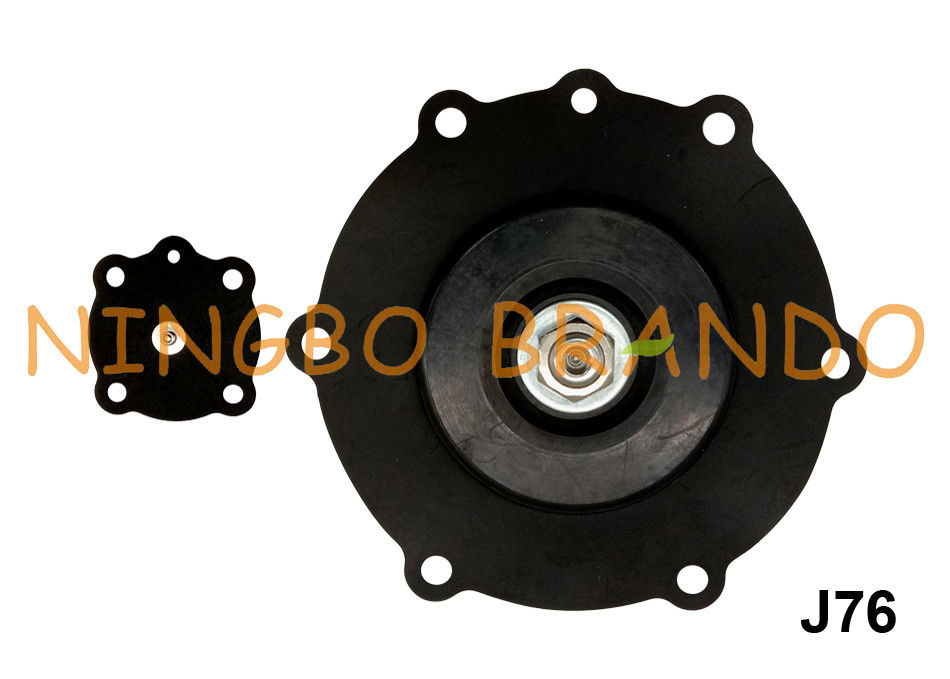

Details display of JISI 65 JISR 65 JIFI 65 JIFR 65 Valve Diaphragm:

2 1/2 Inch Pulse Valve Repair Kit Nitrile NBR Diaphragm For Joil JISI 65 JISR 65 JIFI 65 JIFR 65 1

Available Models of Diaphragm Valve Repair Kits For Joil Pulse Valves:

Ordering Code	Type	Quatity	Suitable valve	Material
J20	3/4''	1	JICI 20, JICR 20, JISI 20, JISR 20	Nitrile/Buna
J25	1''	1	JICI 25, JICR 25, JISI 25, JISR 25
J40 & JTY-X	1 1/2''	2	JICI 40, JICR 40, JISI 40, JISR 40, JIFI 40, JIFR 40
J50 & JTY-X	2''	2	JISI 50, JISR 50, JIFI 50, JIFR 50
J76 & JTY-X	2 1/2''	2	JISI 65, JISR 65, JIFI 65, JIFR 65
J89 & JTY-X	3''	2	JISI 80, JISR 80, JIHI 80, JIHR 80
J102 & JTY-X	4''	2	JIHI 100, JIHR 100

Tips: The related solenoid coils and armature assembly are all supplied.

Factory Production Pictures of Solenoid Valve Diaphragm Kits:

Diaphragm Features:

1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.

2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.

3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.

4. Facbric-reinforced diaphragms advantages:
* No leakage * No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility

5. EPDM, Viton all available.
