| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4V120-06 |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000pcs per month |
| Inlet & Outlet Size: | 1/8'' | Exhaust Size: | 1/8'' |
|---|---|---|---|
| Valve Type: | 5/2 Way Double Solenoid Valve | Action: | Internally Pilot Operated |
| Pressure: | 0.15 To 0.8MPa(21-114psi) | Connector: | DIN Electrical |
| Max. Frequency: | 5 Cycle/sec | Application: | Automation (LIKE Automatic Medical Mask Machine) |
| Material: | Aluminum Alloy | Voltage: | AC220V AC110VDC24V DV12V |
| High Light: | cylinder operated valve,cylinder solenoid valve |
||

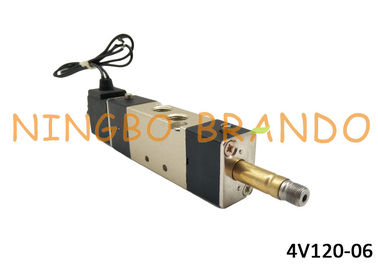

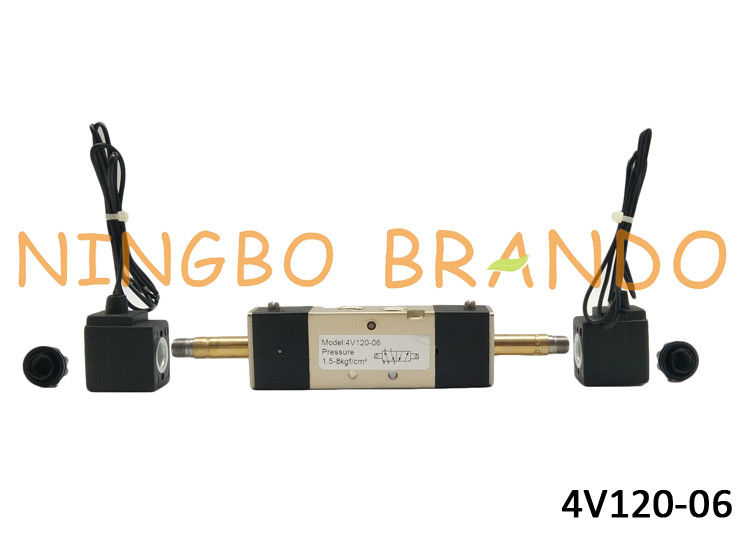

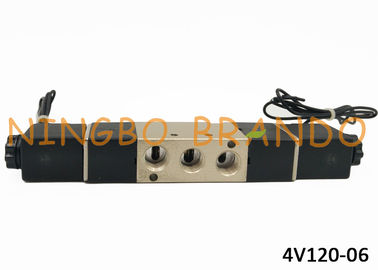

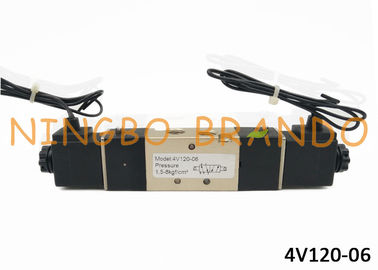

5/2 Way 1/8'' NPT 4V120-06 Internal Pilot Aluminum Alloy Double Solenoid Pneumatic Valve AC220V DC24V
5/2 Way Solenoid Valve applied widely to the pneumatic system and mechanism. Can generally be used to drive the air flow direction of the double-acting mechanical cylinde.
When the 5/2 valve is operated, the spool or poppet inside the valve moves. Compressed air is then directed to the other actuator port. The previously charged line is then opened to atmosphere, thus allowing it to become the exhaust line from the actuator and out to atmosphere.
As the valve shifts, the actuator rod is extended or retracted alternatively; hence the term double acting.
The home position for the actuator (whether it’s an extended or retracted rod or, if a rotary actuator, rotated in one direction or the other) will be determined by the requirements of the air circuit. The 5/2 valve is plumbed to ensure that air is supplied to the appropriate actuator port to achieve the desired rod position when the air valve is at rest.
Ordering Code:
| Model | 4V | 2(3) Position 5 Way |
| Code | 1 | 100 Series |
| Valve Type | 20 |
10:Single solenoid 5/2 way 20:Double solenoid 5/2 way 30C:Double solenoid 5/3 way closed center 30E:Double solenoid 5/3 way exhaust center 30P:Double solenoid 5/3 way pressure center |
| Port Size | 06 |
M5:M5x0.8 06:1/8'' |
| Voltage | - |
A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V |
| Electrical Entry | - |
Blank:Terminal I:Grommet |
| Thread Type | - |
Blank:PT G:G T:NPT |
Specification:
|
Model
|
4V110-06
4V120-06
|
4V130C-06
4V130E-06
4V130P-06
|
4V110-08
4V120-08
|
4V130C-08
4V130E-08
4V130P-08
|
|
Fluid
|
Air(to be filtered by 40 μ m filter element)
|
|||
|
Acting
|
Internal pilot or external pilot
|
|||
|
Port Size
|
In=Out=1/8''
|
In=Out=1/4''
|
||
|
Orifice Size
|
5.5 mm2 (Cv=0.31)
|
5.0 mm2 (Cv=0.28)
|
12.00 mm2 (Cv=0.67)
|
9.00 mm2 (Cv=0.50)
|
|
Valve Type
|
5 port 2 position
|
5 port 3 position
|
5 port 2 position
|
5 port 3 position
|
|
Operating Pressure
|
0.15~0.8MPa (21~114psi)
|
|||
|
Proof Pressure
|
1.5MPa (215psi)
|
|||
|
Temperature ℃
|
-20~70
|
|||
|
Material of Body
|
Aluminum alloy
|
|||
|
Max. frequency
|
5 cycle/sec
|
3 cycle/sec
|
5 cycle/sec
|
3 cycle/sec
|
Overall Dimension:
Details About Double Coil Solenoid Air Control Valve:
Product Features:
1. High-strength aluminum alloy botton cover 2. One-time machining of valve lever by CNC, high precision
3. Valve body was machining by CNC, clean and beautifull
4. spacial processing of inner hole, small friction resistance and low starting pressure
5. High-precision pilot accessories, excitation time of only 0.05 seconds
6. imported seals, the life up to 10 millions of times
7. Aluminum alloy piston is not easy to damage
8. Embedded copper nut not easy to loose
9. with a manual device for installaton and testing
10. Copper coil has avariety of voltage available for selection
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Brandon
Tel: +8613454729544
