Home ProductsSolenoid Valve Diaphragm

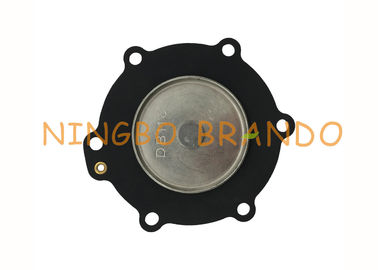

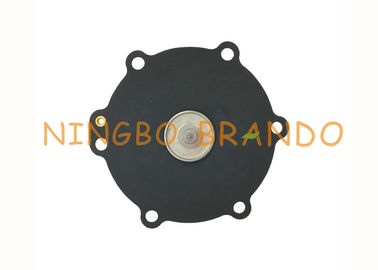

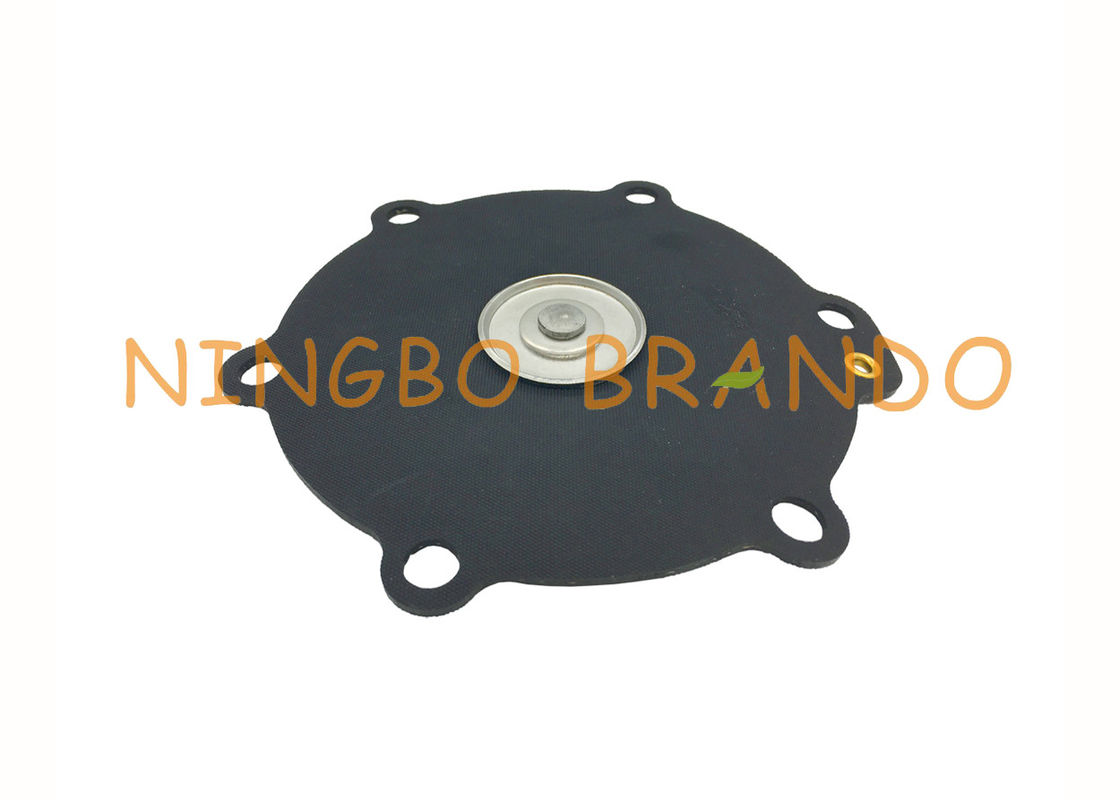

Solenoid Valve Diaphragm Kits DB116 For VNP216 VEM216 VNP416 VEM416 VNP616 VEM616 VNP716 VEM716

Solenoid Valve Diaphragm Kits DB116 For VNP216 VEM216 VNP416 VEM416 VNP616 VEM616 VNP716 VEM716

    • Solenoid Valve Diaphragm Kits DB116 For VNP216 VEM216 VNP416 VEM416 VNP616 VEM616 VNP716 VEM716
    • Solenoid Valve Diaphragm Kits DB116 For VNP216 VEM216 VNP416 VEM416 VNP616 VEM616 VNP716 VEM716
    • Solenoid Valve Diaphragm Kits DB116 For VNP216 VEM216 VNP416 VEM416 VNP616 VEM616 VNP716 VEM716
  • Solenoid Valve Diaphragm Kits DB116 For VNP216 VEM216 VNP416 VEM416 VNP616 VEM616 VNP716 VEM716

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE, ISO
    Model Number: DB116

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Plastic Bags, Cartons, Pallet
    Delivery Time: 4-7 Days
    Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
    Supply Ability: 200000 pcs per month
    Contact Now
    Detailed Product Description
    Diaphragm Material: NBR/Buna Suitable Valves: VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716
    Membrane Material: NBR (Nitrile) Mounting Hole Size: φ11mm
    Diaphragm OD: 144mm Center Distance: φ148mm
    Bleed Hole: 1 Spring: With
    Packaging: Individual Plastic Bag Sealed

    VNP216 VEM216 VNP416 VEM416 VNP616 VEM616 VNP716 VEM716 Diaphragm Kits DB116



    The diaphragm of electromagnetic pulse valve, dust removal valve and injection valve is one of the important components of electromagnetic pulse valve. High quality electromagnetic pulse valve must be equipped with high performance diaphragm. The diaphragm of the electromagnetic pulse valve is in the working state of high-frequency opening and closing for a long time, and the high-quality diaphragm has reliable sealing performance such as effective adhesion and sufficient tensile strength

    Good corrosion resistance and aging resistance.



    As one of the core components of the injection system, diaphragm plays an important role in the pulse injection system. In particular, 12 inch, 14 inch, 16 inch and other large exhaust diameter pulse valves. Since a valve is responsible for cleaning hundreds or even thousands of bags, the service life of the diaphragm directly affects the normal operation of the dust removal system. The quality of the diaphragm is directly related to the interests of customers. High quality pulse valve and diaphragm can bring immeasurable benefits to users. For the benefit of customers, Suzhou Xiechang Environmental Protection Technology Co., Ltd. has long-term cooperation with the world diaphragm manufacturers, adopting the world diaphragm technology. At the same time, the diaphragm body developed by our company does not collide with the valve body directly when the diaphragm body is opened and closed during the pulse valve injection, which greatly enhances the service life of the diaphragm. After repeated performance test and customer's use, it is confirmed that the injection times are more than 1 million and the service life is more than five years.



    Main dimension of Diaphragm For VNP206 VEM206 VNP306 VEM306:



    Solenoid Valve Diaphragm Kits DB116 For VNP216 VEM216 VNP416 VEM416 VNP616 VEM616 VNP716 VEM716





    Available Models of Diaphragm Valve Repair Kits For Mecair Pulse Valves:

    Ordering code
    Fitted valve code
    Valve port size
    Material
    DB16
    VNP206, VEM206, VNP306, VEM306
    3/4''
    Nitrile/Buna
    DB18
    VNP208, VEM208, VNP308, VEM308, VNP408, VEM408, VNP608, VEM608, VNP708, VEM708
    1''
    Nitrile/Buna
    DB112
    VNP212, VEM212, VNP312, VEM312, VNP412, VEM412
    1-1/2''
    Nitrile/Buna
    DB114
    VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714
    1-1/2''
    Nitrile/Buna
    DB116
    VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716
    2''
    Nitrile/Buna
    DB120
    VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720
    2-1/2''
    Nitrile/Buna
    Diaphragm kits typically contain the replacement diaphragm(s) as well as the spring(s). The most popular kits are shown above. If you don't see the kit you need, pls don't hesitate to contact us.



    Tips: The related solenoid coils and armature assembly are all supplied.
