Best-Nr.0200M Solenoid Valve Coil DC24V AC110V AC220V 50Hz 15VA With MPM DIN43650A Connector

Best-Nr.0200M Solenoid Valve Coil DC24V AC110V AC220V 50Hz 15VA With MPM DIN43650A Connector

    • Best-Nr.0200M Solenoid Valve Coil DC24V AC110V AC220V 50Hz 15VA With MPM DIN43650A Connector
    • Best-Nr.0200M Solenoid Valve Coil DC24V AC110V AC220V 50Hz 15VA With MPM DIN43650A Connector
    • Best-Nr.0200M Solenoid Valve Coil DC24V AC110V AC220V 50Hz 15VA With MPM DIN43650A Connector
    • Best-Nr.0200M Solenoid Valve Coil DC24V AC110V AC220V 50Hz 15VA With MPM DIN43650A Connector
  • Best-Nr.0200M Solenoid Valve Coil DC24V AC110V AC220V 50Hz 15VA With MPM DIN43650A Connector

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: BB13241002

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiation
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-7 days
    Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
    Supply Ability: 200000 pcs per month
    Contact Now
    Detailed Product Description
    Name: Best-Nr.0200 Solenoid Coil Enameled Wire Material: Copper
    Voltages: DC24V, AC110V, AC220V Power: 18VA, 15Watt
    Hole Diameter: 13.2mm Coil Height: 41.0mm
    Coil Width: 29.5mm Insulation Class: F, H
    Connector: MPM DIN 43650A Application: Solenoid Valve, Pneumatic Valve, Pulse Valve, Diaphragm Valve
    Protection Class: IP65, IP67, IP68

    Best-Nr.0200M Solenoid Valve Coil DC24V AC110V AC220V 50Hz 15VA With MPM DIN43650A Connector



    This Best-Nr.0200 solenoid coil is widely used in all kind of solenoid valves. A solenoid valve opens and closes when the proper AC or DC voltage is applied to the coil. The coil consists of an enamel coated copper wire winding and usually some magnetically permeable metal frame or housing, which may be visible or contained in molding. There may or may not be a thermal cutoff or fuse in electrical series with the winding. More complex coils have diode bridges that rectify AC to DC power, and even circuits which can control periodic inrush of current. The combination of the copper coil, the magnetically permeable surrounding material, and plunger inside the pressure boundary of the valve are collectively known as the “solenoid”.



    YouTube video of Best-Nr.0200 Solenoid Coil For Solenoid Valve:



    Main dimension of Solenoid Coil With MPM DIN 43650A Connector:

    Best-Nr.0200M Solenoid Valve Coil DC24V AC110V AC220V 50Hz 15VA With MPM DIN43650A Connector

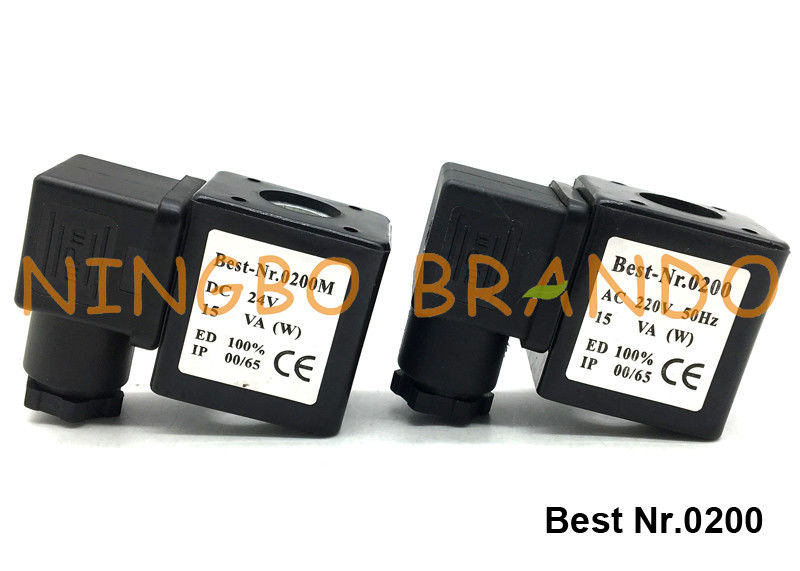

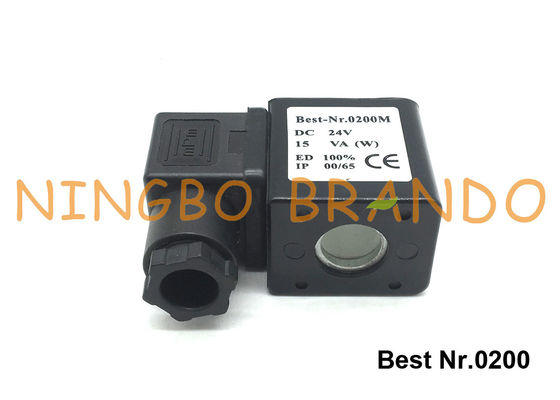

    Product details of DC24V AC220V Best-Nr.0200 Solenoid Valve Coil:

    Best-Nr.0200M Solenoid Valve Coil DC24V AC110V AC220V 50Hz 15VA With MPM DIN43650A Connector



    Technical parameters of Best-Nr.0200 Solenoid Valve Coil:

    Model
    BB13241002
    Name
    Best-Nr.0200
    Hole size
    13.2mm
    Height
    41mm
    Width
    29.5mm
    Voltages
    AC220V, DC24V
    Power
    18VA, 15Watt
    Insulation class
    F, H
    Connector
    DIN 43650A
    Application examples
    Solenoid Valve, Pneumatic Valve, Pulse Valve, Diaphragm Valve



    Brando factory production video of solenoid valve coils:



    Product Characteristic:
    1. Using high quality wire which has UL approved;

    2. Using high quality permeablity magnetic material which contain low carbon;

    3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.

    4. Insulation class can be B, F, H, N, C;

    5. Protection class can be IP65, IP67 & IP69K;

    6. We also offer special coils like ex-proof coils, water proof coils and so on.

    7. If you have special requirement, pls feel free to contact us.



    Environmental Conditions
    Abnormally high or abnormally low ambient temperatures to which a solenoid is exposed for an extended time may cause a solenoid to burn out.



    High Temperature. Coil insulation may be damaged and one layer of wire may short to the next layer. A heat shield or baffle will give some protection against radiated heat. High temperature or oil immersed solenoids are the best protection against heat conducted either through metal surfaces or from surrounding high temperature air.


    Low Temperature. Cold ambient temperatures cause oil to become more viscous, possibly overloading solenoid valve capacity (See Item 9). Mechanical parts of the valve or solenoid structure may distort, causing the valve spool to stick and burn out the solenoid coil. Use an oil more suitable for the low temperature, or use an oil immersed or high temperature coil to handle the greater load imposed by the abnormally low ambient temperature.
