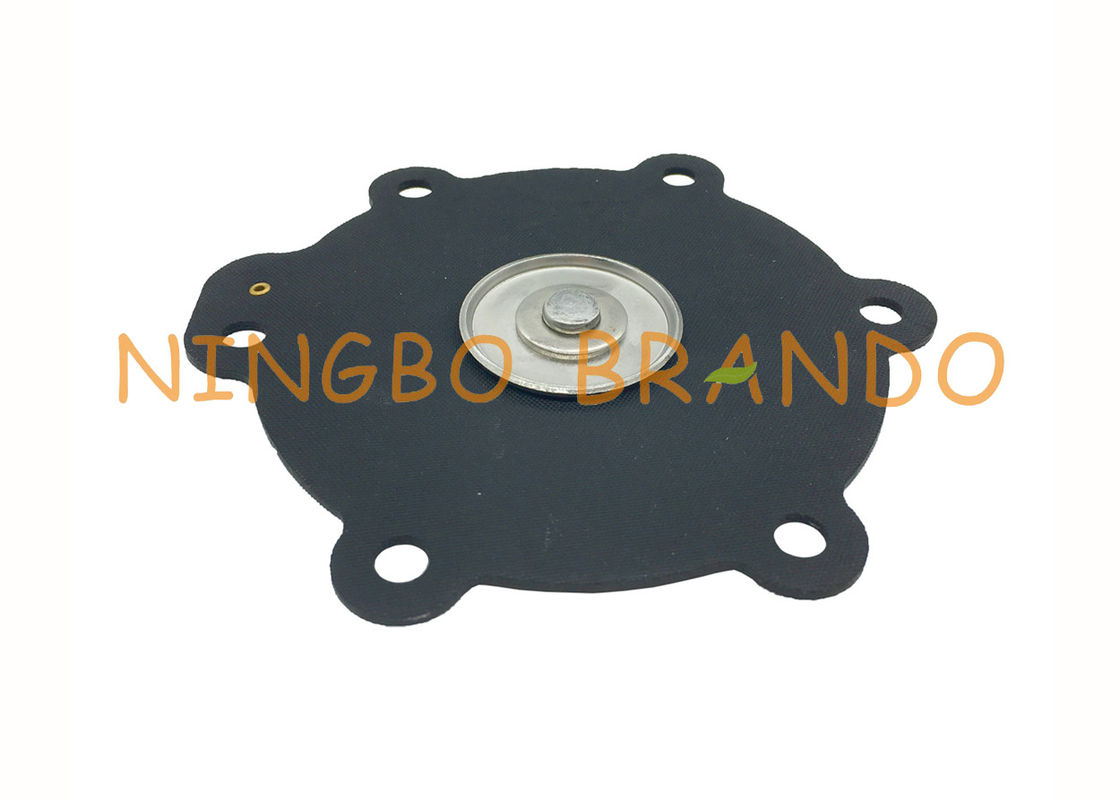

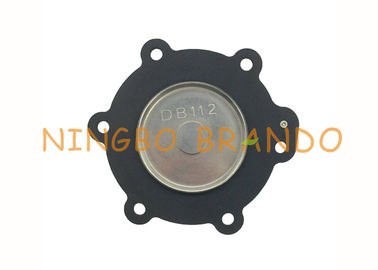

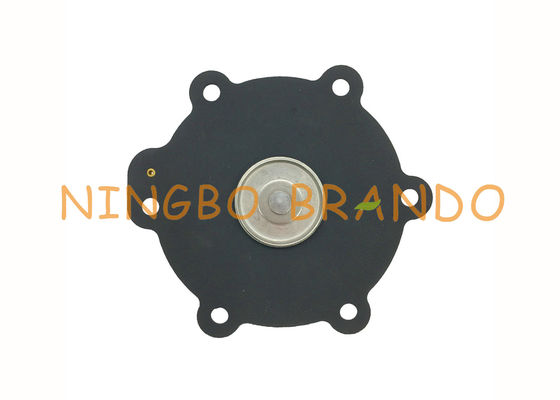

VNP212 VEM212 VNP312 VEM312 VNP412 VEM412 Diaphragm Kits DB112 For Solenoid Valve Diaphragm Valve

VNP212 VEM212 VNP312 VEM312 VNP412 VEM412 Diaphragm Kits DB112 For Solenoid Valve Diaphragm Valve

    • VNP212 VEM212 VNP312 VEM312 VNP412 VEM412 Diaphragm Kits DB112 For Solenoid Valve Diaphragm Valve
    • VNP212 VEM212 VNP312 VEM312 VNP412 VEM412 Diaphragm Kits DB112 For Solenoid Valve Diaphragm Valve
    • VNP212 VEM212 VNP312 VEM312 VNP412 VEM412 Diaphragm Kits DB112 For Solenoid Valve Diaphragm Valve
  • VNP212 VEM212 VNP312 VEM312 VNP412 VEM412 Diaphragm Kits DB112 For Solenoid Valve Diaphragm Valve

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: DB112

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Plastic Bags, Cartons, Pallet
    Delivery Time: 4-7 Days
    Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
    Supply Ability: 200000 pcs per month
    Contact Now
    Detailed Product Description
    Suitable Valves: VNP212, VEM212, VNP312, VEM312, VNP412, VEM412 Membrane Material: NBR (Nitrile)
    Mounting Hole Size: φ8mm Membrane Outer Diameter: φ120mm
    Hole Center Distance: φ116mm Bleed Hole: 1
    Spring: 1 Packaging: Individual Plastic Bag Sealed

    VNP212 VEM212 VNP312 VEM312 VNP412 VEM412 Diaphragm Kits DB112 For Solenoid Valve Diaphragm Valve



    The diaphragm is an important component in the pulse valve on the dust remover. The quality of the diaphragm determines the action of the pulse valve.



    Technical requirements of diaphragm: as the diaphragm of pulse valve is a flexible mechanism that needs to be opened and closed frequently to control air circulation, and requires good flexibility, as well as the highest sealing ability, the material of the diaphragm of pulse valve is directly related to the service life and effect of the diaphragm of pulse valve. In other words, the quality of the diaphragm of pulse valve directly affects the pulse valve The working stability of the dust cleaning system of the bag type dust collector is directly related to the use cost of the dust removal equipment. Generally, the pulse valve diaphragm has the commitment of service life or action times. The use of the pulse valve diaphragm can directly reduce the use cost of the dust removal equipment.



    The specifications of the diaphragm are complete and can also be customized. The diaphragm of pulse valve is a whole piece of rubber diaphragm installed with a rivet head to block the compressed air pipe or the outlet of the valve, a vent unloading hole and a bolt hole for fixing the support around, which is the key control part of the electromagnetic pulse valve.



    Main dimension of Diaphragm For VNP206 VEM206 VNP306 VEM306:



    VNP212 VEM212 VNP312 VEM312 VNP412 VEM412 Diaphragm Kits DB112 For Solenoid Valve Diaphragm Valve





    Available Models of Diaphragm Valve Repair Kits For Mecair Pulse Valves:

    Ordering code
    Fitted valve code
    Valve port size
    Material
    DB16
    VNP206, VEM206, VNP306, VEM306
    3/4''
    Nitrile/Buna
    DB18
    VNP208, VEM208, VNP308, VEM308, VNP408, VEM408, VNP608, VEM608, VNP708, VEM708
    1''
    Nitrile/Buna
    DB112
    VNP212, VEM212, VNP312, VEM312, VNP412, VEM412
    1-1/2''
    Nitrile/Buna
    DB114
    VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714
    1-1/2''
    Nitrile/Buna
    DB116
    VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716
    2''
    Nitrile/Buna
    DB120
    VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720
    2-1/2''
    Nitrile/Buna
    Diaphragm kits typically contain the replacement diaphragm(s) as well as the spring(s). The most popular kits are shown above. If you don't see the kit you need, pls don't hesitate to contact us.



    Tips: The related solenoid coils and armature assembly are all supplied.
