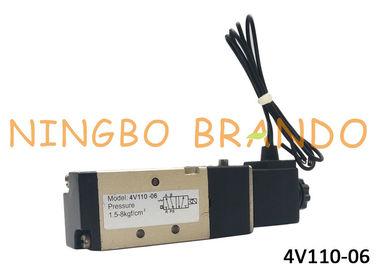

4V110-06 AirTAC Type 1/8" Threaded Single Solenoid Valve For Fully Automatic Face Production Line

4V110-06 AirTAC Type 1/8" Threaded Single Solenoid Valve For Fully Automatic Face Production Line

4V110-06 Pneumatic solenoid valve, Widely used in automation machine, such us medical use, food processing, dusty environments, explosive environments etc. When the electrical part is charged, the electromagnetic coil generates electromagnetic force to lift the closing member from the sealed air hole, and the compressed air enters the pilot valve, and the pilot valve works; when the power is turned off, the electromagnetic force disappears, and the valve action is reversed; Pneumatic actuator performs the joint action of the pilot valve piston and the spring at the other end of the main piston rod to complete the switch of two positions and five links.

Youtube Video About AirTac Type Pneumatic Solenoid Valve:

Dimension of 4V110-06:

Technical Data:

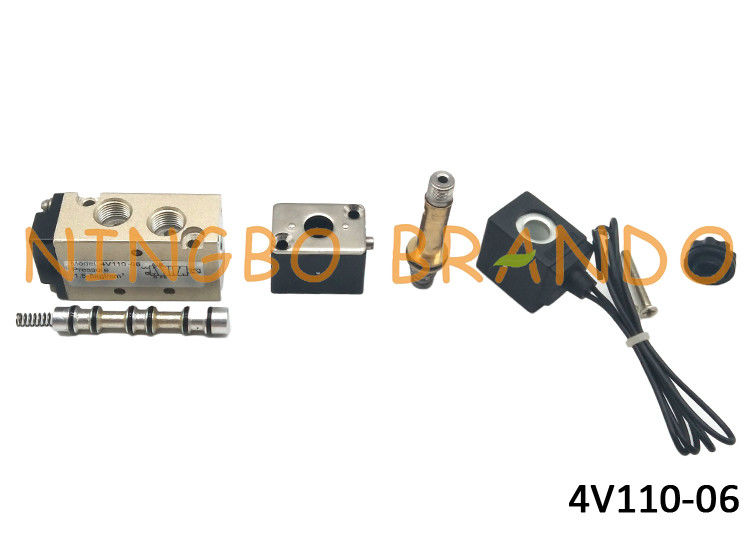

Deconstruction:

Details About 5/2 Way Air Control Pneumatic Valve:

Features of 4V110-06 Pneumatic Air Control Valve:
1. Pilot-oriented moda:lntarnal pilot or external pilot.
2. Structure in sliding column mode: good tightness and sensitive reaction.
3. T hree position solenoid valves have three kinds of central function for your choice.
4. Double control solenoid valves have memory function.
5. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life.
6. No need to add oil for lubrication.
7. It is available to form integrated valve group with the base to save installation space.
8. Affiliated manual devices are equipped to facilitate Installation and debugging.
9. Several standard voltage grades are optional.

Maintenance matters needing attention:

5/2 Way solenoid valve

a. The piston rod must be flexible. Manual test, it is easy to press the piston rod. After the hand is released, the piston rod can automatically return to the original position before the button is pressed. If it cannot be ejected automatically, please clean the dust inside the valve body and the piston rod and treat it with high-quality lubricant to ensure the piston rod can move freely.

b. Pilot valve pistons must be able to move easily and freely, like the piston rods.

c. The gas path for the normal operation of the pilot valve must be unobstructed. Those who are not smooth can comb the gas path to ensure that the gas path is unobstructed.

d. The solenoid is energized under normal conditions. The closing part should be lifted and there should be a sound of pickup. If it is abnormal to check whether the coil is burnt or not and there are debris inside the closing part, measure and clean the debris to deal with it.
