NBR Nitrile Buna DB16 3/4" Solenoid Valve Diaphragm Repair Kit For VNP206 VEM206 VNP306 VEM306

NBR Nitrile Buna DB16 3/4" Solenoid Valve Diaphragm Repair Kit For VNP206 VEM206 VNP306 VEM306

    • NBR Nitrile Buna DB16 3/4" Solenoid Valve Diaphragm Repair Kit For VNP206 VEM206 VNP306 VEM306
    • NBR Nitrile Buna DB16 3/4" Solenoid Valve Diaphragm Repair Kit For VNP206 VEM206 VNP306 VEM306
    • NBR Nitrile Buna DB16 3/4" Solenoid Valve Diaphragm Repair Kit For VNP206 VEM206 VNP306 VEM306
  • NBR Nitrile Buna DB16 3/4" Solenoid Valve Diaphragm Repair Kit For VNP206 VEM206 VNP306 VEM306

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: DB16

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Plastic Bags, Cartons, Pallet
    Delivery Time: 4-7 Days
    Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
    Supply Ability: 200000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: DB16 Diaphragm Repair Kit Suitable Valves: VNP206, VEM206, VNP306, VEM306
    Membrane Material: NBR (Nitrile) Mounting Hole Size: φ6mm
    Membrane Outer Diameter: φ62mm Hole Center Distance: φ66.5mm
    Bleed Hole: 1 Spring: 1
    Packaging: Individual Plastic Bag Sealed

    NBR Nitrile Buna DB16 3/4'' Solenoid Valve Diaphragm Repair Kit For VNP206 VEM206 VNP306 VEM306

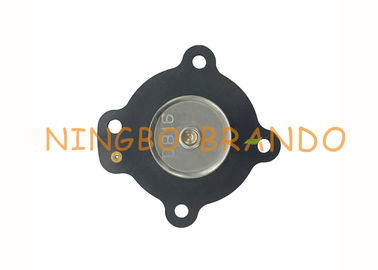

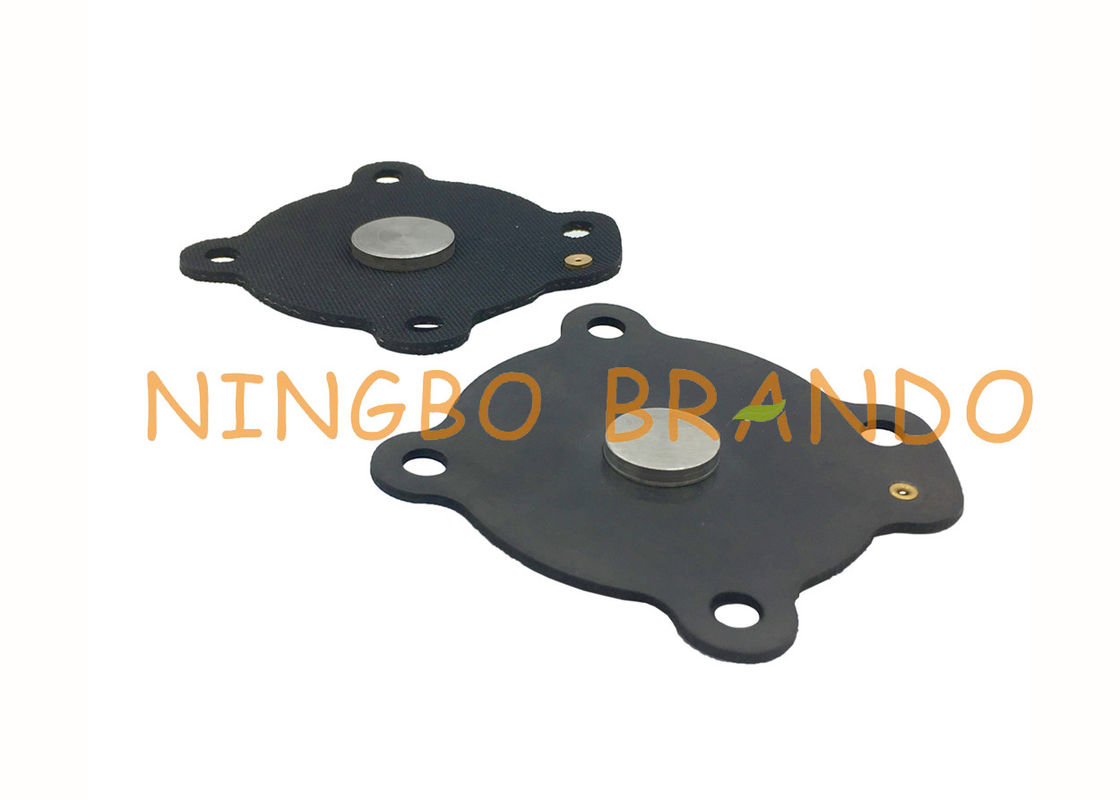

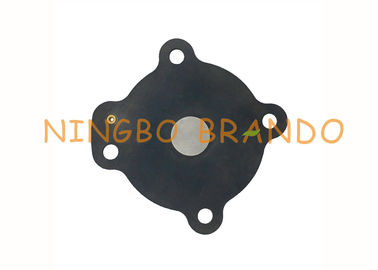

    This is DB16 diaphragm repair kit for Mecair 3/4'' VNP206, VEM206, VNP306, VEM306 pulse valves. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.



    The wholse series diaphragms includes DB16, DB18, DB112, DB114, DB116, DB120. If you have interests in other diaphragm repair kits, pls feel free to contact me, thanks.



    Features
    1. A rubber body to protect from corrosion
    2. Compact size for ease of installation
    3. Robust Dust cleaning ability
    4. Excellent Open/close durability to withstand consistent cycles of opening and closing.



    Production description:



    1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power. 2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity. 3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength. 4. Facbric-reinforced diaphragms advantages: *No leakage *No Lubrication * No Breakaway Force * No Friction * Functionality Over Wide Pressure Ranges * High Strength * Low Cost * Simple Design * Versatility 5. EPDM, FKM all available.



    Main dimension of Diaphragm For VNP206 VEM206 VNP306 VEM306:



    NBR Nitrile Buna DB16 3/4" Solenoid Valve Diaphragm Repair Kit For VNP206 VEM206 VNP306 VEM306





    Available Models of Diaphragm Valve Repair Kits For Mecair Pulse Valves:

    Ordering code
    Fitted valve code
    Valve port size
    Material
    DB16
    VNP206, VEM206, VNP306, VEM306
    3/4''
    Nitrile/Buna
    DB18
    VNP208, VEM208, VNP308, VEM308, VNP408, VEM408, VNP608, VEM608, VNP708, VEM708
    1''
    Nitrile/Buna
    DB112
    VNP212, VEM212, VNP312, VEM312, VNP412, VEM412
    1-1/2''
    Nitrile/Buna
    DB114
    VNP214, VEM214, VNP314, VEM314, VNP414, VEM414, VNP614, VEM614, VNP714, VEM714
    1-1/2''
    Nitrile/Buna
    DB116
    VNP216, VEM216, VNP416, VEM416, VNP616, VEM616, VNP716, VEM716
    2''
    Nitrile/Buna
    DB120
    VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM720
    2-1/2''
    Nitrile/Buna
    Diaphragm kits typically contain the replacement diaphragm(s) as well as the spring(s). The most popular kits are shown above. If you don't see the kit you need, pls don't hesitate to contact us.



    Tips: The related solenoid coils and armature assembly are all supplied.



    YouTube video of Diaphragm Repair Kit For Mecair Pulse Valve:



    Factory Production Pictures of Solenoid Valve Diaphragm Kits:

    34

    12



    Focus on your demands, Offer you best solution:



    √ Contact us if some points you have doubt

    √ Contact us if somewhere need to change
    √ Contact us if not the one you are looking for

    √ Contact us if you are doing designing



    Welcome to your any question and inquiry!
