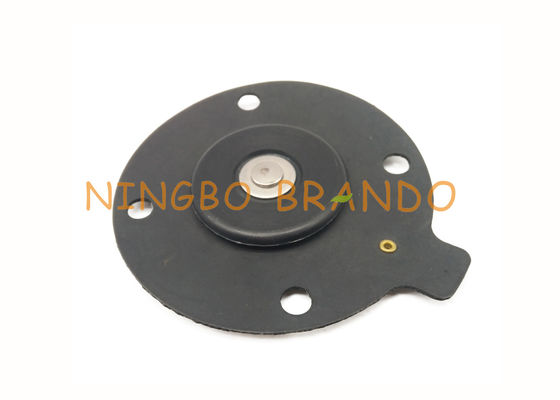

DMF-Z-20 DMF-ZM-20 Pneumatic Valve Diaphragm For Dust Collector Air Valve SBFEC Type 3/4 Inch FKM

DMF-Z-20 DMF-ZM-20 Pneumatic Valve Diaphragm For Dust Collector Air Valve SBFEC Type 3/4 Inch FKM

    • DMF-Z-20 DMF-ZM-20 Pneumatic Valve Diaphragm For Dust Collector Air Valve SBFEC Type 3/4 Inch FKM
    • DMF-Z-20 DMF-ZM-20 Pneumatic Valve Diaphragm For Dust Collector Air Valve SBFEC Type 3/4 Inch FKM
    • DMF-Z-20 DMF-ZM-20 Pneumatic Valve Diaphragm For Dust Collector Air Valve SBFEC Type 3/4 Inch FKM
  • DMF-Z-20 DMF-ZM-20 Pneumatic Valve Diaphragm For Dust Collector Air Valve SBFEC Type 3/4 Inch FKM

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE, ISO
    Model Number: D20A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiation
    Packaging Details: Plastic Bags, Cartons, Pallet
    Delivery Time: 4-7 Days
    Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
    Supply Ability: 200000 pcs per month
    Contact Now
    Detailed Product Description
    Diaphragm Material: NBR/Buna Diaphragm Seat Material: Nylon
    Suitable Valve Number: DMF-Z-20, MF-Z-20, DMF-Y-20, MF-Y-20, DMF-T-20, MF-T-20 Mounting Hole Size: 6.5mm
    Diaphragm Outer Distance: 80mm Center Distance: 66mm
    Diaphragm Seat OD: 40mm Diaphragm Seat ID: 18mm
    Spring: With Packaging: Individual Sealed

    DMF-Z-20 DMF-ZM-20 Pneumatic Valve Diaphragm For Dust Collector Air Valve Pneumatic Actuator 3/4 Inch FKM



    Dmf-20 bag with pulse valve plate is one of the accessories for the normal operation of the valve body while the "switch" of the air injection circuit of the dust cleaning system of the pulse bag filter. On the basis of the previous experience in the production of solenoid valve diaphragm with dmf-20 bag and pulse valve, absorbing and summarizing the advantages of materials and production technology of similar products at home and abroad, a new improved solenoid valve diaphragm has been developed, Pulse valve diaphragm, the electromagnetic pulse valve diaphragm is suitable for the production of electromagnetic pulse valve diaphragm rubber plate, with strong oil resistance, acid resistance, high temperature resistance, alkali resistance and other characteristics, it can easily ensure the synchronous operation with other control components, control the pulse compressed air injection. Even in the extremely bad working environment, it can guarantee its normal operation and long service life. At the ambient temperature of - 20-80 ℃ and the working pressure difference of 0.8MPa, the working life of the diaphragm is not less than 1 million times.



    Main dimension of BFEC Replacement Diaphragm Repair Kits:

    DMF-Z-20 DMF-ZM-20 Pneumatic Valve Diaphragm For Dust Collector Air Valve SBFEC Type 3/4 Inch FKM



    Available Models of SBFEC Type DMF/MF Diaphragm Valve Repair Kits:



    Ordering Code
    Fitted Valve Code
    Port Size
    DTY
    MF/DMF-T-25S, MF/DMF-T-40S, MF/DMF-T-50S, MF/DMF-T-62S,
    MF/DMF-ZM-40S, MF/DMF-Y-40S, MF/DMF-Y-50S, MF/DMF-Y-62S,
    MF/DMF-Y-76S, MF/DMF-YA-76S, MF/DMF-YB-76S, MF/DMF-Y-102S,
    MF/DMF-Y-102SA, MF/DMF-Y-102SE, MF/DMF-ZF-40S, MF/DMF-Z-40S,
    MF/DMF-Z-50S, MF/DMF-Z-62S, MF/DMF-Z-76S, MF/DMF-Z-102S
    Tip: Secondary Diaphragm
    D20A
    DMF-Z-20, MF-Z-20, DMF-ZM-20, MF-ZM-20
    3/4''
    D25
    DMF-Z-25, MF-Z-25, DMF-ZM-25, MF-ZM-25,
    DMF-ZF-25, MF-ZF-25, DMF-Y-25, MF-Y-25,
    DMF-T-20, MF-T-20
    3/4'' & 1''
    D40
    DMF-Z-40S, MF-Z-40S, DMF-Y-40S, MF-Y-40S,
    DMF-ZF-40S, MF-ZF-40S, DMF-ZM-40S, MF-ZM-40S,
    DMF-T-25S, MF-T-25S
    1'' & 1-1/2''
    D50
    DMF-Z-50S, MF-Z-50S, DMF-Y-50S, MF-Y-50S,
    DMF-T-50S, MF-T-50S
    2''
    D62
    DMF-Z-62S, MF-Z-62S, DMF-Y-62S, MF-Y-62S
    2-1/2''
    D76
    DMF-Z-76S, MF-Z-76S, DMF-Y-76S, MF-Y-76S
    3''
    D102
    DMF-Z-102S, MF-Z-102S, DMF-Y-102S, MF-Y-102S
    4''
    D102A
    DMF-Y-102SA, MF-Y-102SA
    4''
    DZL-20B
    DMF-ZL-B, MF-ZL-B
    3/4''

    Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.



    Application Examples:



    DMF-Z-20 DMF-ZM-20 Pneumatic Valve Diaphragm For Dust Collector Air Valve SBFEC Type 3/4 Inch FKM



    YouTube video of SBFEC Type NBR Diaphragm Valve Repair Kit:





    Factory Production Pictures of Solenoid Valve Diaphragm Kits:
