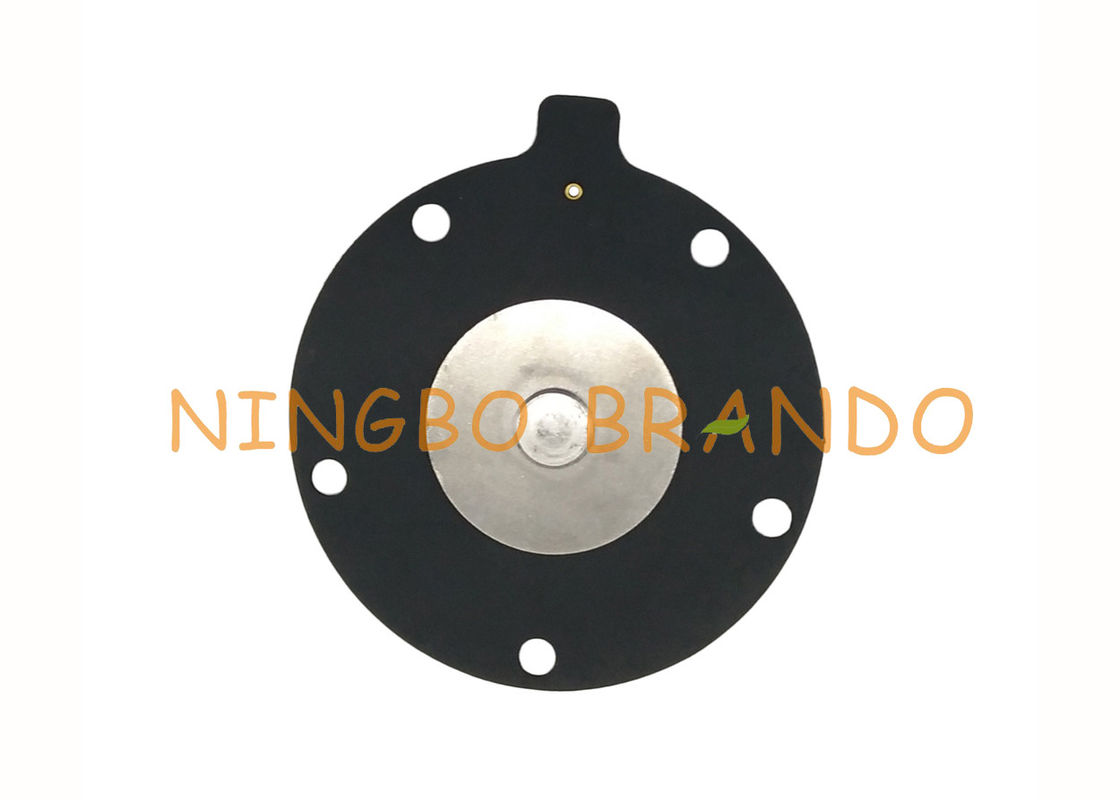

Name: DMF-Z-25 DMF-ZM-25 Pneumatic Valve Diaphragm For Dust Collector Solenoid Valve 1 Inch FKM SBFEC Type
Brand: Brando
SKU: D25
Rating: 5 (180 reviews)

Home Products Diaphragm Repair Kit

DMF-Z-25 DMF-ZM-25 Pneumatic Valve Diaphragm For Dust Collector Solenoid Valve 1 Inch FKM SBFEC Type

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE, ISO
Model Number:	D25

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Plastic Bags, Cartons, Pallet
Delivery Time:	4-7 Days
Payment Terms:	L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Diaphragm Material:	NBR/Buna	Diaphragm Seat Material:	Nylon
Suitable Valve Number:	DMF-Z-25, MF-Z-25, DMF-Y-25, MF-Y-25, DMF-T-25, MF-T-25	Mounting Hole Size:	6.5mm
Diaphragm Outer Distance:	94.5mm	Center Distance:	66mm
Diaphragm Seat OD:	46mm	Diaphragm Seat ID:	27.5mm
Spring:	With	Packaging:	Individual Sealed
High Light:	pneumatic valve diaphragm , rubber diaphragm

DMF-Z-25 DMF-ZM-25 Pneumatic Valve Diaphragm For Dust Collector Air Valve Pneumatic Actuator 1 Inch FKM

This is replacement diaphragm kits for the SBFEC 1'' DMF-Z-25 MF-Z-25 DMF-ZM-25 MF-ZM-25 pulse valves. This kit includes the standard wearing parts of the valve for field replacement.

By registering for a customized catalog, Brando offers a fast and easy way to order your replacements parts. We'll take your system specifications and create a catalog based on your system making it a breeze to find the right products for your installation.

Dmf-z-25 bag is equipped with pulse valve diaphragm structure and performance: it is composed of single or multi-layer glued on both sides, and there are also rubber free fabrics. According to its shape, the membrane pressing method is used. According to the use requirements can be made of different rubber, different fabrics of the diaphragm. The properties of NBR and polysulfide rubber blends for diaphragms, the properties of the rubber compounds for the dish diaphragms (often called diaphragms) with canvas, and some silicone rubber, fluororubber and chlorohydrin rubber diaphragms developed in recent year

Main dimension of BFEC Replacement Diaphragm Repair Kits:

DMF-Z-25 DMF-ZM-25 Pneumatic Valve Diaphragm For Dust Collector Solenoid Valve 1 Inch FKM SBFEC Type 0

Available Models of SBFEC Type DMF/MF Diaphragm Valve Repair Kits:

Ordering Code	Fitted Valve Code	Port Size
DTY	MF/DMF-T-25S, MF/DMF-T-40S, MF/DMF-T-50S, MF/DMF-T-62S, MF/DMF-ZM-40S, MF/DMF-Y-40S, MF/DMF-Y-50S, MF/DMF-Y-62S, MF/DMF-Y-76S, MF/DMF-YA-76S, MF/DMF-YB-76S, MF/DMF-Y-102S, MF/DMF-Y-102SA, MF/DMF-Y-102SE, MF/DMF-ZF-40S, MF/DMF-Z-40S, MF/DMF-Z-50S, MF/DMF-Z-62S, MF/DMF-Z-76S, MF/DMF-Z-102S	Tip: Secondary Diaphragm
D20A	DMF-Z-20, MF-Z-20, DMF-ZM-20, MF-ZM-20	3/4''
D25	DMF-Z-25, MF-Z-25, DMF-ZM-25, MF-ZM-25, DMF-ZF-25, MF-ZF-25, DMF-Y-25, MF-Y-25, DMF-T-20, MF-T-20	3/4'' & 1''
D40	DMF-Z-40S, MF-Z-40S, DMF-Y-40S, MF-Y-40S, DMF-ZF-40S, MF-ZF-40S, DMF-ZM-40S, MF-ZM-40S, DMF-T-25S, MF-T-25S	1'' & 1-1/2''
D50	DMF-Z-50S, MF-Z-50S, DMF-Y-50S, MF-Y-50S, DMF-T-50S, MF-T-50S	2''
D62	DMF-Z-62S, MF-Z-62S, DMF-Y-62S, MF-Y-62S	2-1/2''
D76	DMF-Z-76S, MF-Z-76S, DMF-Y-76S, MF-Y-76S	3''
D102	DMF-Z-102S, MF-Z-102S, DMF-Y-102S, MF-Y-102S	4''
D102A	DMF-Y-102SA, MF-Y-102SA	4''
DZL-20B	DMF-ZL-B, MF-ZL-B	3/4''
