    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE, ISO
    Model Number: BDTY

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiation
    Packaging Details: Plastic Bags, Cartons, Pallet
    Delivery Time: 4-7 Days
    Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
    Supply Ability: 200000 pcs per month
    Contact Now
    Detailed Product Description
    Diaphragm Material: NBR/Buna Suitable Valve Number: DMF Series
    Mounting Hole Size: 5mm Diaphragm Outer Distance: 65.5mm
    Center Distance: 54mm Spring: With
    Packaging: Individual Sealed Suitable Valve: DMF-T/Y/Z-40S DMF-T/Y/Z-50S DMF-T/Y/Z/-62S

    DMF Series Universal Diaphragm Pneumatic Valve For Dust Collector Air Valve Pneumatic Actuator Nylon Seat NBR Nitrile



    This is replacement diaphragm kits for the SBFEC Secondary Diaphragm pulse valves. This kit includes the standard wearing parts of the valve for field replacement.



    By registering for a customized catalog, Brando offers a fast and easy way to order your replacements parts. We'll take your system specifications and create a catalog based on your system making it a breeze to find the right products for your installation.

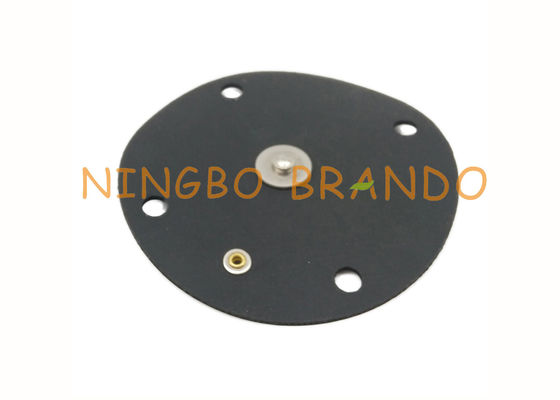

    DMF pulse valve diaphragm is a whole rubber diaphragm which is installed with riveting head to block compressed air pipe or air outlet of the valve, air discharge and unloading hole and bolt hole for fixing support around. It is the key control part of the electromagnetic pulse valve. It is composed of single or multi-layer glued on both sides. There are also rubber free fabrics. According to its shape, the membrane pressing method is used. According to the use requirements can be made of different rubber, different fabrics of the diaphragm. The properties of NBR and polysulfide rubber blends for diaphragms, the properties of the rubber compounds for the dish diaphragms (often called diaphragms) with canvas, and some silicone rubber, fluororubber and chlorohydrin rubber diaphragms developed in recent years



    Main dimension of BFEC Replacement Diaphragm Repair Kits:

    DMF Series Universal Diaphragm Kits For Dust Collector Air Valve Pneumatic Actuator Nylon Seat NBR Nitrile



    Available Models of SBFEC Type DMF/MF Diaphragm Valve Repair Kits:



    Ordering Code
    Fitted Valve Code
    Port Size
    DTY
    MF/DMF-T-25S, MF/DMF-T-40S, MF/DMF-T-50S, MF/DMF-T-62S,
    MF/DMF-ZM-40S, MF/DMF-Y-40S, MF/DMF-Y-50S, MF/DMF-Y-62S,
    MF/DMF-Y-76S, MF/DMF-YA-76S, MF/DMF-YB-76S, MF/DMF-Y-102S,
    MF/DMF-Y-102SA, MF/DMF-Y-102SE, MF/DMF-ZF-40S, MF/DMF-Z-40S,
    MF/DMF-Z-50S, MF/DMF-Z-62S, MF/DMF-Z-76S, MF/DMF-Z-102S
    Tip: Secondary Diaphragm
    D20A
    DMF-Z-20, MF-Z-20, DMF-ZM-20, MF-ZM-20
    3/4''
    D25
    DMF-Z-25, MF-Z-25, DMF-ZM-25, MF-ZM-25,
    DMF-ZF-25, MF-ZF-25, DMF-Y-25, MF-Y-25,
    DMF-T-20, MF-T-20
    3/4'' & 1''
    D40
    DMF-Z-40S, MF-Z-40S, DMF-Y-40S, MF-Y-40S,
    DMF-ZF-40S, MF-ZF-40S, DMF-ZM-40S, MF-ZM-40S,
    DMF-T-25S, MF-T-25S
    1'' & 1-1/2''
    D50
    DMF-Z-50S, MF-Z-50S, DMF-Y-50S, MF-Y-50S,
    DMF-T-50S, MF-T-50S
    2''
    D62
    DMF-Z-62S, MF-Z-62S, DMF-Y-62S, MF-Y-62S
    2-1/2''
    D76
    DMF-Z-76S, MF-Z-76S, DMF-Y-76S, MF-Y-76S
    3''
    D102
    DMF-Z-102S, MF-Z-102S, DMF-Y-102S, MF-Y-102S
    4''
    D102A
    DMF-Y-102SA, MF-Y-102SA
    4''
    DZL-20B
    DMF-ZL-B, MF-ZL-B
    3/4''

    Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.



    Application Examples:



    DMF Series Universal Diaphragm Kits For Dust Collector Air Valve Pneumatic Actuator Nylon Seat NBR Nitrile



    YouTube video of SBFEC Type NBR Diaphragm Valve Repair Kit:





    Factory Production Pictures of Solenoid Valve Diaphragm Kits:



    34

    12



    Focus on your demands, Offer you best solution:



    √ Contact us if some points you have doubt

    √ Contact us if somewhere need to change
    √ Contact us if not the one you are looking for

    √ Contact us if you are doing designing



    Welcome to your any question and inquiry!
