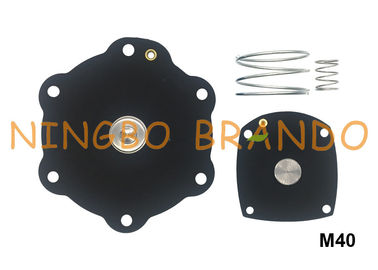

M40 M25 1 1/2" Diaphragm Valve Repair Kit For Turbo FP40 FM40 DP40 DM40 EP40 EM40

M40 M25 1 1/2" Diaphragm Valve Repair Kit For Turbo FP40 FM40 DP40 DM40 EP40 EM40

  • M40 M25 1 1/2" Diaphragm Valve Repair Kit For Turbo FP40 FM40 DP40 DM40 EP40 EM40
  • M40 M25 1 1/2" Diaphragm Valve Repair Kit For Turbo FP40 FM40 DP40 DM40 EP40 EM40
M40 M25 1 1/2" Diaphragm Valve Repair Kit For Turbo FP40 FM40 DP40 DM40 EP40 EM40
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: M40
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Plastic Bags, Cartons, Pallet
Delivery Time: 4-7 Days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Product Name: M40 Diaphragm Repair Kit Suitable Valves: 1 1/2'' FP40, FM40, DP40, DM40, EP40, EM40
Diaphragm Material: NBR (Buna) Mounting Hole Size: φ8.5mm
Diaphragm Outer Diameter: φ122mm Center Distance: φ122mm
Bleed Hole: 1 Spring: 2
Packaging: Individual Plastic Bag Sealed
High Light:

Turbo Diaphragm

,

Turbo Pulse Valve Diaphragm

,

Turbo Pulse Valve Repair Kit

M40 + M25 1 1/2'' Diaphragm Valve Repair Kit For Turbo FP40 FM40 DP40 DM40 EP40 EM40



M40 & M40V Diaphragm Repair Kit is suitablr to the 1 1/2'' FM45, FP45, DM45 & DP45 Turbo Valves. There are two kinds of materials for this diaphragm, one is Nitrile and the other is Viton, Nitrile is generally used, Viton is resistant to high temperature and the price is slightly higher.



The M40 Kit is the Nitrile Kit, for use with standard temperature applications

The M40V Kit is the Viton Kit, for use with high temperature applications



1. Fluids: Non-lubricated filtered air.
2. Operating temperature: Nitrile diaphragm (-20°C; +80°C), Viton diaphragm (-20°C; +200°C)
3. Operating pressure: Between 0.5 and 7.5 bar



YouTube video of M40 Diaphragm Repair Kit For 1.5'' Turbo Pulse Valve:



Main dimension of FP40, FM40, DP40, DM40, EP40, EM40 Valve Diaphragm:

M40 M25 1 1/2" Diaphragm Valve Repair Kit For Turbo FP40 FM40 DP40 DM40 EP40 EM40 0

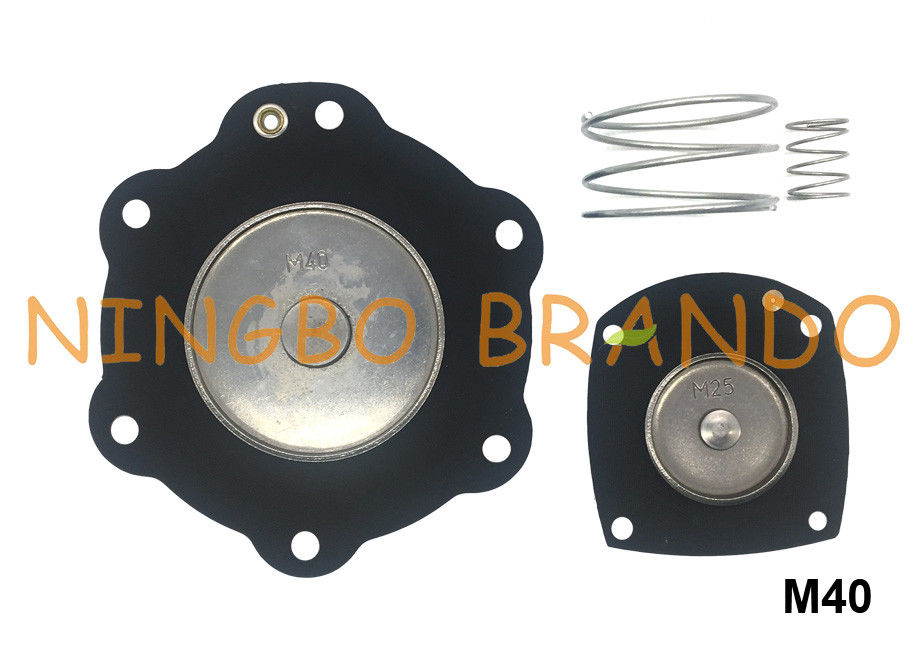

Details display of M40 Repair Kit Diaphragm For 1 1/2'' Turbo Pulse Valve:

M40 M25 1 1/2" Diaphragm Valve Repair Kit For Turbo FP40 FM40 DP40 DM40 EP40 EM40 1



Available Models of Diaphragm Valve Repair Kits For Turbo Pulse Valves:

Ordering code
Fitted valve code
Valve port size
Material
M25
FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25
1''
Nitrile/Buna
M40 & M25
FP40, FM40, DP40, DM40, EP40, EM40
1-1/2''
Nitrile/Buna
M50 & M25
SQP50, SQM50, SQP55, SQM55, SQP60, SQM60, SQP65, SQM65
2''
Nitrile/Buna
M75 & M25
FP65, FM65, SQP75-IN, SQM75-IN, SQP100-IN, SQM100-IN
3''
Nitrile/Buna
Tips: EPDM, FKM all available.


Tips: The related solenoid coils and armature assembly are all supplied.



Factory Production Pictures of Solenoid Valve Diaphragm Kits:

34

12



By registering for a customized catalog, Brando offers a fast and easy way to order your replacements parts. We'll take your system specifications and create a catalog based on your system making it a breeze to find the right products for your installation.



We offer competitive accessories and replacement parts for dust collectors as following:

1. Pulse Controller
2. Diaphragm Valves
3. Repair Kits (Solenoid Coil, Armature Assembly, Diaphragms)



Working Principle: When different pressure (or force) acts on both sides of the diaphragm of the pulse valve, the diaphragm moves to the lower side of the pressure, resulting in the displacement of the center of the diaphragm.

Applications: The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
