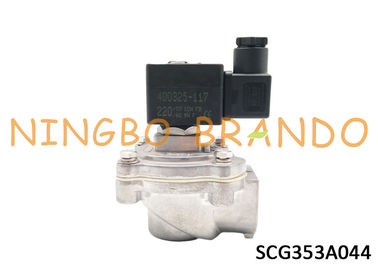

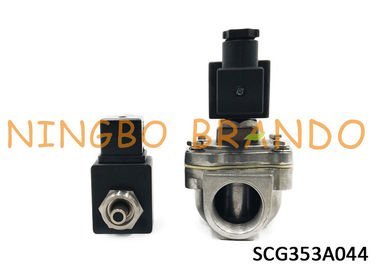

SCG353A044 1" ASCO Type 353 Series Pneumatic Pulse Valve Aluminum Pilot Operated For Dust Collector System

SCG353A044 1" ASCO Type 353 Series Pneumatic Pulse Valve Aluminum Pilot Operated For Dust Collector System

    • SCG353A044 1" ASCO Type 353 Series Pneumatic Pulse Valve Aluminum Pilot Operated For Dust Collector System
    • SCG353A044 1" ASCO Type 353 Series Pneumatic Pulse Valve Aluminum Pilot Operated For Dust Collector System
    • SCG353A044 1" ASCO Type 353 Series Pneumatic Pulse Valve Aluminum Pilot Operated For Dust Collector System
    • SCG353A044 1" ASCO Type 353 Series Pneumatic Pulse Valve Aluminum Pilot Operated For Dust Collector System
  • SCG353A044 1" ASCO Type 353 Series Pneumatic Pulse Valve Aluminum Pilot Operated For Dust Collector System

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: SCG353A044

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Port Size: G 1 Inch Nornimal Size: 25mm
    Number Of Diaphragm: 1 Action Type: Pilot Operated
    Valve Type: Right Angle Connection Type: Threaded
    Power: Solenoid Structure: Diaphragm
    Application: Dust Collector Voltage: AC220V, AC110V, AC24V, DC24V

    SCG353A044 1'' ASCO Type 353 Series Pneumatic Pulse Valve Aluminum Pilot Operated For Dust Collector System

    ASCO Type 353 Series high flow die-casting aluminum bodies, Integral compression fittings for fast, easy, secure installation. It's specially designed for reverse jet type dust collector systems. Quick mount connection eliminates thread cutting and sealing. Valves may be mounted in any position. The concept of pulse -jet dust collection system is basic: dirty air goes in, dust or particulate gets removed, and clean air comes out.



    YOUTUBE video of SCG353A044 Pulse Jet Valve:



    Technical Data:

    Model No SCG353A044
    Port Size  G1 Inch
    Working Pressure  0.3~0.8Mpa
    Working Temperature  -5~+55℃
    Working Medium  Air
    Relative Humidity ≤85%
    Protection Class  IP65
    Service Life Over 1000000 times
    Voltage  AC220V, AC110V, AC24V, DC24V
    Special voltages and specifications , please contant us.



    Main Dimension of SCG353A044 :

    Main Dimension of SCG353A044

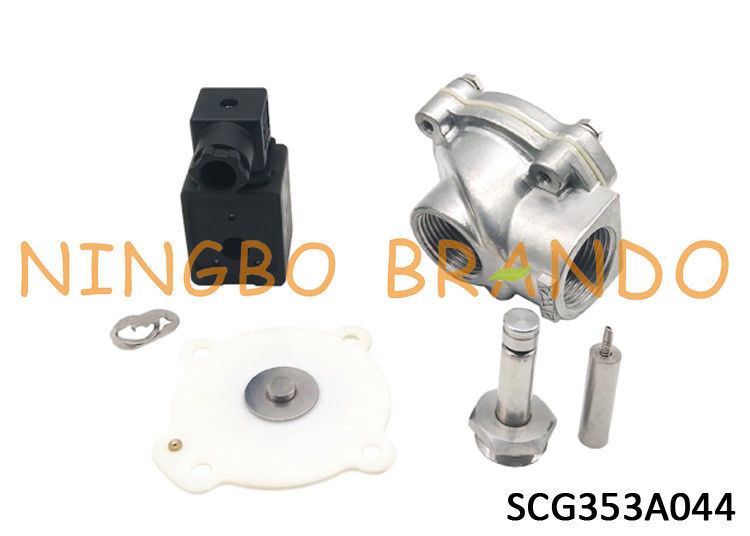

    Details About Integral Pilot Operated Pulse Valve:

    Details About Integral Pilot Operated Pulse Valve:



    How Pulse Jet Dust Collector System Working :

    Dirty air containing particles of dust enters the collector through the ductwork. Fans either push or pull the air through the ducts.
    The air hits a set of baffles, which are angled pieces of metal that slow it down. As a result, this keeps the dust from hitting the filters at full speed.
    Then the air enters what we call the dirty air plenum. This just means the side of the collector where the air is dirty. At the bottom of this space, collected dust drops out into a drum or hopper.
    Next, the air passes through the dust collector’s cartridge filters. In the dust collector system , these hang vertically from the tube sheet, which is the metal sheet separating the dirty and clean air spaces.
    Pleating the filters give them more surface area. filters are also coated with a nanofiber material. This makes the spaces that the air must go through smaller.
    The filters capture the dust. Some of it falls off. Some of it sticks to the filters. Gaskets at the top of each filter seal it to the tube sheet to keep dust from sneaking through.
    A pulse of compressed air blows into the filters. Because the pulse of compressed air goes in the reverse direction of the regular airflow, we call it a reverse pulse-jet collector.
    The pulse of compressed air blows the accumulated dust off the filters. The dust drops out of the collector and the filters are ready to collect more dust.
    On the other side of the filters, filtered air enters the clean air plenum. From there, it can go back into the facility or vented outside.



    Construction:
    Body and Dreeser Nuts: Aluminum (diecast)
    Ferrule: 305 Stainless Steel
    Armature: 430FR Stainless Steel

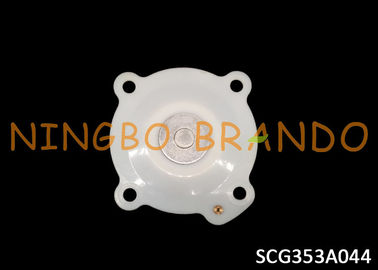

    Diaphragm and Seals: Nitrile or FKM
    Spring: 304 Stainless Steel
    Screws: 302 or 304 Stainless steel
    Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or FKM coated mild steel
