    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE, ISO
    Model Number: G45

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: negotiation
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, , Western Union
    Supply Ability: 100000PCS PER MONTH
    Contact Now
    Detailed Product Description
    Diaphragm Material: Nitrile/Buna Sealing Gasket Material: Nitrile/Buna
    Suitable Valve Number: CA45, RCA45 MM/F/T/DD Series Diaphragm Outer Distance: 124mm
    Center Distance: 112mm Sealing Gasket OD: 68mm
    Sealing Gasket ID: 31.5mm Spring: With
    Air Hole: With Packaging: Individual Sealed
    Size: 1-1/2'

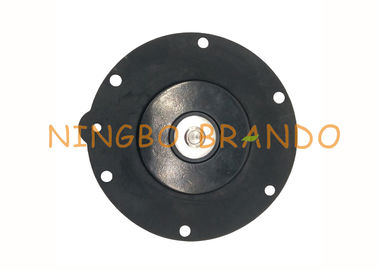

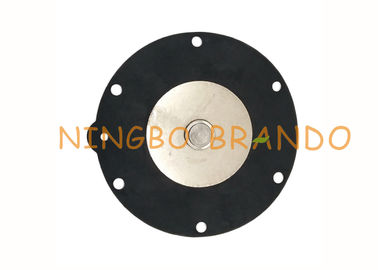

    K4503(M2163) K4007(M1156) K4004(M1761) K4502(M2162) K3502(M1591) K4504(M2187) K2503(M1887)CA/RCA 45 Repair Kit Goyen Type NBR



    The diaphragm of goyen-45 plateau pulse valve is the "switch" of the air injection circuit of the dust cleaning system of the pulse bag filter, and the diaphragm in the valve body is the key to its normal operation. The diaphragm of the electromagnetic pulse valve is in the key position. The pulse controller inputs the electrical signal to make the electromagnetic pilot head attractive, open the unloading hole and start to work.



    The diaphragm is a kind of circular membrane elastic sensitive element. Its material is composed of one layer The thickness of the membrane is usually 0.2 ~ 1.1mm, and the service life of the membrane is usually more than millions of times. When the two sides of the membrane are affected by different pressures (or forces), the membrane moves towards the side with low pressure, making the center produce a displacement related to the pressure difference.



    Deference number:

    Material Repair kit Fitted Valve Model Port Size
    Buna/Nylon K2000(M1204B) CA20, RCA20, RCAC20 3/4''
    K2003(M1174B)
    K2016
    K2034
    Buna/Buna K2002(M764)
    FKM K2007(M2080B)
    K2004(1328B)
    K2017
    K2033
    Buna/Nylon K2501(M1183B) CA25, RCA25, RCAC25 1''
    K2529
    K2549
    K2531
    K2545
    K2546
    Buna/Buna K2502(M736)
    FKM K2503(M1887)
    K2530
    K2532
    K2551
    Buna/Nylon K2500(M1183)
    CA32, RCA32, CA35, RCA35,
    CA40, RCA40, CA45, RCA45
    1-1/2''
    K3500(M1581)
    K4000(M1182)
    K4502(M2162)
    Buna/Buna K3502(M1591)
    K4504(M2187)
    FKM K2503(M1887)
    K4004(M1761)
    K4007(M1156)
    K4503(M2163)

    Buna/Nylon

    Buna/Buna

    K5004(M1638A) CA50, RCA50, CA62, RCA62 2'' , 2-1/2''
    K5005(M1639A)
    FKM K5000(M1157A)
    K5002(M1528A)

    Buna/Nylon

    Buna/Buna

    K7600 CA76, RCA76 3''
    K7604
    K7610
    FKM K7602
    Buna/Nylon K10200 CA102, RCA102 4''
    Buna/Buna K10203
    FKM K10201

    Buna/Nylon

    Buna/Buna

    K8000 CA8, RCA8 8''
    FKM


    Dimension Diagram:

    K4503 K4007K4004 K4502 K3502 K4504 K2503 CA/RCA 45 Repair Kit Pneumatic Solenoid Valve NBR Vition Goyen Type

    Detailed Images:

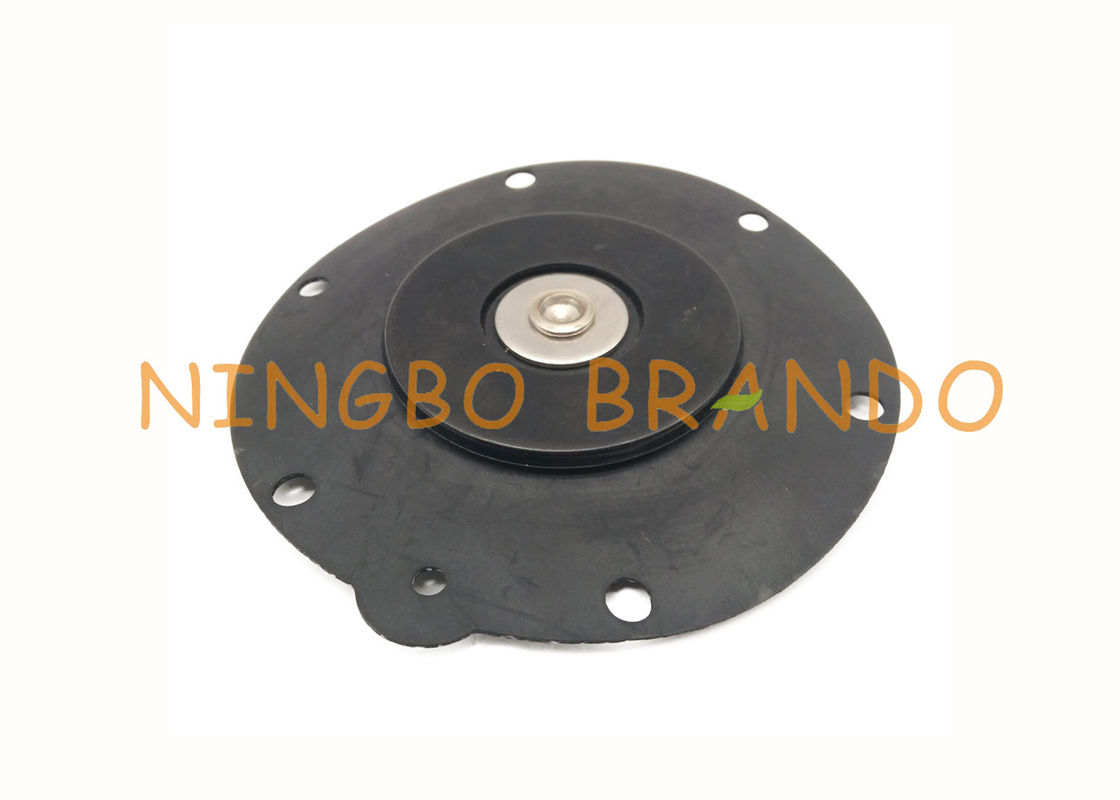

    K4503 K4007K4004 K4502 K3502 K4504 K2503 CA/RCA 45 Repair Kit Pneumatic Solenoid Valve NBR Vition Goyen Type



    Youtube video of diaphragm videos:







    Our Production:

    K4503 K4007K4004 K4502 K3502 K4504 K2503 CA/RCA 45 Repair Kit Pneumatic Solenoid Valve NBR Vition Goyen Type

    Packing&shipping

    K4503 K4007K4004 K4502 K3502 K4504 K2503 CA/RCA 45 Repair Kit Pneumatic Solenoid Valve NBR Vition Goyen Type



    Focus on your demands, Offer you best solution:



    √ Contact us if some points you have doubt

    √ Contact us if somewhere need to change
    √ Contact us if not the one you are looking for

    √ Contact us if you are doing designing



    Welcome to your any question and inquiry!
