4" NBR SCG Diaphragm Repair Kits For Solenoid Valve DN102 Black Color NBR Vition ASCO Type

4" NBR SCG Diaphragm Repair Kits For Solenoid Valve DN102 Black Color NBR Vition ASCO Type

    • 4" NBR SCG Diaphragm Repair Kits For Solenoid Valve DN102 Black Color NBR Vition ASCO Type
    • 4" NBR SCG Diaphragm Repair Kits For Solenoid Valve DN102 Black Color NBR Vition ASCO Type
    • 4" NBR SCG Diaphragm Repair Kits For Solenoid Valve DN102 Black Color NBR Vition ASCO Type
  • 4" NBR SCG Diaphragm Repair Kits For Solenoid Valve DN102 Black Color NBR Vition ASCO Type

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE, ISO
    Model Number: A102

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: negotiation
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, , Western Union
    Supply Ability: 100000PCS PER MONTH
    Contact Now
    Detailed Product Description
    Material: NBR Mounting Hole Size: 11mm
    Diaphragm Outer Distance: 190mm Center Distance: 187mm
    Sealing Gasket: Without Spring: With
    Packaging: Individual Sealed Color: Black
    Size: 4''

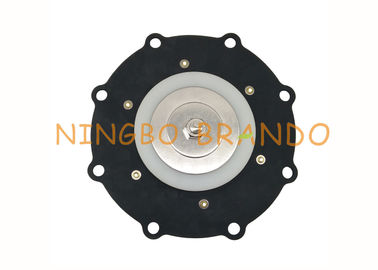

    4'' NBR SCG Diaphragm Repair Kits For Solenoid Valve DN102 Back Color



    The pulse valve diaphragm divides the pulse valve into two air chambers. When the electromagnetic pulse valve is connected with clean compressed air in the dust cleaning system of the pulse bag filter, the compressed air enters into the rear air chamber through the throttle hole. At this time, the pressure of the rear air chamber presses the diaphragm against the air outlet of the valve, and the pulse valve is in the closed state. The pulse controller outputs signals to move the armature of the pulse valve, and the rear air chamber of the valve discharges When the air hole is opened, the rear air chamber will lose pressure rapidly, so that the diaphragm moves backward, and compressed air will be injected through the outlet of the valve. When the pulse valve is in the open state, the injection starts, the electrical signal output by the pulse controller disappears, the armature of the electromagnetic pilot head of the pulse valve resets, and the vent hole of the rear air chamber is closed. When the pressure of the rear air chamber increases, the diaphragm of the pulse valve is close to the outlet of the valve, and the pulse valve is in the closed state, and the compressed air will be injected When the blowing is stopped, the length of the blowing time is controlled by the controller.

    technical requirement

    As the pulse valve diaphragm is a flexible mechanism which needs to be opened and closed frequently to control the air flow, and requires good flexibility, as well as high sealing as possible, so the material of the pulse valve diaphragm is directly related to the service life and use effect of the pulse valve diaphragm, in other words, the quality of the pulse valve diaphragm directly affects the cleaning of the pulse bag filter The working stability of the ash system is directly related to the use cost of the dust removal equipment. Generally, the pulse valve diaphragm has the commitment of service life or action times. The pulse valve diaphragm used can directly reduce the use cost of the dust removal equipment.

    structure performance

    It is composed of single or multi-layer glued on both sides. There are also rubber free fabrics. According to its shape, the membrane pressing method is used. According to the use requirements can be made of different rubber, different fabrics of the diaphragm. The properties of NBR and polysulfide rubber blends for diaphragms, the properties of rubber compounds for canvas disc diaphragms (often called diaphragms), and the properties of some silicone rubber, fluororubber and chlorohydrin rubber diaphragms developed in recent years.



    Deference number:

    ordering code fitted valve code valve port size material
    C113443 G353A041, G353A042 3/4'', 1'' TPU/NBR
    C113444 SCG353A043, SCG353A044, SCG353-052, SCG353-053 3/4'', 1''
    C113825 G353A045 1 1/2'' NBR
    C113826 G353A046 1 1/2''
    C113827 SCG353A047, SCG353A065 1 1/2''
    C113685 SCG353A050, SCG353A051 2'', 2-1/2''
    C113686
    C113928 SCEX353.060 3''
    C123432 SCG353D060, G353.060
    C123433
    K096875 (K238864) 8353C033 3/4''
    K200262 (K238866) G353A041, G353A042, SCG353A043, SCG353A044, SCG353-052, SCG353-053 1''
    K276886 (K238870) G353A045, G353A046, SCG353A047, SCG353A065 1 1/2''
    K276886B
    K276887 FKM

    tips:EPDM, FKM all available.

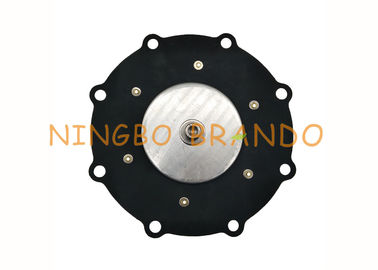

    Dimension Diagram:

    4" NBR SCG Diaphragm Repair Kits For Solenoid Valve DN102 Black Color NBR Vition ASCO Type

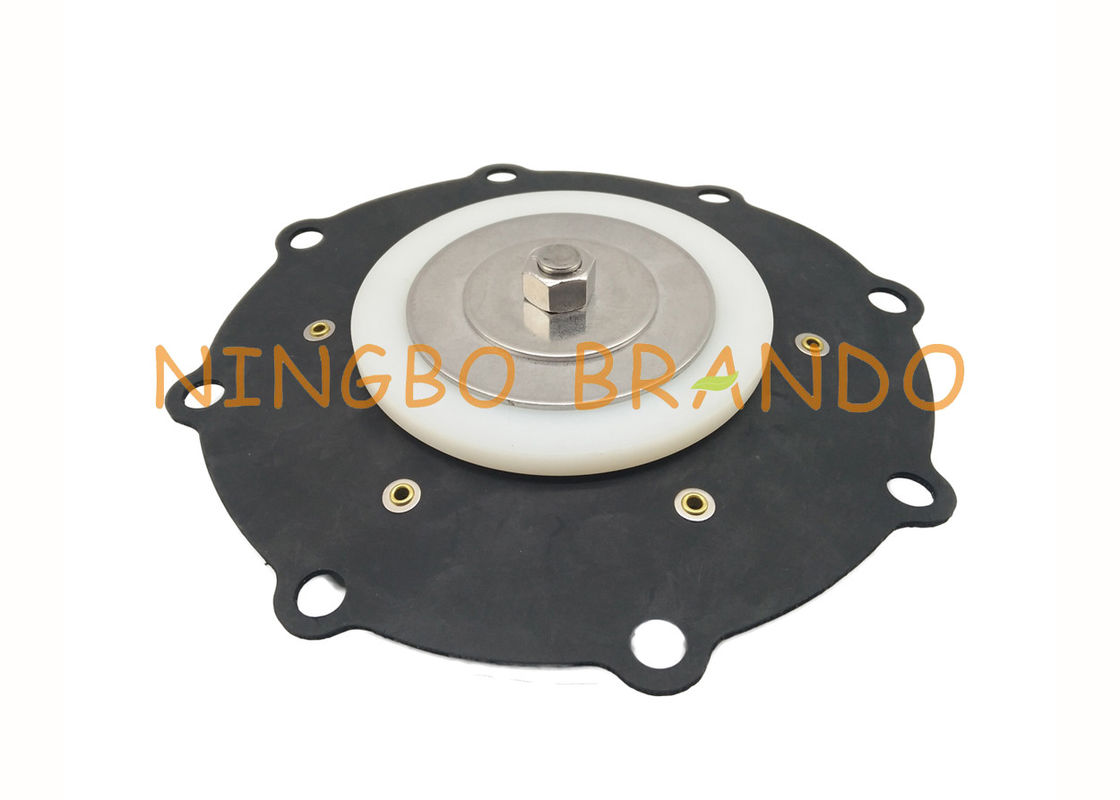

    Detailed Images:



    4" NBR SCG Diaphragm Repair Kits For Solenoid Valve DN102 Black Color NBR Vition ASCO Type



    Youtube video of diaphragm videos:







    Our Production:

    4" NBR SCG Diaphragm Repair Kits For Solenoid Valve DN102 Black Color NBR Vition ASCO Type

    Packing&shipping

    4" NBR SCG Diaphragm Repair Kits For Solenoid Valve DN102 Black Color NBR Vition ASCO Type



    Focus on your demands, Offer you best solution:



    √ Contact us if some points you have doubt

    √ Contact us if somewhere need to change
    √ Contact us if not the one you are looking for

    √ Contact us if you are doing designing



    Welcome to your any question and inquiry!
