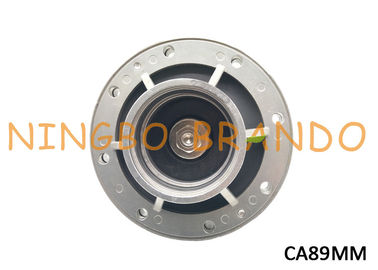

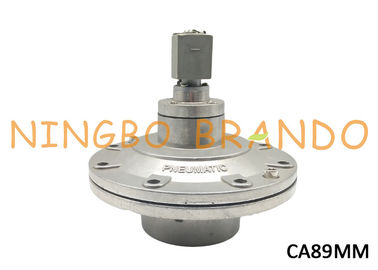

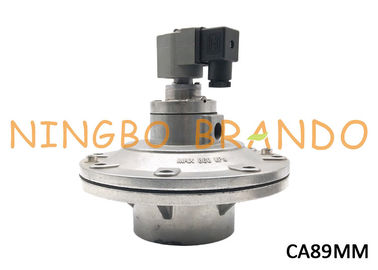

3" Dust Collector Diaphragm Manifold Mount Pulse Valve With Aluminum Body Ac220v Ac110v Dc24v

3" Dust Collector Diaphragm Manifold Mount Pulse Valve With Aluminum Body Ac220v Ac110v Dc24v

    • 3" Dust Collector Diaphragm Manifold Mount Pulse Valve With Aluminum Body Ac220v Ac110v Dc24v
    • 3" Dust Collector Diaphragm Manifold Mount Pulse Valve With Aluminum Body Ac220v Ac110v Dc24v
    • 3" Dust Collector Diaphragm Manifold Mount Pulse Valve With Aluminum Body Ac220v Ac110v Dc24v
    • 3" Dust Collector Diaphragm Manifold Mount Pulse Valve With Aluminum Body Ac220v Ac110v Dc24v
  • 3" Dust Collector Diaphragm Manifold Mount Pulse Valve With Aluminum Body Ac220v Ac110v Dc24v

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: CA89MM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Port Size: G3 Inch Working Medium: Air
    Application: Dust Collector Power: Solenoid
    Structure: Diaphragm Pressure: 0.3~0.8Mpa
    Working Temperature: -5℃ To 55℃ Voltage: AC220V, AC110V, AC24V, DC24V

    3'' Dust Collector Diaphragm Manifold Mount Pulse Valve With Aluminum Body Ac220v Ac110v Dc24v



    The full immersion manifold flat mount valves of the Goyen MM deliver the most powerful air pulse in square tank systems. When included in a fluid control and/or regulation system, valve manifolds have shown to improve efficiency as well as reduce energy costs. These diaphragm valves are designed for dust collectors and baghouses with reverse pulse jet filter cleaning systems.



    Youtube Video About CA89MM Double Diaphragm Solenoid Pulse Valve:



    Technical of CA89MM 3 Inch Dust Collector Electromagnetic Valve:

    Model No. CA89MM
    Port Size  G3''
    Number of Diaphragm  2
    Working Media Air
    Working Pressure  0.3~0.8Mpa
    Working Temperture  -5~+55℃
    Seal Material  NBR(common, all available)
    Body Material  Aluminum Alloy (diecast)
    Voltage  AC220V, AC110V, AC24V, DC24V
    Special voltages and special specifications, please contant us.



    Main Dimension of Reverse Pulse Jet Valve:

    Main Dimension of Reverse Pulse Jet Valve:

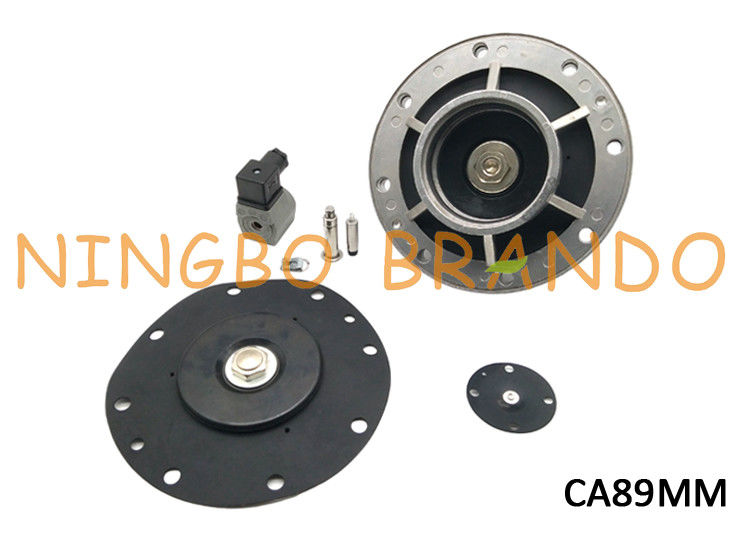

    Details About CA89MM Diaphragm Valve AC220V AC110V AC24V DC24V:

    Details About CA89MM Diaphragm Valve AC220V AC110V AC24V DC24V:



    Advantages of a manifold valve:
    1. Shorter path flows which reduces pressure drop and heat fluctuations, improving overall energy efficiency of the system
    2. Reduction in installation costs as well as fluid connections because of a simpler, more compact design
    3. Minimum chances of oil leak due to less number of connections, further reducing the need for upkeep against fatigue, wear and lose joints
    4. Improved layout due to less hoses and connections
    5. Small, compact cartridge sizes which suits confined spaces



    Goyen Type MM Series Pulse Valve Application:

    The Goyen MM are high-performance manifold flat mount valves for reverse pulse jet systems in dust collectors. Their tough and reliable design has brought them to high-performance systems around the world to control the dispersion of noxious substances, improve indoor air quality in workplaces, or prevent harmful dust emissions. The full immersion technology makes them suitable for demanding applications.
    These manifold flat mount valves are suitable for use in dust management systems in all types of industries and processes, including:
    cement production
    mining applications
    silo and conveyor systems, bulk goods handling
    general industrial dust collection
    improving indoor workplace air quality
    preventing harmful emissions
    power industry: protecting boilers and gas turbines from dust particles



    Construction:
    Body and Dreeser Nuts: Aluminum (diecast)
    Ferrule: 305 Stainless Steel
    Armature: 430FR Stainless Steel
    Diaphragm and Seals: Nitrile or FKM
    Spring: 304 Stainless Steel
    Screws: 302 or 304 Stainless steel
    Outlet Pipe: Schedule 40 wrought steel zinc passivated
    Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or FKM coated mild steel



    Focus on your demands, Offer you best solution:
    √ Contact us if some points you have doubt
    √ Contact us if somewhere need to change
    √ Contact us if not the one you are looking for
    √ Contact us if you are doing designing



    Welcome to your any question and inquiry!
