Name: C123432 C123433 ASCO Type Pulse Valve Diaphragm SCG353D060 SCG353G060 G353.058
Brand: Ningbo Brando Hardware Co., Ltd
SKU: C123432, C123433
Price: 49.10 USD
Availability: InStock

Home Products Diaphragm Repair Kit

C123432 C123433 ASCO Type Pulse Valve Diaphragm SCG353D060 SCG353G060 G353.058

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	C123432, C123433

Payment & Shipping Terms:

Minimum Order Quantity:	20sets
Price:	Negotiation
Packaging Details:	Plastic bag, Box, Carton, Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	100000 sets per month

Contact Now

Detailed Product Description

Product Name:

Pulse Valve Diaphragm

Suitable Pulse Valve Model:

SCG353D060, SCG353G060, G353.058

Diaphragm Material:

NBR (Standard), FKM (Optional)

Application:

Dust Collector

Highlight:

ASCO Diaphragm Kit C123432

ASCO Diaphragm Kit C123433

ASCO Pulse Valve Diaphragm

C123432 C123433 Diaphragm for ASCO Pulse Valve

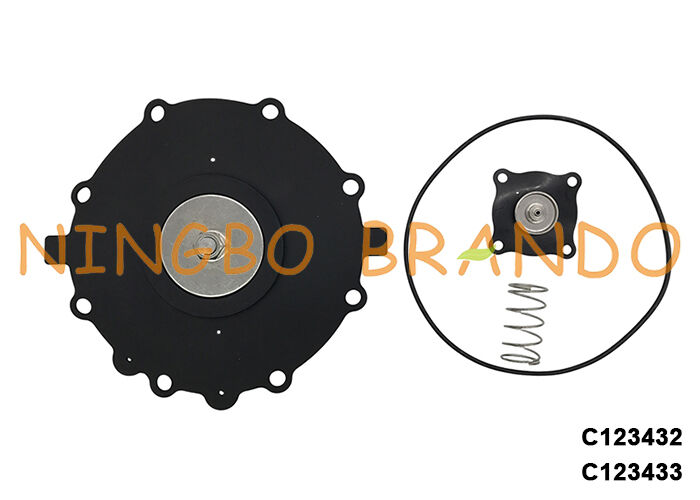

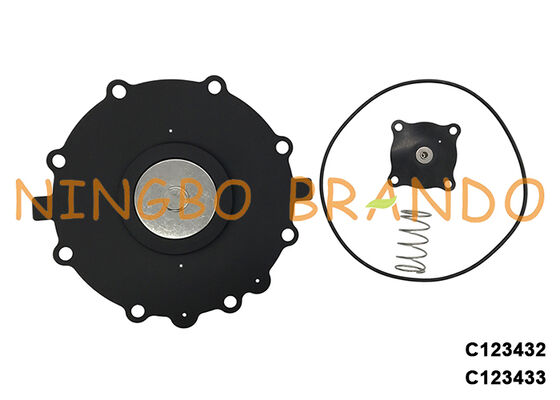

This diaphragm set is used in SCG353D060, SCG353G060, G353.058 ASCO 3'' pulse valves. The reference number is C123432, C123433. The diaphragm material can be NBR (standard) or FKM (optional for high temperature environment). 1 set diaphragm kit includes 1pc big diaphragm, 1pc small diaphragm, 1pc spring and 1pc o-ring. If any demands, pls contact us!

Main Dimension:

Reference Numbers:

Pulse Valve Port Size	Pulse Valve Model No	Diaphragm Model No	Diaphragm Material
3/4''	SCG353A043	C113444	TPE, NBR, FKM
	SCG353G043
	SGG353A043
1''	SCG353A044
	SCG353G044
	SGG353A044
3/4''	SCG353-052
	SCG353G052
	SGG353-052
1''	SCG353-053
	SCG353G053
	SGG353-053
1-1/2''	SCG353A047	C113827	NBR, FKM
	SCG353G047
	SGG353A047
	SCG353A065
	SCG353G065
	SGG353A065
2''	SCG353A050	C113685, C113686
	SCG353G050
	SGG353A050
2-1/2''	SCG353A051
	SCG353G051
	SGG353A051
3''	SCG353D060	C123432, C123433
	SCG353G060
3''	SCXE353.060	C113928
	SCR353G060
3''	SCR353A230	C113968
	SCR353G230
3-1/2''	SCR353A235
	SCR353G235
3/4''	G353A041	C113443	TPE, NBR, FKM
1''	G353A042
3/4''	G353-055
1''	G353-056
1-1/2''	G353A045	C113825	NBR, FKM
	G353-066
	G353A046	C113826
	G353A063
2''	G353A048	C113684
2-1/2''	G353A049
3''	G353.058	C123432, C123433
