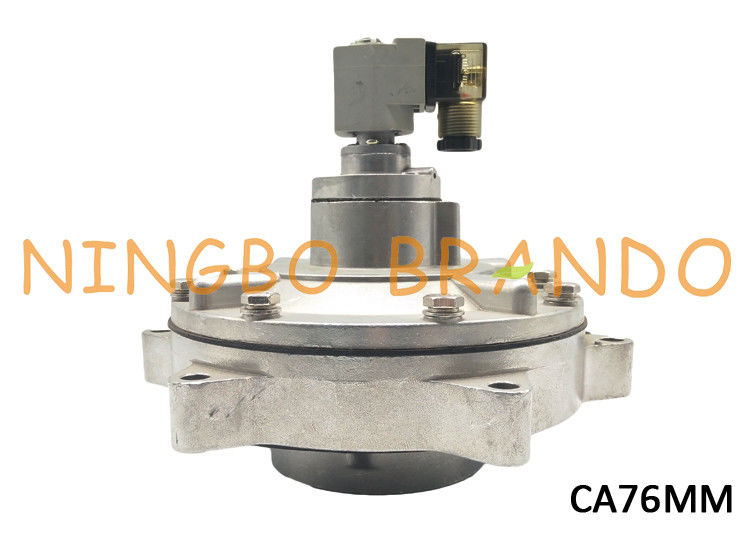

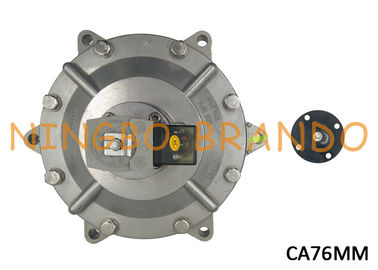

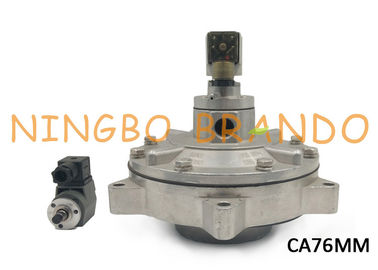

Goyen Type G3 Inch Pneumatic Pulse Valve Embedded Dust Collector Mm Series CA76MM

Goyen Type G3 Inch Pneumatic Pulse Valve Embedded Dust Collector Mm Series CA76MM

    • Goyen Type G3 Inch Pneumatic Pulse Valve Embedded Dust Collector Mm Series CA76MM
    • Goyen Type G3 Inch Pneumatic Pulse Valve Embedded Dust Collector Mm Series CA76MM
    • Goyen Type G3 Inch Pneumatic Pulse Valve Embedded Dust Collector Mm Series CA76MM
    • Goyen Type G3 Inch Pneumatic Pulse Valve Embedded Dust Collector Mm Series CA76MM
  • Goyen Type G3 Inch Pneumatic Pulse Valve Embedded Dust Collector Mm Series CA76MM

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: CA76MM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Port Size: 3 Inch Valve Type: Manifold Mount Pulse Valve
    Power: Solenoid Structure: Diaphragm
    Application: Dust Collector Body Material: Aluminum (diecast)
    Seal Material: NBR(common, All Available) Voltage: AC220V, AC110V, AC24V, DC24V

    Goyen Type G3 Inch Pneumatic Pulse Valve Embedded Dust Collector Mm Series CA76MM



    Pulse valves are often used in dust collector systems for the grain, agriculture and feed production industries. And Mining is another key industry that relies on dust collector systems. Also Pulse valves are used to clean bag-type or cartridge-type filters in a dust collector system.

    Dusty environments in industries such as concrete, metalworking, mining, steel mills, grain, agriculture, and feed are particularly susceptible to costly damage and downtime due to particulates getting into machines. Dusty air is also a hazard to workers’ health. Particularly, food and beverage industries--whether for humans or animals--must fight powder dust in the air. Many of these industries use specific equipment for handling, storage and drying operations. Plus, the cereal, protein powder, and starch product industries are increasingly incorporating aggressive antibacterial chemicals meant to help eliminate the risk of contamination of food that is in contact with these machines — but these chemicals may also be damaging to equipment over time.

    It is imperative that these companies incorporate highly efficient dust collector systems to eliminate or reduce as many of these maintenance concerns as possible. Pulse valves are used to clean bag-type or cartridge-type filters in a dust collector system. These valves send a high-energy pulse of air through the blow tube creating a shock wave down the filters to remove dust. Higher air acceleration and quicker valve response time helps clean filter bags better and consume less compressed air, thereby lowering the cost of system operation.



    Video On Youtube About CA76MM 3'' Solenoid Pusle Valve:



    Technical Data of CA76MM Manifold Mount Pulse Valve:

    Model No. CA76MM
    Port Size G3 Inch
    Nominal Size  76mm
    Number of Diaphragm  2
    Working Media  Air
    Working Pressure  0.3~0.8Mpa
    Working Temperature  -5~+55℃
    Body Material  Aluminum Alloy
    Seal Material  NBR(common, all available)
    Voltage  AC220V, AV110V, AC24V, DC24V

    Special voltages and special specifications, please contant us.



    Overall Dimension:

    Goyen Type G3 Inch Pneumatic Pulse Valve Embedded Dust Collector Mm Series CA76MM



    Details About CA76MM Submerged Pulse Valve:

    Details About CA76MM Submerged Pulse Valve:



    Construction:
    Body and Dreeser Nuts: Aluminum (diecast)
    Ferrule: 305 Stainless Steel
    Armature: 430FR Stainless Steel
    Diaphragm and Seals: Nitrile or FKM
    Spring: 304 Stainless Steel
    Screws: 302 or 304 Stainless steel
    Outlet Pipe: Schedule 40 wrought steel zinc passivated
    Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or Vitoncoated mild steel

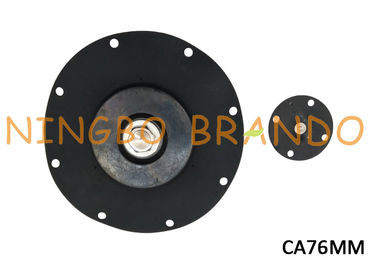

    Maintenance Kits of CA76MM Valve:

    Model  Nitrile  FKM  Incldes
    CA/RCA76MM  K7600 K0384 Diaphragm kits include main and secondary diaphragms and all spring
    k0380   O-ring, armature assembly, armature spring, ferrule



    Focus on your demands, Offer you best solution:

    √ Contact us if some points you have doubt
    √ Contact us if somewhere need to change
    √ Contact us if not the one you are looking for
    √ Contact us if you are doing designing


    Welcome to your any question and inquiry!
