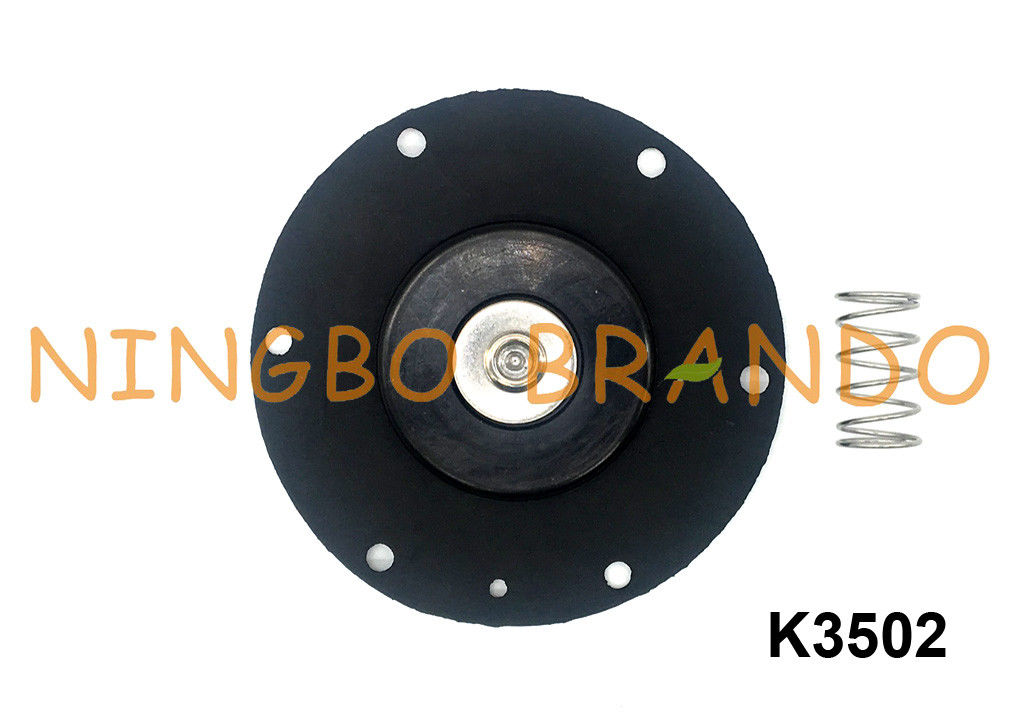

K3502 M1591 Goyen Type Buna Diaphragm Kit For CA/RCA35T CA/RCA40DD CA/RCA40MM Diaphragm Valves

K3502 M1591 Goyen Type Buna Diaphragm Kit For CA/RCA35T CA/RCA40DD CA/RCA40MM Diaphragm Valves

    • K3502 M1591 Goyen Type Buna Diaphragm Kit For CA/RCA35T CA/RCA40DD CA/RCA40MM Diaphragm Valves
    • K3502 M1591 Goyen Type Buna Diaphragm Kit For CA/RCA35T CA/RCA40DD CA/RCA40MM Diaphragm Valves
  • K3502 M1591 Goyen Type Buna Diaphragm Kit For CA/RCA35T CA/RCA40DD CA/RCA40MM Diaphragm Valves

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: K3502

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: Negotiation
    Packaging Details: Plastic Bags, Cartons, Pallet
    Delivery Time: 4-7 Days
    Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
    Supply Ability: 200000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: K3502 M1591 Buna Diaphragm Kit Mounting Hole Size: 6mm
    Diaphragm Material: Buna (Nitrile) Diaphragm OD: 110mm
    Seat Material: Buna (Nitrile) Seat OD: 57mm
    Seat ID: 28mm Bleed Hole: 1
    Spring: 1 Packaging: Individual Plastic Bag Sealed
    Suitable Valves: CA35T, RCA35T, CA40DD, RCA40DD, CA40MM, RCA40MM
    High Light:

    Goyen Diaphragm

    ,

    Goyen Pulse Valve Diaphragm

    ,

    Goyen Diaphragm Repair Kit

    K3502 M1591 Goyen Type Buna Diaphragm Kit

    K3502 M1591 Buna Diaphragm Kits are composed of one buna seat buna diaphragm and one stainless steel spring. The K3502 M1591 Buna Diaphragm Kits are used in Goyen diaphragm pulse valves CA35T, RCA35T, CA40DD, RCA40DD, CA40MM, RCA40MM. K3502 diaphragm material is Nitrile (NBR), not suitable for strong solvents and chemical fluids, oil resistant. We use high quality material, the collection equipment efficiency can be improved, the energy loss also can be reduced.

    YouTube video of K3502 M1591 Goyen Type Buna Diaphragm Kit:


    Main dimension of Goyen Type K3502 M1591 Diaphragm Repair Kits:
    K3502 M1591 Goyen Type Buna Diaphragm Kit For CA/RCA35T CA/RCA40DD CA/RCA40MM Diaphragm Valves 0

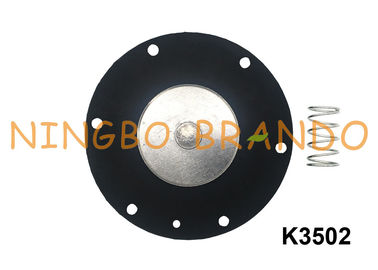

    Details display of K3502 CA/RCA35 CA/RCA40 Diaphragm Valve Kit:
    K3502 M1591 Goyen Type Buna Diaphragm Kit For CA/RCA35T CA/RCA40DD CA/RCA40MM Diaphragm Valves 1

    Available Models of Goyen Type Buna/Buna Diaphragm Repair Kits:

    Valve Model Series Note Pipe Size Repair Kit
    CA/RCA20 DD, T * 3/4'' K2002 (M764)
    CA/RCA25 DD, FS, MM, T * 1'' K2502 (M736)
    CA/RCA32 * 1 1/2'' K2522 (M736)
    CA/RCA35 T * 1 1/2'' K3502 (M1591)
    CA/RCA40 DD, MM * 1 1/2'' K3502 (M1591)
    CA/RCA45 DD, FS, T *** 1 1/2'' K4504 (M2187)
    CA/RCA50 T

    ***

    1B

    2'' K5004 (M1638A)
    CA/RCA50 T

    ***

    3B

    2'' K5004 (M1638A)
    CA/RCA62 T

    ***

    1B

    2 1/2'' K5004 (M1638A)
    CA/RCA62 T

    ***

    3B

    2 1/2'' K5005 (M1639A)
    CA/RCA76 MM, T

    ***

    3B

    3'' K7600
    CA/RCA76 MM, T

    ***

    LP

    3'' K7604
    CA/RCA76 MM, T

    ***

    1B LP

    3'' K7610
    CA/RCA102 MM *** 4'' K10203
    CA/RCA8 MM *** 8'' K8000



    * Single Valve
    ** Older version with Single Valve
    *** Double Valve
    1B 1 Bleed Hole
    3B 3 Bleed Holes
    LP Low Pressure



    Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.



    Factory Production Pictures of Solenoid Valve Diaphragm Kits:

    34

    12

    Brief introduction of diaphragms in pulse jet valves:

    The diaphragm is the key component in diaphragm pulse jet valves. It is one of the fittings for the normal operation of the valve body and the "switch" of the injection air circuit of the dust cleaning system of the pulse bag filter. It can easily ensure complete synchronization with other control components to control the injection of pulsed compressed air. So the tightness and softness of the diaphragm play a decisive role in the blowing effect of the pulse valve.



    Working Principle: When different pressure (or force) acts on both sides of the diaphragm of the pulse valve, the diaphragm moves to the lower side of the pressure, resulting in the displacement of the center of the diaphragm.



    Applications: The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
