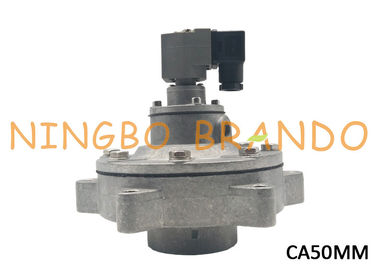

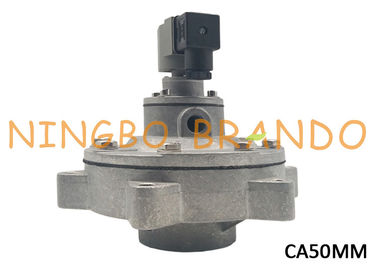

2 Inch Aluminum Alloy Tank Mounted Full Immerse Pulse Jet Valve AC220V DC24V CA50MM

2 Inch Aluminum Alloy Tank Mounted Full Immerse Pulse Jet Valve AC220V DC24V CA50MM

    • 2 Inch Aluminum Alloy Tank Mounted Full Immerse Pulse Jet Valve AC220V DC24V CA50MM
    • 2 Inch Aluminum Alloy Tank Mounted Full Immerse Pulse Jet Valve AC220V DC24V CA50MM
    • 2 Inch Aluminum Alloy Tank Mounted Full Immerse Pulse Jet Valve AC220V DC24V CA50MM
    • 2 Inch Aluminum Alloy Tank Mounted Full Immerse Pulse Jet Valve AC220V DC24V CA50MM
  • 2 Inch Aluminum Alloy Tank Mounted Full Immerse Pulse Jet Valve AC220V DC24V CA50MM

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: ISO、CE
    Model Number: CA50MM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Port Size: G2'' Type: Submerged
    Number Of Diaphragm: 2 Power: Solenoid
    Structure: Diaphragm Seal Material: NBR(common, All Available)
    Body Material: Aluminum (diecast) Voltage: AC220V, AC110V, AC24V, DC24V
    High Light:

    Dust Collector Pulse Valve

    ,

    Dust Collector Diaphragm Valve

    ,

    Diaphragm Pulse Valve

    2 Inch Aluminum Alloy Tank Mounted Full Immerse Pulse Jet Valve AC220V DC24V CA50MM

    Tank mounted full immerse pulse valve mainly used in Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations. electromagnetic pulse valve is a pulse jet bag filter cleaning system of compressed air "switch." resistance control pulse controller output signal, bag-by-room injection cleaning, so dust is maintained within the set range, in order to ensure processing power and dust collection efficiency.
    The pulse jet bag filter mainly uses the pressure air bag to compress the air as the dust removal energy. When the pulse jet valve is activated, the pulse airflow is pulsed from top to bottom. The dust layer attached to the outside of the filter bag is shaken into the hopper of the bag filter by pulse oscillation.

    Our manifold flat mount valves for reverse pulse jet systems in dust collectors are manufactured from die cast aluminum. They are full immersion valves, with the inlet port located right inside the compressed air manifold. Drawing the compressed air directly from the tank delivers improved pneumatic performance and a significant boost to the air pulses.

    Youtube Video about CA50MM Pulse Valve:



    Technical Data of CA50MM Electromagentic Valve:

    Model No. CA50MM
    Port Size G2''
    Diameter (mm) 50
    Number of Diaphragm  2
    Valve Type  Full Immersion Manifold Flat Mount Valve
    Working Medium  Air
    Pressure Range 0.3~0.8Mpa
    Working Temperature -5~+55℃
    Seal Material  NBR(common, all avaliable)
    Body Material  Aluminum Alloy



    Main Diemension of 2'' Embedded Valve for Reverse Jet Baghouse System:

    Main Dimension

    Details About CA50MM Diaphragm Pulse Valve:



    Details About CA50MM Diaphragm Pulse Valve:

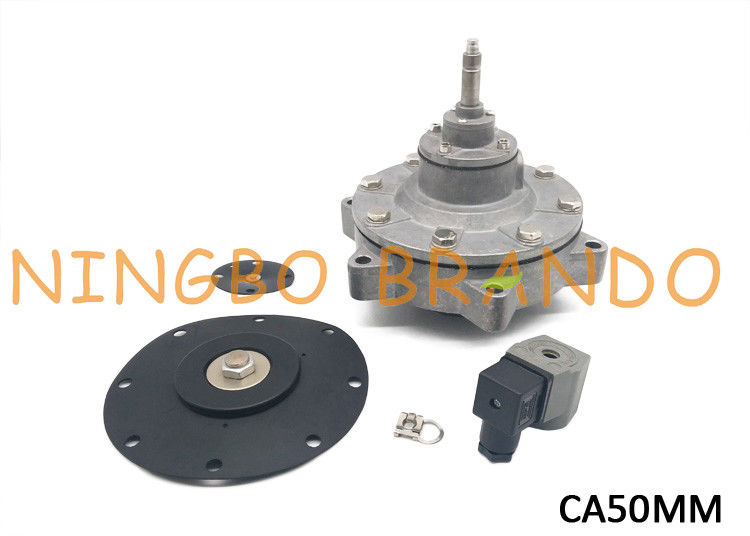

    Construction of MM series pulse valve:

    Body and Dresser Nuts: Aluminium (diecast)
    Ferrule: 305 SS
    Armature: 430FR SS

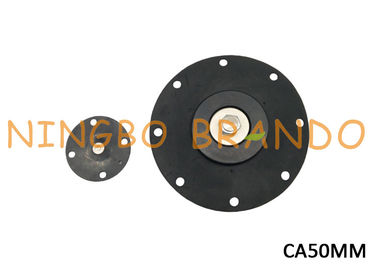

    Diaphragm and seals: Nitrile or Viton
    Spring: 304 SS
    Screws: 302 or 304 SS
    Outlet pipe: Schedule 40 wrought steel zinc
    passivatedDiaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or Vitoncoated mild steel



    Features and benefits of CA50MM:


    1. Installation easily, MM valves are installed through the tank.
    2. Sensitive and reliable signal; Stable working
    3. Low internal-resistance;Long operating-life
    4. Most powerful air pulse due to full immersion design ; Large gas-displacement;High airflow impact-force
    5. Ready for use in any dust collector design
    6. Cost savings; urable materials and wide temperature range enhance lifespan ;Longer filter life, lower dust collector OPEX
    7. With environmental and health & safety regulations
