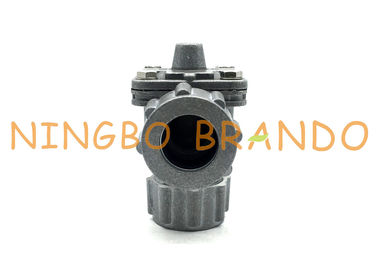

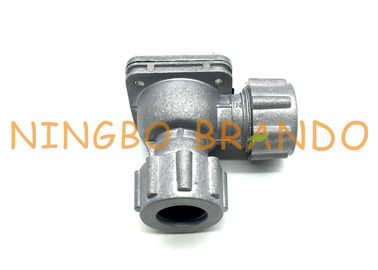

1" RCA25DD Goyen Type Pulse Jet Dust Collector Valve Remotely Piloted 24VDC 220VAC 230VAC

1'' RCA25DD Goyen Type Pulse Jet Dust Collector Valve Remotely Piloted 24VDC 220VAC 230VAC

The switching performance of the RCA25DD Goyen type pulse jet valve directly affects the blowing effect and efficiency of the cleaning system. It mainly tests the RCA25DD pulse jet valve by the test equipment that responds to parameters such as response time, opening time, blowing time, closing time and peak pressure. Switch performance test and record the switch performance curve.

YouTube video of 1 Inch RCA25DD Dust Collector Diaphragm Valve:

Overall dimension of RCA25DD 1'' Goyen Replacement Dust Collector Valve:

Technical data of DD Series Remotely Piloted Dresser Nut Pulse Jet Valve:

Spare parts detail of CA25DD Goyen Type Impulse Diaphragm Valve:

Pulse Jet Valve Operation: pulse jet valves are operated by integral solenoid pilot operator. When the valve is energized, the trapped air above the pulse valve diaphragm is quickly exhausted causing fast opening of main diaphragm valve. When the pilot-operated valve is de-energized, air escapes through a bleed hole of the main pulse valve to balance the diaphragm pressure and instantly closes the valve.

Duty Cycle: The relative duty time cycle for ac voltage is 20% and for DC voltage is 10 % .This implies energized time is maximum 1/5th of de-energized time for AC and 1/10th for DC voltage.

Installation: Mounting in any position will not affect pulse valve operation. However good engineering practice is to avoid scale and condensed water entering valve body for trouble free performance.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
