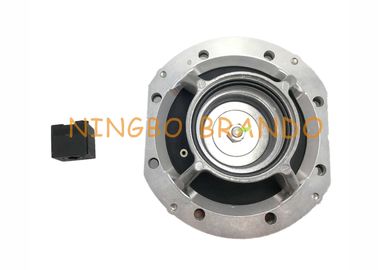

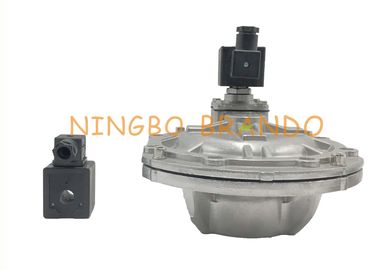

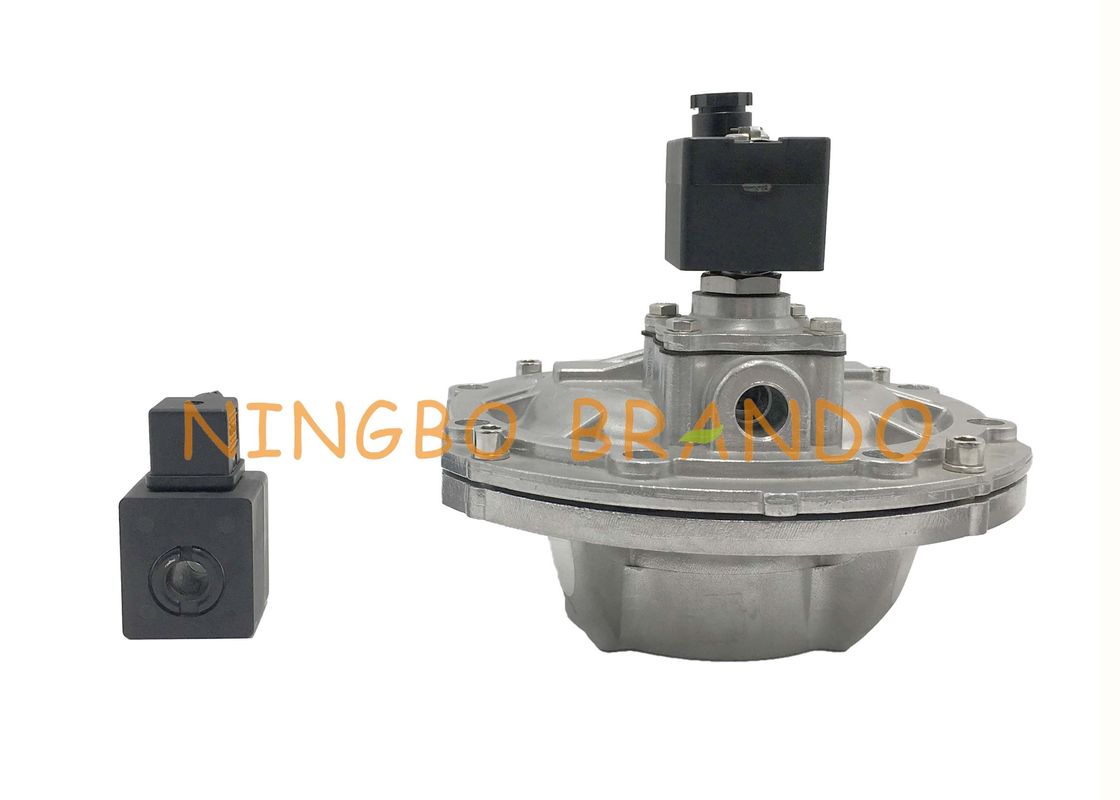

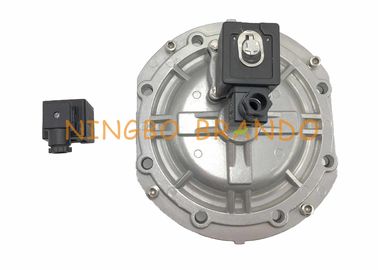

G3 Inch Aluminum Alloy Solenoid Valve SCXE353.060 ASCO 3 Inch Embedded DIN43650A Pulse Jet Valves

G3 Inch Aluminum Alloy Solenoid Valve SCXE353.060 ASCO 3 Inch Embedded DIN43650A Pulse Jet Valves

    • G3 Inch Aluminum Alloy Solenoid Valve SCXE353.060 ASCO 3 Inch Embedded DIN43650A Pulse Jet Valves
    • G3 Inch Aluminum Alloy Solenoid Valve SCXE353.060 ASCO 3 Inch Embedded DIN43650A Pulse Jet Valves
    • G3 Inch Aluminum Alloy Solenoid Valve SCXE353.060 ASCO 3 Inch Embedded DIN43650A Pulse Jet Valves
    • G3 Inch Aluminum Alloy Solenoid Valve SCXE353.060 ASCO 3 Inch Embedded DIN43650A Pulse Jet Valves
  • G3 Inch Aluminum Alloy Solenoid Valve SCXE353.060 ASCO 3 Inch Embedded DIN43650A Pulse Jet Valves

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE, ISO
    Model Number: SCXE353.060

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: PVC bag, inner box, canton, then packed by pallet
    Delivery Time: One weeek after payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000 pcs per month
    Contact Now
    Detailed Product Description
    Model Number: SCXE353.060 Port Size: 3 Inch
    Material: Aluminum, SS304, Enamelled Wire Voltage: DC, AC All Available
    Working Pressure: 0.4--0.6Mpa Working Life: More Than 1 Million Times
    Temperature: -5℃ To +55℃ Application: Solenoid Valve

    G3 Inch Aluminum Alloy Solenoid Valve SCXE353.060 ASCO 3 Inch Embedded DIN43650A Pulse Jet Valves



    FEATURES:

    1. The pulse diaphragm pulse valves 3" SCXE353.060 threaded are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to provide reliable and economical operation,Integral compression fittings for fast, easy, secure installation
    2. The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
    3. Valves can be supplied according to ATEX Directive 94/9/EC for non-electrical equipment by using suffix GD,The components satisfy all relevant EC directives



    INSTAllATION:

    1 The valves can be mounted in any position without affecting operation
    2 Threaded pipe connection is: G = G (ISO 228/1) or compression fittings
    3 When connecting piping or tubing to the 1/8 " connection in the valve bonnet, the remote ASCO pilot valve should be mounted as close as possible to the main pulse valve. Connection tubing lengths of 3 meter or less have little effect on the pulse response. Installations with over 3 meter of tubing must be tested under actual operating conditions. Tubing with Ø 6 mm O.D. is recommended for all installations
    4 For compression fitting types tightness is achieved by the compressed gasket on the blow tube
    5 Other pipe threads are available on request
    6 Installation/maintenance instructions are included with each valve
    7 Spare parts kit and replacement coils are available




    ASCO Type Series Model Specification:

    Model No SCXE353.060
    Port Size G3''
    Nominal Size φ76mm
    Working Pressure 0.3 to 0.8MPa
    Environment Temperature -5 to +55℃
    Relative Humidity ≤85%
    Operating Medium Dry clean compressed air
    Service Life Over one million times
    Voltages AC24V, AC110V, AC220V, DC24V


    Overall Dimensions of ASCO Pulse valve

    G3 Inch Aluminum Alloy Solenoid Valve SCXE353.060 ASCO 3 Inch Embedded DIN43650A Pulse Jet Valves

    ASCO Type Electromagnetic Pulse Valve Detail:

    G3 Inch Aluminum Alloy Solenoid Valve SCXE353.060 ASCO 3 Inch Embedded DIN43650A Pulse Jet Valves

    Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)



    Pulse Valve Internal Structure and Main Parts:

    Part Name Material
    Solenoid coil high quanlity enamelled wire
    Armature assembly SS304, 430FR
    Small common cap ADC aluminum
    Diaphragm  NBR (nitrile, buna-n)
    Top end cap ADC aluminum
    Big spring SS304
    Screws SS302
    Seal NBR, Viton, all can be customized
    Main body ADC aluminum



    Advantages of ASCO pulse valve:

    1, mainly designed for dust collecting application, with characteristic of high flow value, long working life and fast switch response, to ensure the steady function of dust removing system

    2, the diaphragms with high quality and proffessional design for pulse valve working life



    Youtube Video Of ASCO Type Solenoid Valve For Dust Collector:
