SCG353A051 - G2 1/2 Orifice Size 62mm Threaded Series 353 Dust Collector Dual Pulse Valves Integral Dual Stage

SCG353A051 - G2 1/2 Orifice Size 62mm Threaded Series 353 Dust Collector Dual Pulse Valves Integral Dual Stage

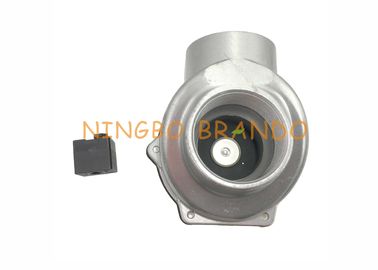

  • SCG353A051 - G2 1/2 Orifice Size 62mm Threaded Series 353 Dust Collector Dual Pulse Valves Integral Dual Stage

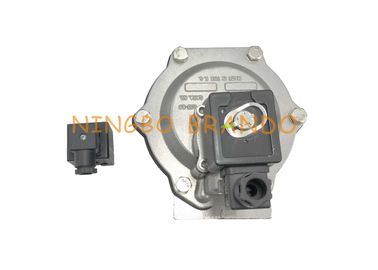

  • SCG353A051 - G2 1/2 Orifice Size 62mm Threaded Series 353 Dust Collector Dual Pulse Valves Integral Dual Stage

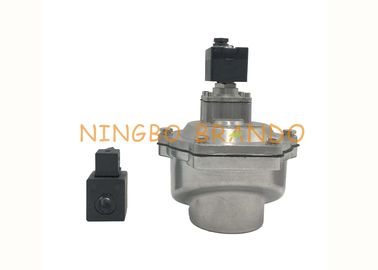

  • SCG353A051 - G2 1/2 Orifice Size 62mm Threaded Series 353 Dust Collector Dual Pulse Valves Integral Dual Stage

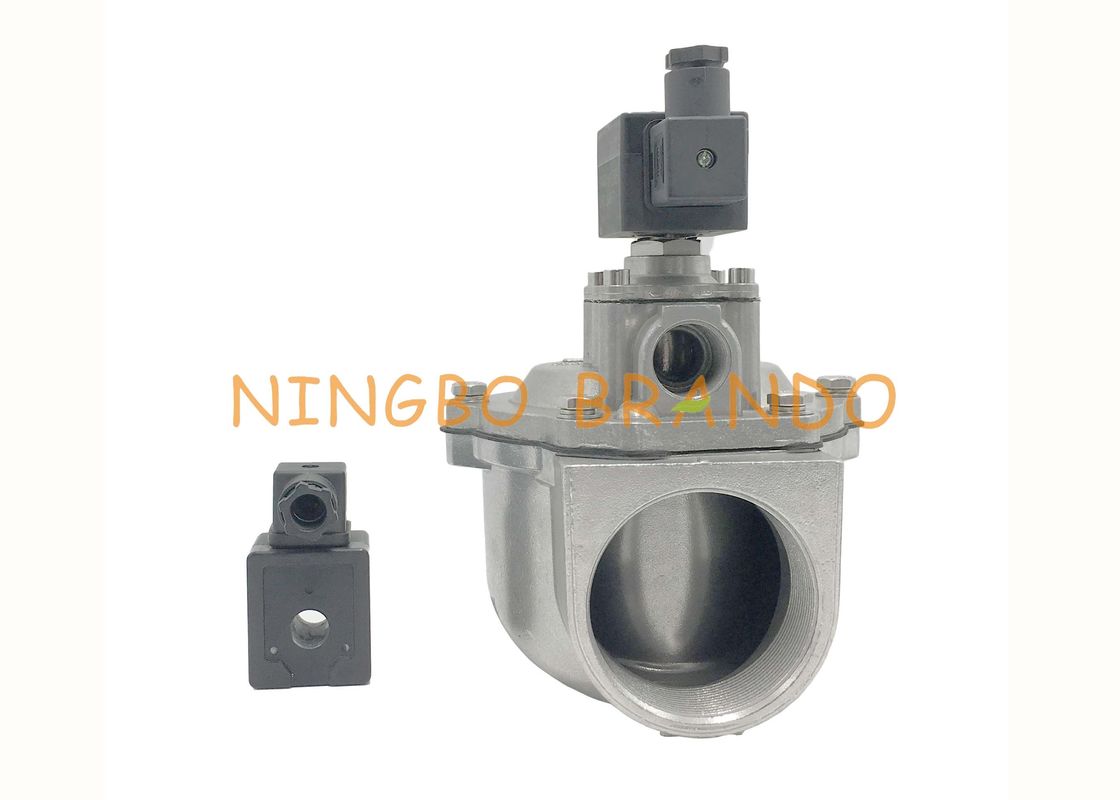

  • SCG353A051 - G2 1/2 Orifice Size 62mm Threaded Series 353 Dust Collector Dual Pulse Valves Integral Dual Stage
SCG353A051 - G2 1/2 Orifice Size 62mm Threaded Series 353 Dust Collector Dual Pulse Valves Integral Dual Stage
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE, ISO
Model Number: SCG353A051
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: PVC bag, inner box, canton, then packed by pallet
Delivery Time: One weeek after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Model Number: SCG353A051 Port Size: 2 1/2 Inch
Material: Aluminum, SS304, Enamelled Wire Voltage: DC, AC All Available
Working Pressure: 0.4--0.6Mpa Working Life: More Than 1 Million Times
Temperature: -5℃ To +55℃ Application: Solenoid Valve
High Light:

ASCO Pulse Jet Valve

,

ASCO Dust Collector Valve

,

ASCO Pulse Diaphragm Valve

SCG353A051 - G2 1/2, Orifice Size 62mm, Threaded Series 353 Dust Collector Dual Pulse Valves Integral Dual Stage ​



FEATURES:

1. The pulse diaphragm pulse valves 2 1/2 " SCG353A051 threaded are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to provide reliable and economical operation,Integral compression fittings for fast, easy, secure installation
2. The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
3. Valves can be supplied according to ATEX Directive 94/9/EC for non-electrical equipment by using suffix GD,The components satisfy all relevant EC directives



INSTAllATION:

1 The valves can be mounted in any position without affecting operation
2 Threaded pipe connection is: G = G (ISO 228/1) or compression fittings
3 When connecting piping or tubing to the 1/8 " connection in the valve bonnet, the remote ASCO pilot valve should be mounted as close as possible to the main pulse valve. Connection tubing lengths of 3 meter or less have little effect on the pulse response. Installations with over 3 meter of tubing must be tested under actual operating conditions. Tubing with Ø 6 mm O.D. is recommended for all installations
4 For compression fitting types tightness is achieved by the compressed gasket on the blow tube
5 Other pipe threads are available on request
6 Installation/maintenance instructions are included with each valve
7 Spare parts kit and replacement coils are available




ASCO Type Series Model Specification:

Model NO. SCG353A043 SCG353A044 SCG353A047 SCG353A050 SCG353A051
Port Size G3/4'' G1'' G1-1/2'' G2'' G2-1/2''
Normal Size φ20mm φ25mm φ40mm φ50mm φ62mm
Working Pressure 0.3 to 0.8MPa
Environment Temperature -5 to +55℃
Relative Humidity ≤85%
Operating Medium Dry clean compressed air
Service Life Over one million times
Voltages AC24V, AC110V, AC220V, DC24V



Overall Dimensions of ASCO Pulse valve

SCG353A051 - G2 1/2 Orifice Size 62mm Threaded Series 353 Dust Collector Dual Pulse Valves Integral Dual Stage 0

ASCO Type Electromagnetic Pulse Valve Detail:

SCG353A051 - G2 1/2 Orifice Size 62mm Threaded Series 353 Dust Collector Dual Pulse Valves Integral Dual Stage 1

Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)



Pulse Valve Internal Structure and Main Parts:

Part Name Material
Solenoid coil high quanlity enamelled wire
Armature assembly SS304, 430FR
Small common cap ADC aluminum
Diaphragm  NBR (nitrile, buna-n)
Top end cap ADC aluminum
Big spring SS304
Screws SS302
Seal NBR, Viton, all can be customized
Main body ADC aluminum



Advantages of ASCO pulse valve:

1, mainly designed for dust collecting application, with characteristic of high flow value, long working life and fast switch response, to ensure the steady function of dust removing system

2, the diaphragms with high quality and proffessional design for pulse valve working life
