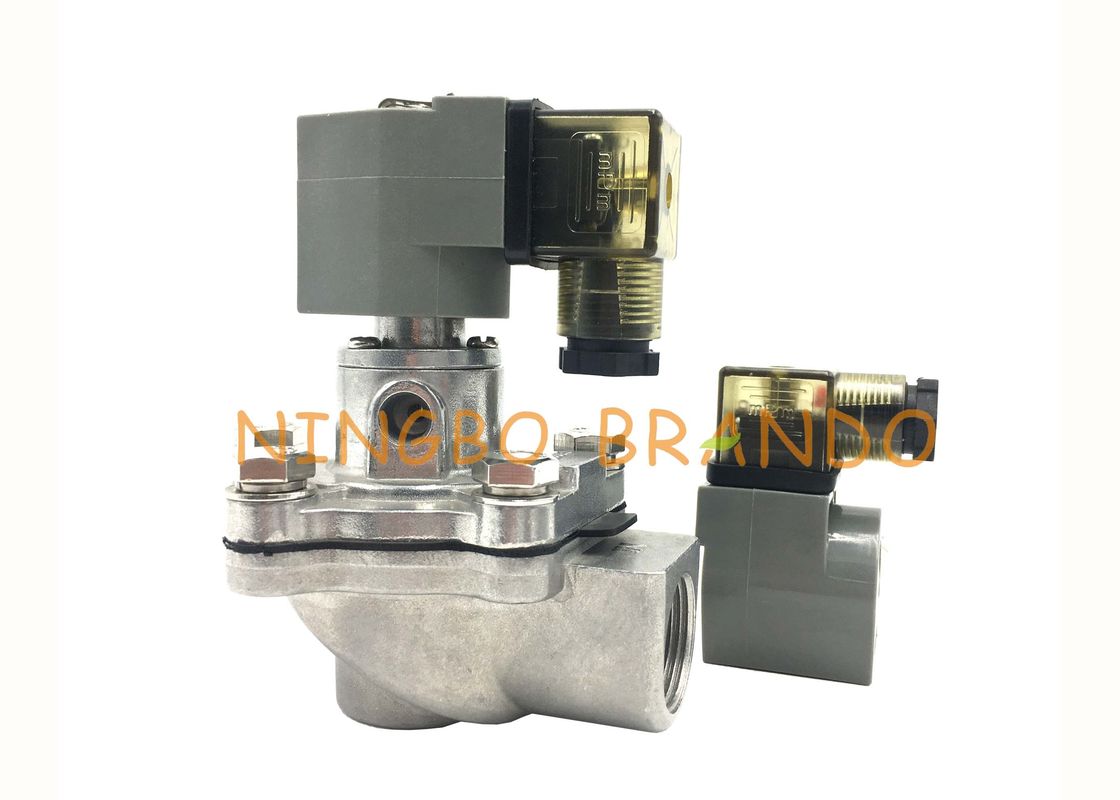

220V AC 24V DC DN20 3/4 Inch CA20T Normally Closed Right Angle Diaphragm Dust Collector Pulse Valve

220V AC 24V DC DN20 3/4 Inch CA20T Normally Closed Right Angle Diaphragm Dust Collector Pulse Valve

  • 220V AC 24V DC DN20 3/4 Inch CA20T Normally Closed Right Angle Diaphragm Dust Collector Pulse Valve
  • 220V AC 24V DC DN20 3/4 Inch CA20T Normally Closed Right Angle Diaphragm Dust Collector Pulse Valve
  • 220V AC 24V DC DN20 3/4 Inch CA20T Normally Closed Right Angle Diaphragm Dust Collector Pulse Valve
  • 220V AC 24V DC DN20 3/4 Inch CA20T Normally Closed Right Angle Diaphragm Dust Collector Pulse Valve
220V AC 24V DC DN20 3/4 Inch CA20T Normally Closed Right Angle Diaphragm Dust Collector Pulse Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: CA20T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-7 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 80000 sets per month
Contact Now
Detailed Product Description
Place Of Origin: Zhejiang China Port Size: G3/4 DN20
Connection Type: Female Thread Nonimal Diameter: φ20mm
Body Material: Aluminum Voltages: DC24V, AC110V, AC220V, AC230V
Diaphragm Material: Nitrile Or Viton Working Pressure: 0.3-0.8 MPa
Environment Temperature: -5℃-55℃ Model Number: CA20T
High Light:

Goyen Dust Collector Valve

,

Goyen Pulse Jet Valve

,

Goyen Solenoid Valve

220V AC 24V DC DN20 3/4 Inch CA20T Normally Closed Right Angle Diaphragm Dust Collector Pulse Valve

DESCRIPTION
High performance diaphragm valve with threaded connection. Aluminum material body more light and convenient to change .Outlet at 90° to inlet.

Goyen type T-series is designed for dust collect in factory,grain agriculture and feed and so on. These power pulse valves can be orientated in any position other than upside down or inverted. The temperature range of the threaded valves depends on the chosen model and diaphragm:
1. Nitrile diaphragms: -40 °C (-40°F) to 82°C (179.6°F)
2. Viton diaphragms -29°C (-20.2°F) to 232°C (449.6°F)



SUITABLE FOR
Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.



Main dimension of G 3/4 DN20 CA20T Goyen Type Dust Collector Pulse Valve:

220V AC 24V DC DN20 3/4 Inch CA20T Normally Closed Right Angle Diaphragm Dust Collector Pulse Valve 0



Technical parameters of Goyen Type T Series Reverse Pulse Jet Valves:

Model numbers CA15T CA20T CA25T CA35T CA40T CA50T CA62T CA76T
Nonimal diameter φ15 φ20 φ25 φ35 φ40 φ50 φ62 φ76
Port size G1/2'' G3/4'' G1'' G1-1/4'' G1-1/2'' G2'' G2-1/2'' G3''
Weighgts (kg) 0.6 0.6 0.72 1.1 1.5 2.9 3.4 4.8
Operation Internal pilot
Working pressure 0.3-0.8 mpa
Environment temperature -5℃-55℃
Relative Humidity ≤85%
Operating medium Compressed air
Protection class IP 65
Service life Over 1000000 times
Voltages DC24V, AC110V, AC220V, AC230V



Details of G 3/4 CA20T Goyen Type Diaphragm Valve In Reverse Pulse Jet System:

220V AC 24V DC DN20 3/4 Inch CA20T Normally Closed Right Angle Diaphragm Dust Collector Pulse Valve 1

Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)



Individual Packing of G3/4 CA20T Goyen Type Impulse Diaphragm Valve In dust collector:

220V AC 24V DC DN20 3/4 Inch CA20T Normally Closed Right Angle Diaphragm Dust Collector Pulse Valve 2

Youtube video of CA20T G3/4 Goyen Type Dust Collector Pulse Solenoid Valve:



MAINTENANCE
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.



INSTALLATION
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4. Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.
