|Place of Origin:||China|
|Minimum Order Quantity:||1 pc|
|Packaging Details:||inner boxes,cartons,pallets|
|Delivery Time:||7 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||100000pcs per month|
|Body Material:||Aluminum Alloy||Seal Material:||NBR, FKM|
|Port Size:||G 1 1/2 Inch||Orifice Diameter:||40mm|
|Number Of Diaphragm:||2||Action:||Pilot Operated|
|Pressure Range:||0.1 MPa~0.8 MPa||Temperature Range:||-25℃ To +80℃|
pulse jet valves,
solenoid pulse valve

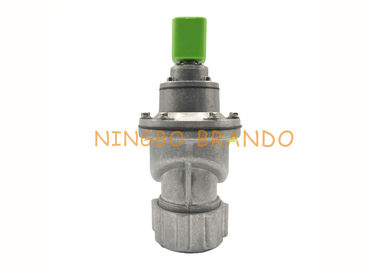

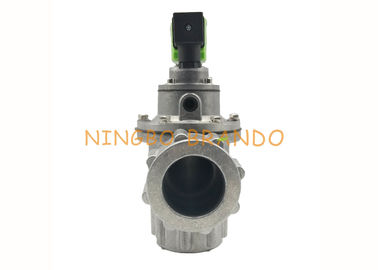

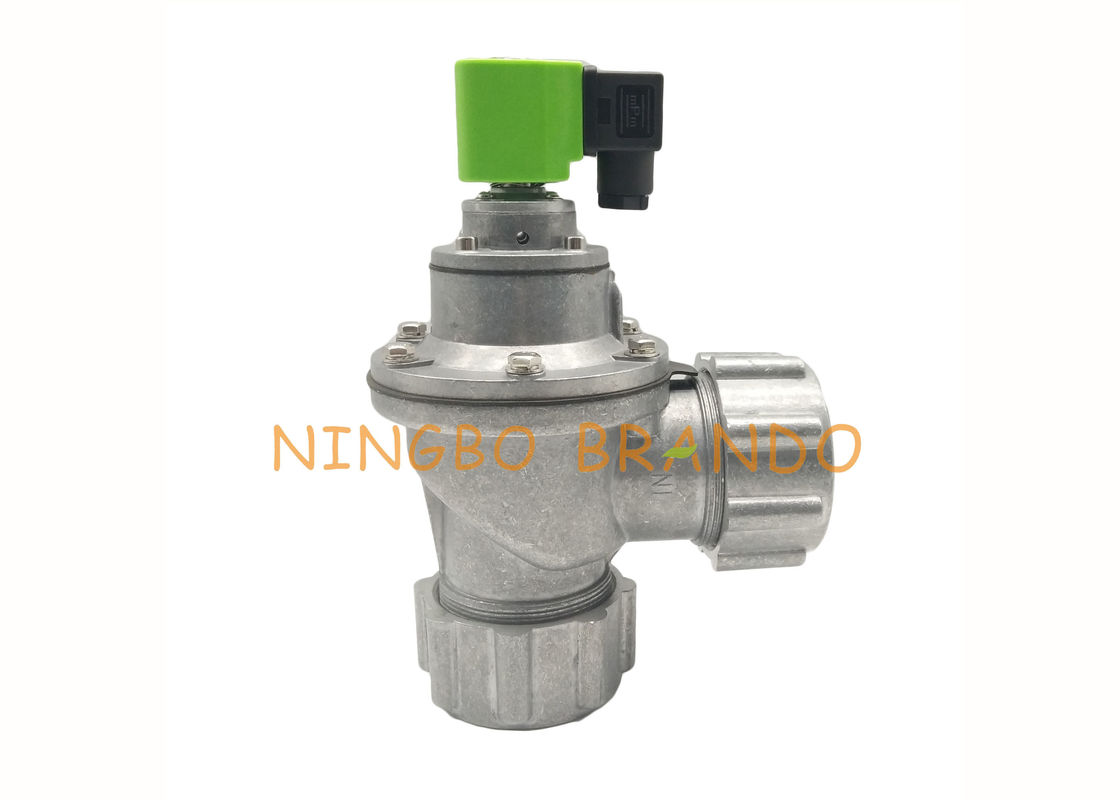

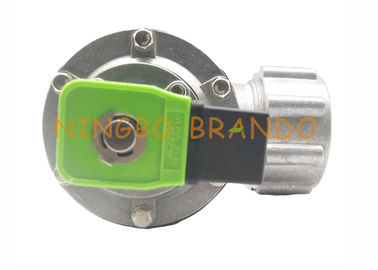

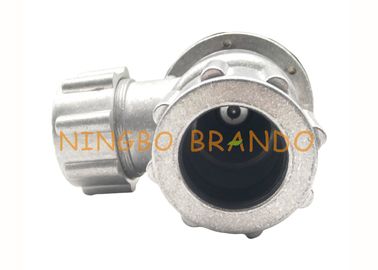

1 1/2'' Inch DN40 DMF-ZM-40S Right Angle Aluminum Alloy Body Dust Collector Control Valve
The installment introduction:
1. First, Confirm the pulse valve in good condition and then installed
2. Pulse valve will be installed directly the outer wall of flange of gas manifold. The spray pipe across the gas manifold. According to the drawing and manual, the pulse valve matching appropriate spray pipe and installation. To avoid the valve install in the air manifold bottom. If the pulse valve matched trachea and connector, the connector will be used for sealing purpose only. It can not as structural support components. It can not rely on the straight connector fixed spray torch and package. The spray pipe and air manifold must be fixed independent.
3. To tighten the hard nut, the maximum torque of 20 N*m.Tighten the trachea, torsion of 20 N*m.
4. The connection control wire needs connect of every electric control valve seat. Pay attention to the line adown to prevent rain waterproof. Or through the joint and nylon pipe, it will connect the pulse valve and electromagnetic assembly boxes of nylon pipe connection.
5. To ensure that provide compressed air clean and dry. The air manifold system provides moderate pressure and check for leaks installation. ( it can brush on soap and water, check whether the interface is bubble). Pressure was carried out on the air bag inflated (pressure of the valve is around 0.03 ~ 0. 86 mpa), recommend for air pressure 0.8 mpa maximum
6. Testing the pulse valve blowing, listening all the pilot valve whether it is normal operation and whether the pulse blowing sound is clear.
The exhaust chamber volume of improved DMF pulse valve is increased. The permeability magnetic material of pulse valve is increased, and also, the materials of structure of diaphragm and pressure spring are improved, so that the exhaust volume of valve is increased to raise the magnetic strength and sensitivity as well as the element reliability and operation stability of pulse valve. Its service life will be greatly prolonged.
Technical data chart of DMF ZM series solenoid pulse valves in industrial filter use:
|Port Size||3/4 Inch||1||1 1/2|
|Number Of Diaphgrams||1||1||2|
|Voltage||AC220V, AC110V, AC24V, DC24V|
|Temperature||-25℃ to +80℃|
Dimension Of DMF-ZM-40S fixed nut pulse valve for bag filter
Details About DMF Electromagnetic Valve For Dust Collector
Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)
More Details About Pulse Jet Valve On Youtube
Features Of DMF-ZM Series Pulse Jet Valve
1.We Can provide three specifications of valves from 20, 25, and 40S for the selection of pulse bag dust collectors.
2.The valve body and valve cover are densely die-cast, anti-corrosion performance.
3.The gasket on the diaphragm is made of metal and rubber, which has good rigidity and does not leak.
4.The electromagnetic pilot head has a large suction force and is sensitive and reliable.
5.The performance is stable and reliable, and the service life of the diaphragm reaches more than one million times or three years.
A. The inlet and outlet ends of the nozzle and the injection pipe inserted into the electromagnetic pulse valve should be maintained at a certain depth. 20 valves is not less than 15 mm.
B. The ZM valve body cannot be used to support and fix the air distribution box (air bag) and the blowing pipe. Special measures shall be taken to support and fix it.
Contact Person: Brandon
