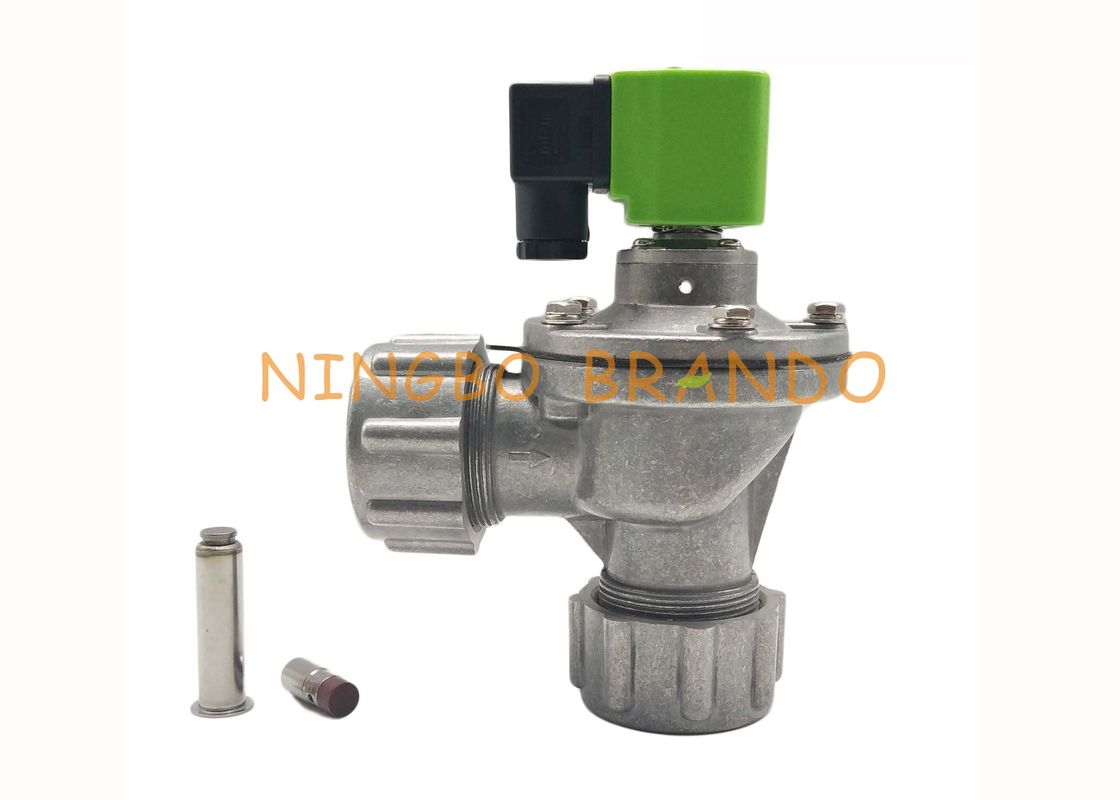

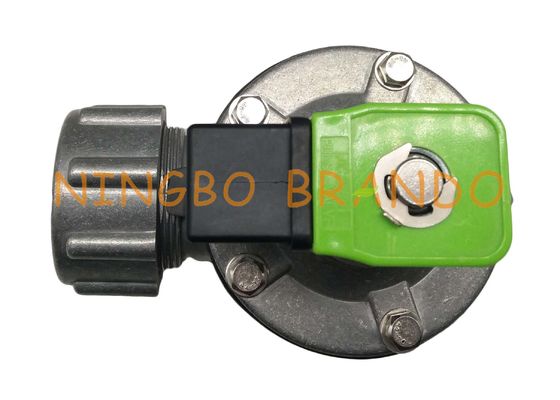

110V AC 12V DC 1" Inch DN25 DMF-ZM-25 Right Angle Aluminum Alloy Body Dust Collector Valve

110V AC 12V DC 1" Inch DN25 DMF-ZM-25 Right Angle Aluminum Alloy Body Dust Collector Valve

  • 110V AC 12V DC 1" Inch DN25 DMF-ZM-25 Right Angle Aluminum Alloy Body Dust Collector Valve
  • 110V AC 12V DC 1" Inch DN25 DMF-ZM-25 Right Angle Aluminum Alloy Body Dust Collector Valve
  • 110V AC 12V DC 1" Inch DN25 DMF-ZM-25 Right Angle Aluminum Alloy Body Dust Collector Valve
  • 110V AC 12V DC 1" Inch DN25 DMF-ZM-25 Right Angle Aluminum Alloy Body Dust Collector Valve
  • 110V AC 12V DC 1" Inch DN25 DMF-ZM-25 Right Angle Aluminum Alloy Body Dust Collector Valve
110V AC 12V DC 1" Inch DN25 DMF-ZM-25 Right Angle Aluminum Alloy Body Dust Collector Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: DMF-ZM-25
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Body Material: Aluminum Alloy Seal Material: NBR, FKM
Power: Solenoid Application: Dust Collector
Port Size: G 1Inch Orifice Diameter: 25mm
Number Of Diaphragm: 1 Action: Pilot Operated
Pressure Range: 0.1 MPa~0.8 MPa Temperature Range: -25℃ To +80℃
High Light:

pulse jet valves

,

solenoid pulse valve

110V AC 12V DC 1'' Inch DN25 DMF-ZM-25 Right Angle Aluminum Alloy Body Dust Collector Valve



Description:



MF-ZM-25 DV24V/AC220V DN25 diaphragm valve with dresser nut couplings 1. Right angle diaphragm valve system with special springless piston/diaphragm design offers highest peak pressure and best flow performance operating features required for dust collector applications. 2. The high quality diaphragm guarantees a long operating life and a large temperature range. 3. Possible to apply different combinations of pitch distances and up to 24 valves.. 4. Each to connect to other tank systems.



DMF-ZM-25 DV24V/AC220V DN25 diaphragm valve with dresser nut couplings

1. Right angle diaphragm valve system with special springless piston/diaphragm design offers highest peak pressure and best flow performance operating features required for dust collector applications.
2. The high quality diaphragm guarantees a long operating life and a large temperature range.
3. Possible to apply different combinations of pitch distances and up to 24 valves..
4. Each to connect to other tank systems. Service connections for different accessories such as: filter regulator, pressure gauge, safety and automatic/manual drain valve.
5. Several blow pipe connections available, such as: quick mount, push-in, hose or threaded connection.



Technical data chart of DMF ZM series solenoid pulse valves in industrial filter use:

Moder Number DMF-ZM-20 DMF-ZM-25 DMF-ZM-40S
Nominal Size 20 25 40
Port Size  3/4 Inch 1 1 1/2
Blowing Area(m2) 3.5~6 8~10 12~16
Number Of Diaphgrams 1 1 2
KV 17.55 26.16 45.82
CV 20.48 50.53 53.47
Pressure  0.1Mpa~08Mpa
Voltage AC220V, AC110V, AC24V, DC24V
Temperature -25℃ to +80℃



Dimension Of DMF-ZM-25 fixed nut pulse valve for bag filter

Dimension Of DMF*ZM-20

Details About DMF Electromagnetic Valve For Dust Collector

Details About DMF-ZM-20

Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)



More Details About Pulse Jet Valve On Youtube



Features Of DMF-ZM Series Pulse Jet Valve



1.We Can provide three specifications of valves from 20, 25, and 40S for the selection of pulse bag dust collectors.

2.The valve body and valve cover are densely die-cast, anti-corrosion performance.

3.The gasket on the diaphragm is made of metal and rubber, which has good rigidity and does not leak.

4.The electromagnetic pilot head has a large suction force and is sensitive and reliable.

5.The performance is stable and reliable, and the service life of the diaphragm reaches more than one million times or three years.



Note



A. The inlet and outlet ends of the nozzle and the injection pipe inserted into the electromagnetic pulse valve should be maintained at a certain depth. 20 valves is not less than 15 mm.
B. The ZM valve body cannot be used to support and fix the air distribution box (air bag) and the blowing pipe. Special measures shall be taken to support and fix it.
