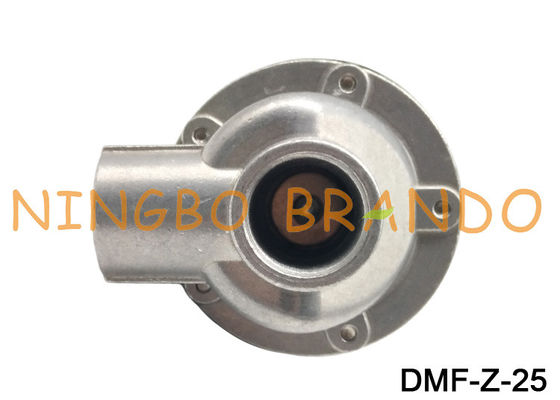

1 Inch Right Angle Pneumatic Pulse Valve Die Casting Aluminum Body AC220V AC110V AC24V DC24V

1 Inch Right Angle Pneumatic Pulse Valve Die Casting Aluminum Body AC220V AC110V AC24V DC24V

  • 1 Inch Right Angle Pneumatic Pulse Valve Die Casting Aluminum Body AC220V AC110V AC24V DC24V
  • 1 Inch Right Angle Pneumatic Pulse Valve Die Casting Aluminum Body AC220V AC110V AC24V DC24V
  • 1 Inch Right Angle Pneumatic Pulse Valve Die Casting Aluminum Body AC220V AC110V AC24V DC24V
  • 1 Inch Right Angle Pneumatic Pulse Valve Die Casting Aluminum Body AC220V AC110V AC24V DC24V
  • 1 Inch Right Angle Pneumatic Pulse Valve Die Casting Aluminum Body AC220V AC110V AC24V DC24V
1 Inch Right Angle Pneumatic Pulse Valve Die Casting Aluminum Body AC220V AC110V AC24V DC24V
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: DMF-Z-25
Payment & Shipping Terms:
Minimum Order Quantity: 10 pc
Price: $15 to $ 20 per pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Body Material: Aluminum Alloy Seals Material: NBRNBR, HNBR, FKM, EPDM, Silicone, All Available
Working Media: Clean Air Structure: Diaphragm
Power: Solenoid Temperature Of Media: Medium Temperature
Pressure: 0.1~0.8Mpa Voltage: AC220V AC110V AC24V DC24V
High Light:

pulse jet valves

,

solenoid pulse valve

1 Inch Right Angle Pneumatic Pulse Valve Die-casting Aluminum Body AC220V AC110V AC24V DC24V



DMF-Z-25 pulse jet valve is a kind of right angle valve,which inlet and outlet at 90 °. It simplifies the connection between gas bag and blowing tube of a dust collector. It can provide stronger airflow and meet dust removing requirements.



Working Principle:

1.Electromagnetic pulse valve consists of an electromagnetic pilot head, diaphragm and a valve body, a diaphragm cavity after an area larger than the front cavity area, pressure force, so that the film is in the closed position.
2.Electronic instrument input signals, so that the electromagnetic pilot head is movable column, opens the discharge hole, after the diaphragm cavity pressure gas discharge quickly, before the diaphragm cavity pressure gas lift the diaphragm, open channel, pulse valve for injection.
3.Electric pulse signal disappears, electromagnetic pilot head spring to move the column reset immediately closed unloading hole, after the diaphragm cavity gas pressure and spring force so that the diaphragm closes the passageway, valve stop blowing.
4.Diaphragm damping hole on the movable column, when the pilot head lift gas pressure unloading, the damping the effects of airflow, when unloading hole closed, so that the pressure of the gas to rapidly filled with rear cavity, the diaphragm closes the passageway, stop blowing.



Specification

Model No. DMF-Z-25
Port Size  G 1''
Number of Diaphragm  1
KV 26.16
CV 30.53
Nominal size: 25mm
Diaphragm Material  NBR (Common), all Available
Temperature Range -25℃ to +80℃ or customized
Working Pressure  0.1~0.8Mpa
Voltage  AC220V, AC110V, AC24V, DC24V



Dimension

Overall Dimension



Material Construction

Part Name Material
Valve Body ADC12 Aluminum Die-casting
Armature  430FR Stainless Steel
Diaphragm & Seals  NBRNBR, HNBR, FKM, EPDM, Silicone, All Available
Coil  Copper Wire
Spring  321 Stainless Steel





Details about Diaphragm of DMF-Z-25

Details about Diaphragm of DMF-Z-25

More Details About DMF-Z-25 Solenoid Pulse Valve On YOUTUBE:



Our advantage

1.Our Service purposes is Focus on your demands, Offer you best solution.

1). Located in a seaside city Ningbo, Well-developed transportation.

2). We work on designing and manufacturing solenoid coil, solenoid operator and solenoid valve for more than 10 years.

3). We are dedicated to providing high quality products and service to our customers.

4). We also provide customized services.

Contact us if some points you have doubt
Contact us if somewhere need to change
Contact us if not the one you are looking for
Contact us if you are doing designing



2.High quality products

Take DMF-Z-25 as an example.



1).Easy to install
A). Prepare the pipes suit valve specification
B). Ensure tank and pipes are free from dirt, rust or other particulate.
C). Ensure supply air is clean and dry.
D). Mount valve to inlet pipes and blowtube to valve, tighten dresser nuts.
E). Make electrical connections to solenoid
F). Apply moderate pressure to system and check for installation leaks.
G). Fully pressurise system.
H). Test fire and listen for proper actuation and crisp pulse noise



2.Can withstand high pressure
High quality die casting Aluminum alloy valve body with good resistance to moisture and corrosion,would hold a pressure up to 0.8Mpa. Diaphragm Life over One million blows or 3 years.


3.Application
Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.



Welcome to your any question and inquiry!
