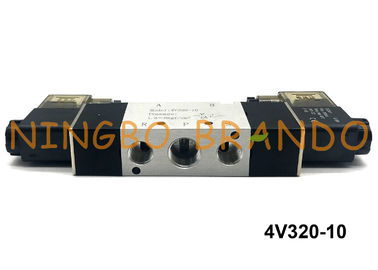

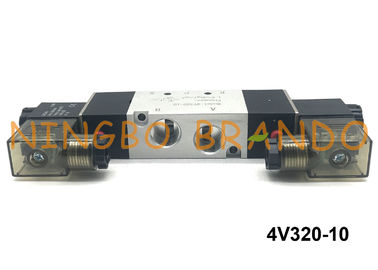

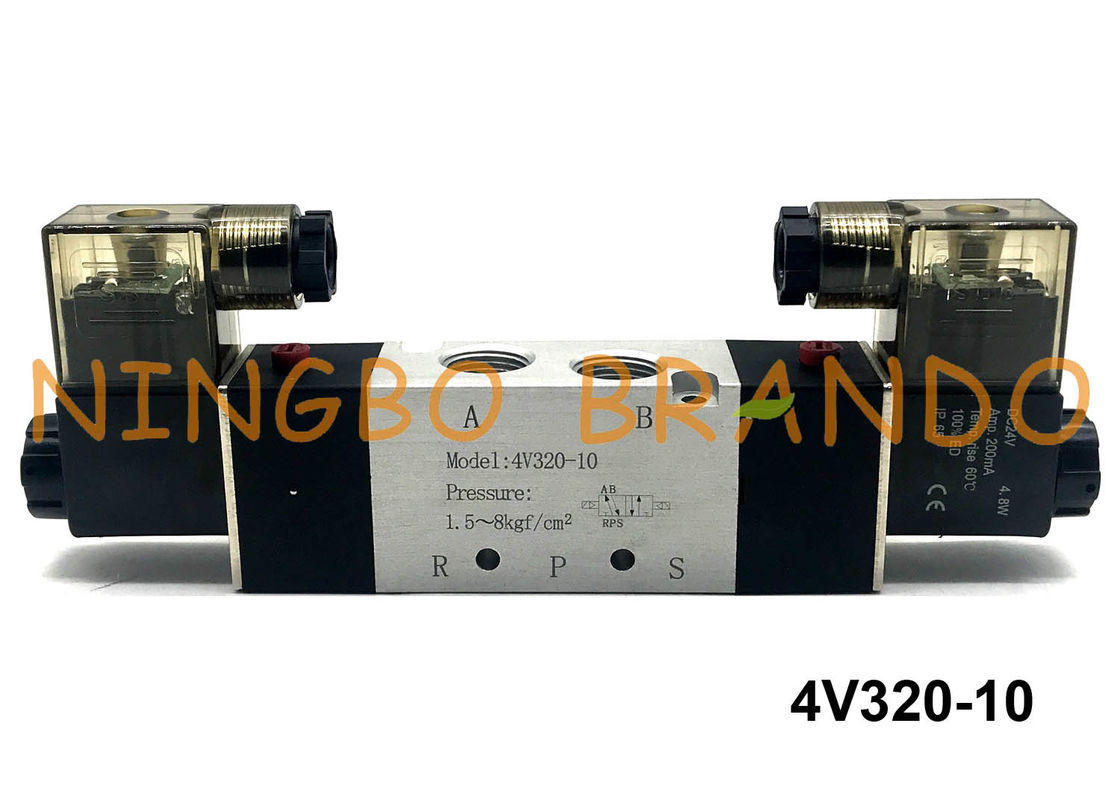

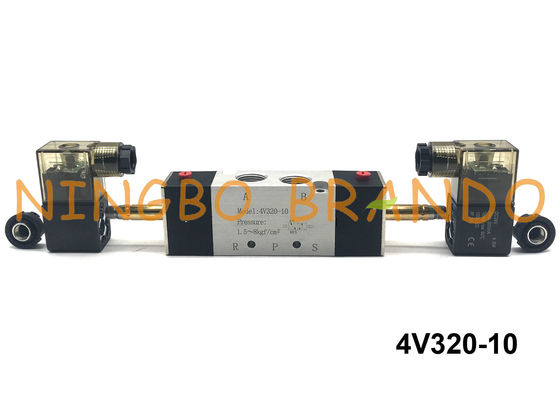

3/8'' NPT 4V320-10 AirTAC Type Double Solenoid Valve 2 Position 5 Way DC12V DC24V AC110V AC220V
4V320-10 is a directional control pneumatic solenoid valve with four-way operation and five ports (P = pressure, A = outlet, R = exhaust at port A). Four-way two-position valves are usually used to fully expand double-acting (return air) cylinders, or for similar operations. The solenoid valve is electrically controlled to direct the air flow to a sequential operation in the pneumatic system. Solenoid valves are used to control cylinders, rotary actuators, fixtures and other pneumatic equipment. Use manifolds to streamline a set of valves. The modular system even allows network control of the valve block.
YouTube video of 4V320-10 AirTAC Type 5/2 Way Pneumatic Solenoid Valve:
Main dimension of G3/8'' 4V320-10 AirTAC Type Double Solenoid Valve:
Part details of 4V320-10 Airtac Type 2 Position 5 Way Solenoid Air Valve:
Specifications of 4V300 Series AirTAC Type Directional Control Valves:
Model
4V310-08
4V320-08
4V330C-08
4V330E-08
4V330P-08
4V310-10
4V320-10
4V330C-10
4V330E-10
4V330P-10
Fluid
Air(to be filtered by 40 μ m filter element)
Acting
Internal pilot or external pilot
Port Size
In=Out=Exhaust=1/4''
In=Out=3/8'' Exhaust=1/4''
Orifice Size
25.00 mm2 (Cv=1.40)
18.00 mm2 (Cv=1.00)
30.00 mm2 (Cv=1.68)
18.00 mm2 (Cv=1.00)
Valve Type
5 port 2 position
5 port 3 position
5 port 2 position
5 port 3 position
Operating Pressure
0.15~0.8MPa(21~114psi)
Proof Pressure
1.5MPa(215psi)
Temperature ℃
5~50
Material of Body
Aluminum alloy
Max. frequency
4 cycle/sec
4 cycle/sec
4 cycle/sec
4 cycle/sec
Factory Production of 4V Series Airtac Type Pneumatic Solenoid Valves:
