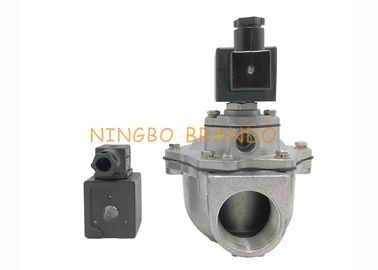

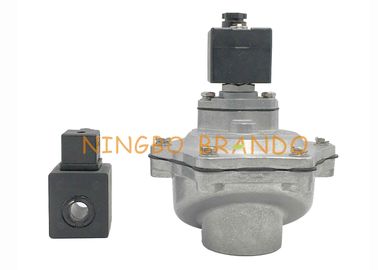

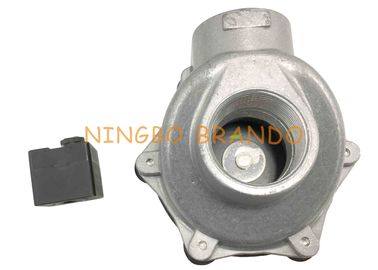

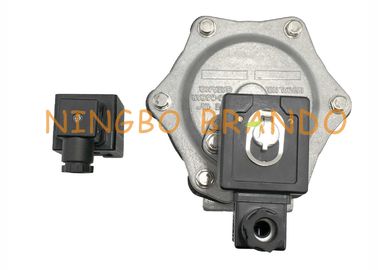

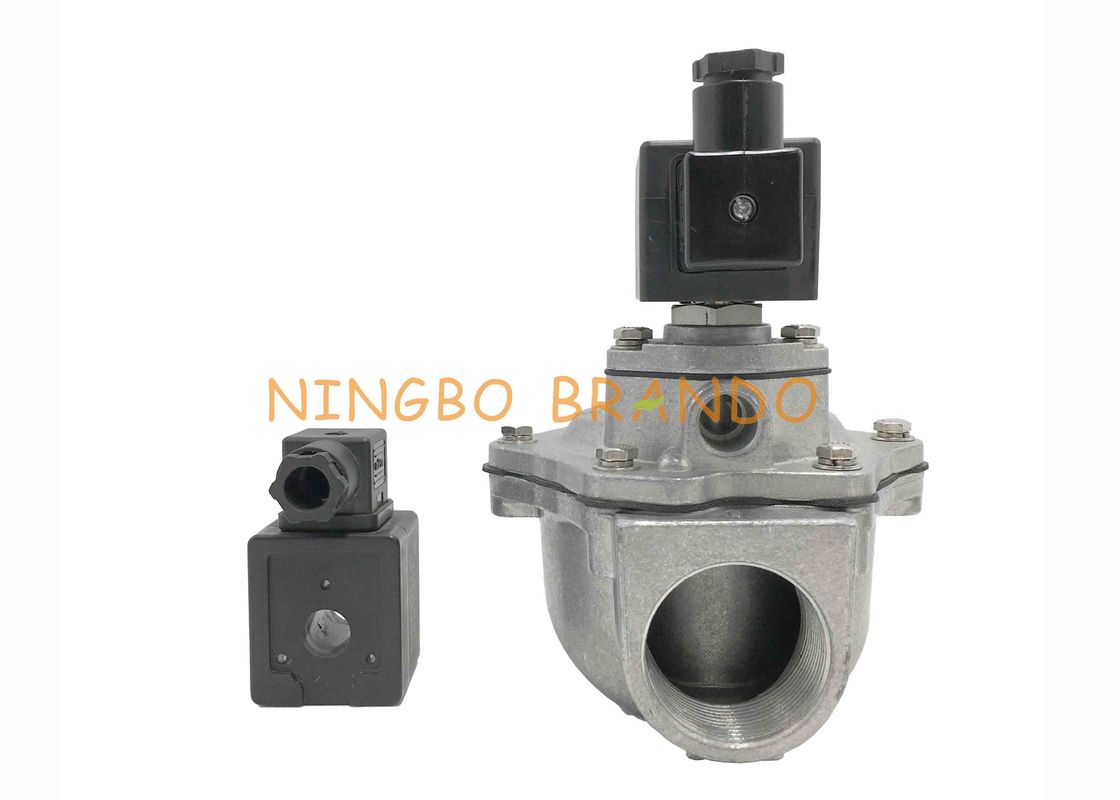

Name: AC 110V DC 12V 1 1/2" DN40 SCG353A047 Threaded Port NBR Diaphragm Power Pulse Valves For Dust Collector
Brand: Brando
SKU: SCG353A047
Rating: 4.7 (196 reviews)

Home Products Pulse Jet Valve

AC 110V DC 12V 1 1/2" DN40 SCG353A047 Threaded Port NBR Diaphragm Power Pulse Valves For Dust Collector

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE, ISO
Model Number:	SCG353A047

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiation
Packaging Details:	PVC bag, inner box, canton, then packed by pallet
Delivery Time:	One weeek after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Model Number:	SCG353A047	Port Size:	1 1/2 Inch
Material:	Aluminum, SS304, Enamelled Wire	Voltage:	DC, AC All Available
Working Pressure:	0.4--0.6Mpa	Working Life:	More Than 1 Million Times
Temperature:	-5℃ To +55℃	Application:	Solenoid Valve
High Light:	ASCO Pulse Jet Valve , ASCO Dust Collector Valve , ASCO Pulse Diaphragm Valve

AC 110V DC 12V 1 1/2 '' DN40 SCG353A047 Threaded Port NBR Diaphragm Power Pulse Valves For Dust Collector

Product Features:
1. Ready for use in any dust collector design
*For noxious substance control and environmental dust management

2. Cost savings
*Increased pulse efficiency, reduced energy consumption
*Durable materials and wide temperature range enhance lifespan
*Longer filter life, lower dust collector OPEX

3. Compliance
*With environmental and health & safety regulations

4. Ease of installation
*No welding required with 90° connections directly onto squaretanks
*Camlock adapter available for attachment to round tanks

Due to pulse valve diaphragm needs from time to time opening and closing action is a flexible mechanism to control the air circulation, has good flexibility and requirements, also demanded the sealing as high as possible, so the pulse valve diaphragm material is directly related to the service life of pulse valve diaphragm and using effect, in other words, the pulse valve diaphragm is good or bad will directly affect the working stability of pulse bag filter soot cleaning system, is directly related to the use of dust removal equipment cost, general

pulse valve diaphragm has the commitment, the number of service life or actions using high-quality pulse valve diaphragm can directly reduce the cost of the use of dust removal equipment.

ASCO Type Series Model Specification:

Model NO.	SCG353A043	SCG353A044	SCG353A047	SCG353A050	SCG353A051
Port Size	G3/4''	G1''	G1-1/2''	G2''	G2-1/2''
Normal Size	φ20mm	φ25mm	φ40mm	φ50mm	φ62mm
Working Pressure	0.3 to 0.8MPa
Environment Temperature	-5 to +55℃
Relative Humidity	≤85%
Operating Medium	Dry clean compressed air
Service Life	Over one million times
Voltages	AC24V, AC110V, AC220V, DC24V

Overall Dimensions of ASCO Pulse valve

AC 110V DC 12V 1 1/2" DN40 SCG353A047 Threaded Port NBR Diaphragm Power Pulse Valves For Dust Collector 0

ASCO Type Electromagnetic Pulse Valve Detail:

Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)

Pulse Valve Internal Structure and Main Parts:

Part Name	Material
Solenoid coil	high quanlity enamelled wire
Armature assembly	SS304, 430FR
Small common cap	ADC aluminum
Diaphragm	NBR (nitrile, buna-n)
Top end cap	ADC aluminum
Big spring	SS304
Screws	SS302
Seal	NBR, Viton, all can be customized
Main body	ADC aluminum

Advantages of ASCO pulse valve:

1, mainly designed for dust collecting application, with characteristic of high flow value, long working life and fast switch response, to ensure the steady function of dust removing system

2, the diaphragms with high quality and proffessional design for pulse valve working life
