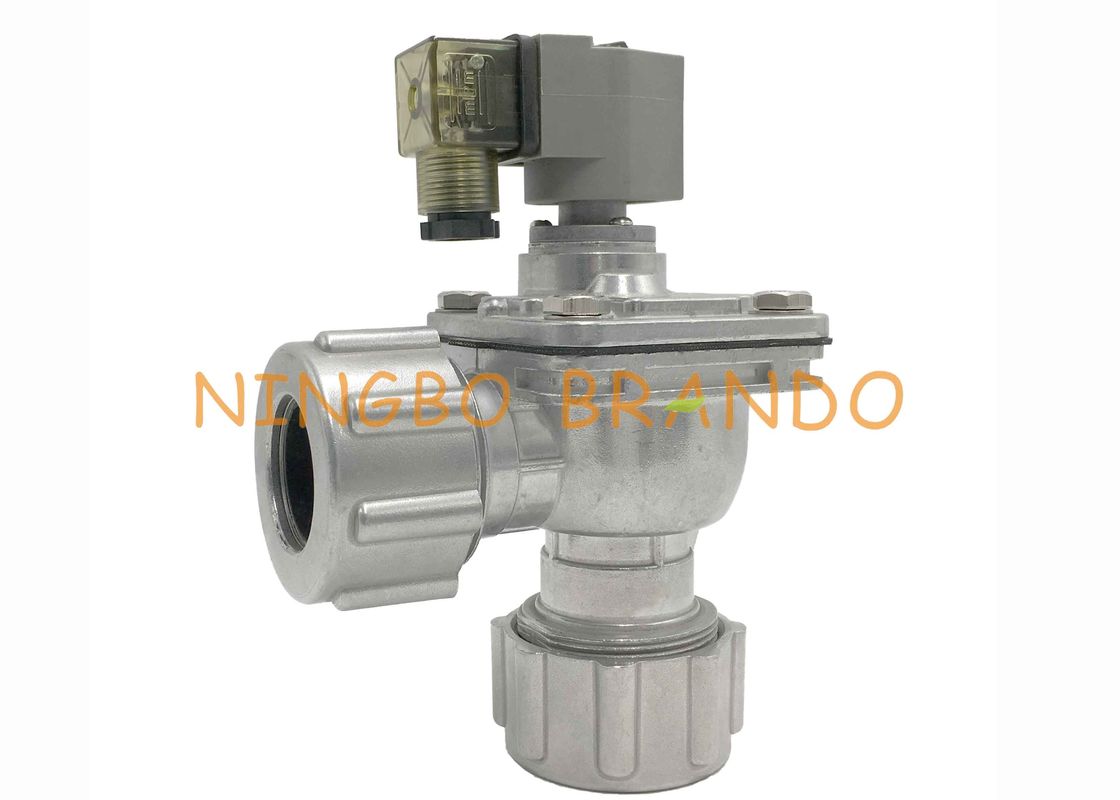

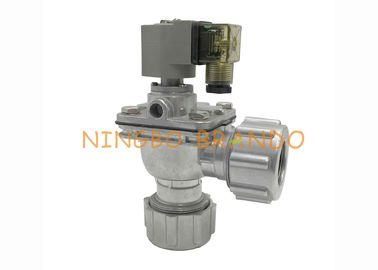

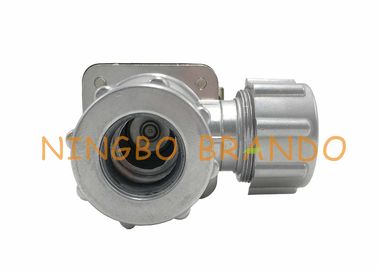

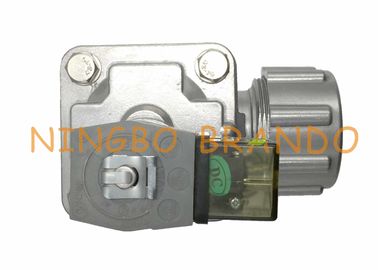

AC 220V DC 24V 1 Inch DD Series Goyen Type CA25DD Pneumatic Pulse Valve With Thread Connection

AC 220V DC 24V 1 Inch DD Series Goyen Type CA25DD Pneumatic Pulse Valve With Thread Connection

  • AC 220V DC 24V 1 Inch DD Series Goyen Type CA25DD Pneumatic Pulse Valve With Thread Connection
  • AC 220V DC 24V 1 Inch DD Series Goyen Type CA25DD Pneumatic Pulse Valve With Thread Connection
  • AC 220V DC 24V 1 Inch DD Series Goyen Type CA25DD Pneumatic Pulse Valve With Thread Connection
  • AC 220V DC 24V 1 Inch DD Series Goyen Type CA25DD Pneumatic Pulse Valve With Thread Connection
AC 220V DC 24V 1 Inch DD Series Goyen Type CA25DD Pneumatic Pulse Valve With Thread Connection
Product Details:
Place of Origin: China
Brand Name: Drando
Certification: CE, ISO
Model Number: CA25DD
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 7 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000PCS PER MONTH
Contact Now
Detailed Product Description
Part Name: Pulse Jet Valve Nominal Port Size: 1"
Material: Alumininum, Diecast Number Of Diaphragm: 1 Pc
Pulse Valve Type: Threaded Ports Working Voltage: 24V AC, 110V AC, 220V AC; 24V DC
Temperature: -5℃ To +55℃ Diaphragm Material: NBR(common)
High Light:

Goyen Pulse Valve

,

Goyen Pulse Jet Valve

,

Goyen Solenoid Valve

AC 220V DC 24V 1 Inch DD Series Goyen Type CA25DD Pneumatic Pulse Valve With Thread Connection

Pulse Jet Valve Maintenance:

Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.

Diaphragm and pilot inspection should be conducted annually.



Features of Our Performance Solenoid Valve Which is Similar as CA/RCA25DD Type:

1, Environmentally endurance tested at the extremes
2, Proprietary engineering thermoplastic elastomer blend for consistent performance throughout the temperature and pressure range
3, 1 MILLION CYCLES guaranteed
4, NO spring failures
5, Cleans more filter area per valve than before
6, Class leading performance coupled with extremely rapid response



Air Clean System Diaphragm Pulse Jet Valve Construction:

AC 220V DC 24V 1 Inch DD Series Goyen Type CA25DD Pneumatic Pulse Valve With Thread Connection 0

Number Part Name Material
1 Solenoid coil Copper wire
2 Armature aseembly 430FR SS
3 Small top cap Alumininum, ADC
4 Middle cap Alumininum, ADC
5 Small spring 304 SS
6 Diaphragm seat PA-66(standard), Viton or Nitrile coated mild steels, Nitrile, Viton or High Density PE
7 Top cap Alumininum, ADC
8 Big spring 304 SS
9 Bolts and Screws 302 or 304 SS
10 Diaphragm seat PA-66(standard), Viton or Nitrile coated mild steels, Nitrile, Viton or High Density PE
11 Valve body Alumininum, ADC
12 Nut Alumininum, ADC
13 Seal mat SS302
14 Seal rubber NBR



1 Inch DD Series Pneumatic Pulse Valve , Diaphragm Valve

CA electro-magnetic pulse valve is a right-angle valve, with the 90 angle between the inlet and outlet, which is suitable for the installation connection between the gas dome and the bag house blow tube to provide good air flow and dust clean pulses satisfying the requirement.
Valve body and cover are pressure die cast aluminum alloy . Normally, diaphragms are made from Buna N elastomer, and are suitable for temperatures ranging from -40 degrees F to 180 degrees F. Viton material diaphragms are option for high temperature applications.



1 Inch DD Series Pulse Jet Valve Technical Parameters:

Part No. CA25DD
Operating pressure 0.3~0.8MPa
Ambient temperature -5~55℃
Relative humidity <85%
Fluid Clean air
Voltage AC110V, AC220V, DC24V
Electric current 0.46A, 0.23A, 0.8A +-10%
Diaphragm life More than 1 milion cycles
Orifice Diameter φ 25mm
Nominal Port Size G1"



Detailes of G1" Nominal Port Size Diaphragm Pulse Jet Valve And It's Overall Dimensions:

AC 220V DC 24V 1 Inch DD Series Goyen Type CA25DD Pneumatic Pulse Valve With Thread Connection 1



Pulse Valve Characteriestic And Performance

Part No. Nominal Port Size (mm) Nominal Port Size (Inch) Number of Diaphragms Flow (Kv) Flow (Cv)
BGD25 25 1" 1 20 23
BGD45 40 1 1/2" 2 44 51



Pulse Jet Valve Installation:

1, Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.

2, Ensure tank and pipes are free from dirt, rust or other particulate.

3, Ensure supply air is clean and dry.

4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.

5, Apply moderate pressure to system and check for installation leaks.

6, Fully pressurise system.

7, Test fire and listen for proper actuation and crisp pulse noise.



Detail Of CA25DD Goyen Type Solenoid Valve In Dust Collector System:

AC 220V DC 24V 1 Inch DD Series Goyen Type CA25DD Pneumatic Pulse Valve With Thread Connection 2

Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)



Youtube Video Of 1 Inch Goyen Type CA25DD Solenoid Valve For Dust Collector:


Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
