BFEC Type G1 Inch Aluminum Dust Collector Pneumatic Pulse Valve With Dresser Nut DMF-ZM-25

BFEC Type G1 Inch Aluminum Dust Collector Pulse Diaphragm Valve With Dresser Nut DMF-ZM-25

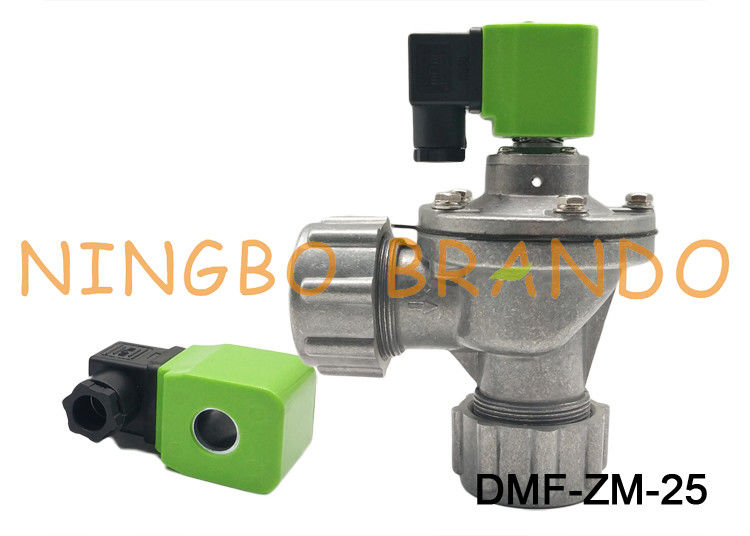

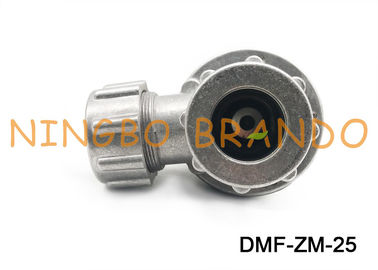

This Valve Below is DMF-ZM series 1'' Right Angle With Aluminum Alloy Body and NBR Diaphgram.

Designed for filter cleaning in dust collectors and baghouses, are diaphragm valves with dresser nut connection ports for reverse pulse jet system.

DMF-ZM-25 is a widely used dust collector Pulse Jet Valve for bag filter.

The Working Princple of DMF-ZM-25:When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.

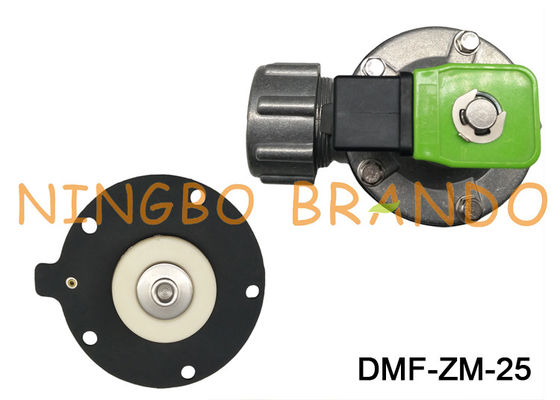

This valve is composed of

Solenoid Coil (Copper Wire),

Plunger Tube Assembly (430FR),

Spring (SS321),

Diaphragm (NBR),

Seal (NBR Normally all available)

Valve Body and Dresser Nut (AluminumAlloy)

Specification of DMF-ZM-25 1inch Solenoid Pilot valve pulse jet valve:

Overall Dimension of Pulse Valve DMF-ZM-25 Dust Collector Pulse Valve With Dresser Nut:

Detail About DMF-ZM-25 Normal Colse Electrically controlled pulse valve:

More Details about DMF-ZM-25 On YOUTUBE

The Feature of DMF-ZM-25 Electrically controlled pulse valve:

1) Use in any dust collector design
For noxious substance control and environmental dust management

2)Cost savings
a) Increased pulse efficiency, reduced energy consumption
b) Durable materials enhance lifespan
c) Longer filter life, lower dust collector OPEX

3)Compliance
With environmental and health & safety regulations

4)Ease of installation
Secure and fast piping assembly with 90° dresser nut connections

Application

Suitable for use in dust management systems in all types of industries and processes, including:
cement production
mining applications
silo and conveyor systems, bulk goods handling
general industrial dust collection
improving indoor workplace air quality
preventing harmful emissions
power industry: protecting boilers and gas turbines from dust particles

Installation

1.Connection Pipe Adapted Valve Specification

2.Ensure tank and pipes are free from dirt, rust or other particulate.

3.Ensure supply air is clean and dry.

4.Mount valve to inlet pipes and blowtube to valve, tighten dresser nuts. For your safety do not pressurise system
until all valves and pipes are fully secured.

5.Apply moderate pressure to system and check for installation leaks.

Welcome to your any question and inquiry!
