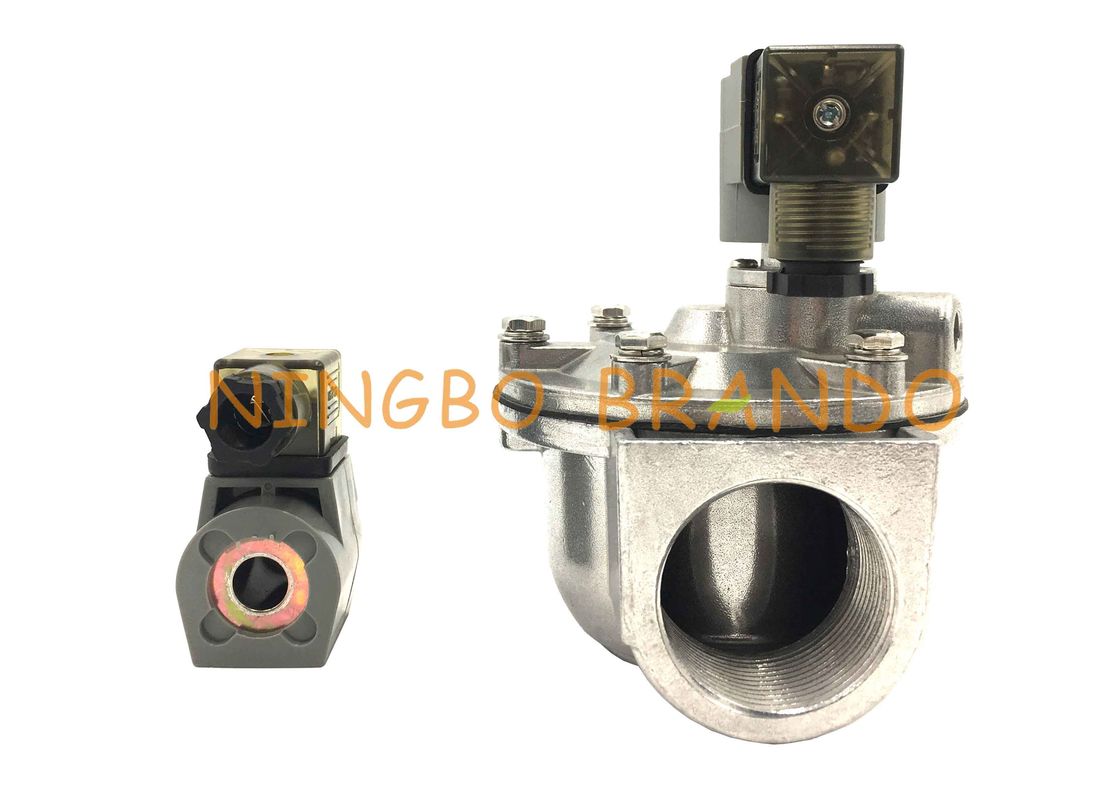

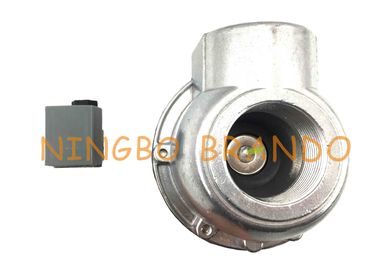

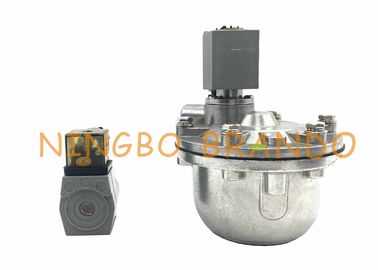

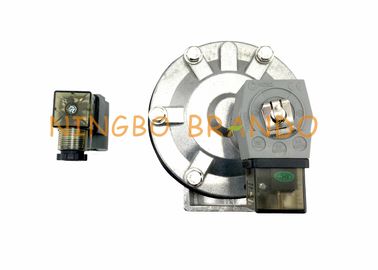

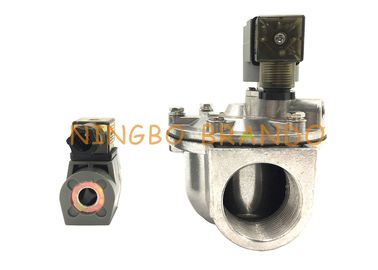

1 1/4 Inch CA35T Goyen Type Right Angle Pulse Jet Dust Collector Valve With Threaded Connection AC 220V DC 24V

1 1/4 Inch CA35T Goyen Type Right Angle Pulse Jet Dust Collector Valve With Threaded Connection AC 220V DC 24V

FUNCTIONAL DESCRIPTION:
Our manifold flat mount valves for reverse pulse jet systems in dust collectors are manufactured from die cast aluminum.

The Goyen MM- and MR-series are designed to operate with air pressures from 0.3 to 8.6 bar, while the Mecair 400 series ranges

from 0.5 to 7.5 bar.

The temperature range of the flanged valves depends on the chosen model and diaphragm:

Nitrile diaphragms: -40°C (-40°F) to 82°C (179.6°F)
Viton diaphragms: -29°C (-20.2°F) to 232°C (449.6°F)

Main dimension of 1 1/4 Inch DN35 CA35T Goyen Type Dust Collector Pulse Valve:

Technical parameters of Goyen Type T Series Reverse Pulse Jet Valves:

Details of 1 1/4 CA35T Goyen Type Diaphragm Valve In Reverse Pulse Jet System:

Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)

 MAINTENANCE
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.

INSTALLATION
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4. Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.
