120/60VAC MP-C-080 ASCO Type Solenoid Coil 238210-132-D 9.10 11.10W 238214-032-D 6.10 8.10W

120/60VAC MP-C-080 ASCO Type Solenoid Coil 238210-132-D 9.10 11.10W 238214-032-D 6.10 8.10W

    • 120/60VAC MP-C-080 ASCO Type Solenoid Coil 238210-132-D 9.10 11.10W 238214-032-D 6.10 8.10W
    • 120/60VAC MP-C-080 ASCO Type Solenoid Coil 238210-132-D 9.10 11.10W 238214-032-D 6.10 8.10W
    • 120/60VAC MP-C-080 ASCO Type Solenoid Coil 238210-132-D 9.10 11.10W 238214-032-D 6.10 8.10W
    • 120/60VAC MP-C-080 ASCO Type Solenoid Coil 238210-132-D 9.10 11.10W 238214-032-D 6.10 8.10W
  • 120/60VAC MP-C-080 ASCO Type Solenoid Coil 238210-132-D 9.10 11.10W 238214-032-D 6.10 8.10W

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: MP-C-080

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-7 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 300000 sets per month
    Contact Now
    Detailed Product Description
    Product Name: MP-C-080 ASCO Type Solenoid Coil Hole Diameter: 14.4mm
    Height: 39.3mm Width: 49.6mm
    Voltage: DC 24V, DC 48V, AC24V, AC48V, AC115V, AC230V Connection Type: Flying Leads, Spade Plug Connection All Available
    Material: Enamelled Copper Wire ED: 100%
    Protection Grade: IP65 Insulation Class: H, F

    120/60VAC MP-C-080 ASCO Type Solenoid Coil 238210-132-D 9.10 11.10W 238214-032-D 6.10 8.10W



    Common features of Brando MP-C-080 solenoid coil:

    1. Using high quality wire which has UL approved;
    2. Using high quality permeablity magnetic material which contain low carbon;
    3. Using high quality housing material like PA66, PBT, PPS, BMC and so on;
    4. Insulation class can be B, F, H, N, C;
    5. Protection class can be IP65, IP67 & IP69K;
    6. We also offer special coils like ex-proof coils, water proof coils and so on;
    7. If you have special requirement, pls feel free to contact us.



    Youtube video of MP-C-080 ASCO Type Solenoid Coil:



    Main dimension of MP-C-080 ASCO Replacement Solenoid Coil:

    120/60VAC MP-C-080 ASCO Type Solenoid Coil 238210-132-D 9.10 11.10W 238214-032-D 6.10 8.10W



    Technical data of MP-C-080 ASCO Type Solenoid Valve Coil:

    Part No
    Voltage
    Wattage
    Class
    238210-032-D
    120/60-110/50VAC
    6.10/8.10W
    F
    238210-052-D
    208/60VAC
    6.10/8.10W
    F
    238210-132-D
    120/60VAC
    9.10/11.10W
    F
    238214-032-D
    120/60VAC
    6.10/8.10W
    F
    238310-004-D
    12VDC
    -
    F
    238410-032-D
    120/60VAC
    6.10/8.10W
    F
    238610-005-D
    24/60-22/50VAC
    10.10W
    F
    238610-032-D
    120/60VAC
    10.10W
    F
    238610-132-D
    120/60VAC
    17.10W
    F
    238614-005-D
    24/60VAC
    10.10W
    F
    238614-032-D
    120/60VAC
    10.10W
    F
    238614-132-D
    120/60VAC
    17.10W
    F
    238710-006-D
    24VDC
    -
    F
    238810-032-D
    120/60VAC
    10.10W
    F



    Fitted Valve of MP-C-080 ASCO replacement solenoid valve coils:

    Ordering code Fitted valve type Fitted valve series
    MP-C-080 ASCO type 2 way solenoid valves 8030 series,8040 series, 8210 series, 8221 series, 8223 series, 8262 series, 8263 series, 8220 series, 8263 series , 8030VM/8215VH Series, 8215VM/8210VH, 8262VH series, 8210LT 8222LT 8262LT/8263LT series, 8264 series, JPIS8262 JPIS8223 series, D8260 D8030 Series, 8210Q 8215Q 8262Q 8262/8263NH series, 8262P series
    ASCO type 3 way solenoid valves 8300 series, 8314 series, 8316 series, 8317 series, 8321 series, 8320 series, 8327 series, 8360 series, 8380 series, 8314 8316 8317 series, 8553 series, D260 series
    ASCO type 4 way solenoid valves 8340 series, 8342 series, 8344 8551 8553 series, 8233 8345 series
    ASCO type dust collector valves 8353 series

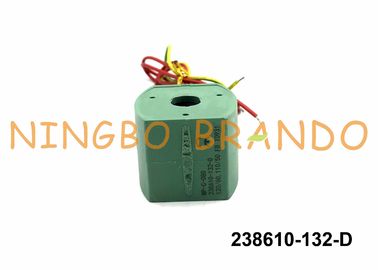

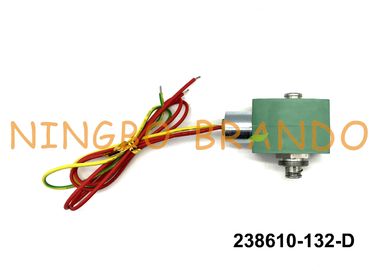

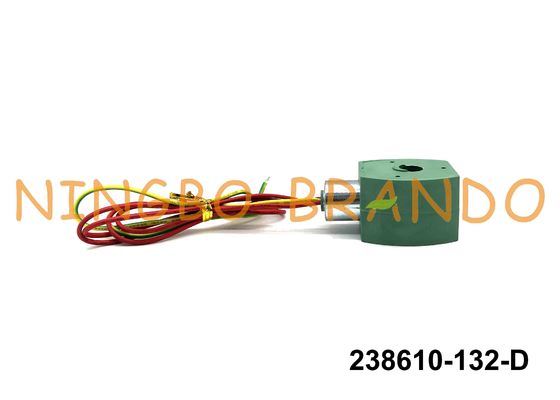

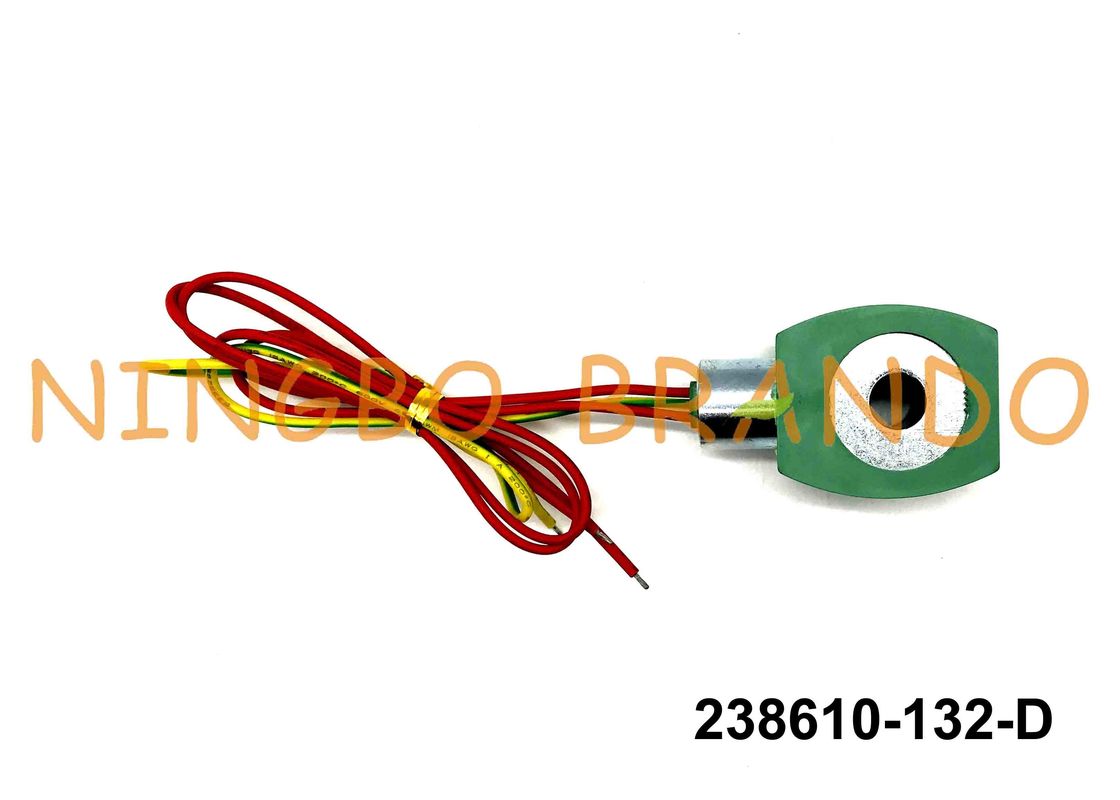

    Details of MP-C-080 ASCO Replacement Solenoid Coil:

    120/60VAC MP-C-080 ASCO Type Solenoid Coil 238210-132-D 9.10 11.10W 238214-032-D 6.10 8.10W



    Prodution of MP-C-080 ASCO Type Red Hat Solenoid Coil:

    120/60VAC MP-C-080 ASCO Type Solenoid Coil 238210-132-D 9.10 11.10W 238214-032-D 6.10 8.10W



    Suitable ASCO type solenoid valve as follows:



    ASCO type 2 way solenoid valves:

    8030 series, 8040 series, 8210 series, 8221 series, 8223 series, 8262 series, 8263 series, 8220 series, 8263 series, 8030VM/8215VH Series, 8215VM/8210VH, 8262VH series, 8210LT 8222LT 8262LT/8263LT series, 8264 series, JPIS8262 JPIS8223 series, D8260 D8030 Series, 8210Q 8215Q 8262Q 8262/8263NH series, 8262P series.



    ASCO type 3 way solenoid valves:

    8300 series, 8314 series, 8316 series, 8317 series, 8321 series, 8320 series, 8327 series, 8360 series, 8380 series, 8314 8316 8317 series, 8553 series, D260 series.



    ASCO type 4 way solenoid valves:

    8340 series, 8342 series, 8344 8551 8553 series, 8233 8345 series.



    ASCO type dust collector valves:

    8353 series.



    It can be supplied with different power consumptions according to specific requirements .
