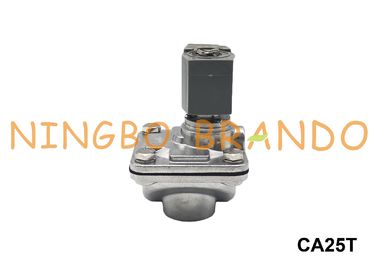

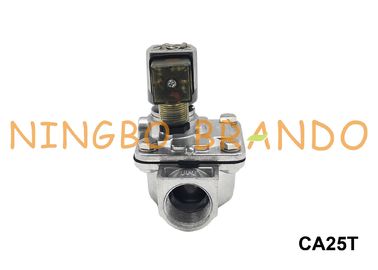

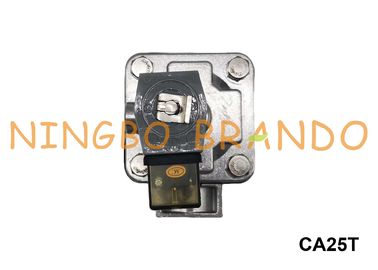

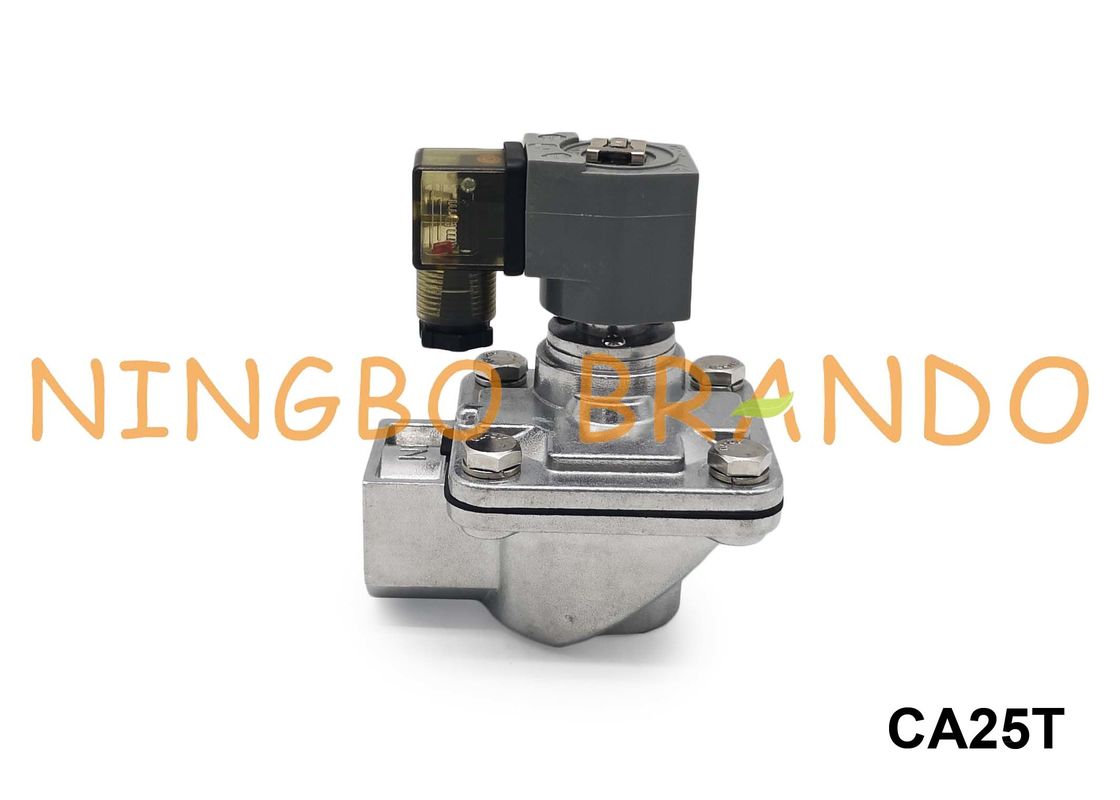

1" CA25T Goyen Type Integral Pilot Operated Dust Collector Impulse Diaphragm Valve

1" CA25T Goyen Type Integral Pilot Operated Dust Collector Impulse Diaphragm Valve

    • 1" CA25T Goyen Type Integral Pilot Operated Dust Collector Impulse Diaphragm Valve
    • 1" CA25T Goyen Type Integral Pilot Operated Dust Collector Impulse Diaphragm Valve
    • 1" CA25T Goyen Type Integral Pilot Operated Dust Collector Impulse Diaphragm Valve
    • 1" CA25T Goyen Type Integral Pilot Operated Dust Collector Impulse Diaphragm Valve
  • 1" CA25T Goyen Type Integral Pilot Operated Dust Collector Impulse Diaphragm Valve

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: CA25T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Inner Box, Carton, Pallet
    Delivery Time: 4-7 days
    Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
    Supply Ability: 80000 sets per month
    Contact Now
    Detailed Product Description
    Product Name: CA25T Goyen Type Threaded Valve Port Size: 1'', DN25
    Connection Type: Threaded Nonimal Diameter: φ25mm
    Body Material: Aluminum (Diecast) Voltages: DC24V, AC110V, AC220V, AC230V
    Diaphragm Material: Nitrile Or Viton Working Pressure: 0.3-0.8 MPa
    Environment Temperature: -5℃-55℃ Operation: Internal Pilot
    High Light:

    Dust Collector Pulse Valve

    ,

    Dust Collector Diaphragm Valve

    ,

    Diaphragm Pulse Valve

    1'' CA25T Goyen Type Integral Pilot Operated Dust Collector Impulse Diaphragm Valve



    DESCRIPTION
    High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.

    Goyen type T-series is designed to operate with air pressures from 0.3 to 8.6 bar. These threaded valves can be orientated in any position other than upside down or inverted. The temperature range of the threaded valves depends on the chosen model and diaphragm:
    1. Nitrile diaphragms: -40 °C (-40°F) to 82°C (179.6°F)
    2. Viton diaphragms -29°C (-20.2°F) to 232°C (449.6°F)



    SUITABLE FOR
    Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.



    Main dimension of 1'' DN25 CA25T Goyen Type Dust Collector Pulse Valve:

    1" CA25T Goyen Type Integral Pilot Operated Dust Collector Impulse Diaphragm Valve 0



    Technical parameters of Goyen Type T Series Reverse Pulse Jet Valves:

    Model numbers CA15T CA20T CA25T CA35T CA40T CA50T CA62T CA76T
    Nonimal diameter φ15 φ20 φ25 φ35 φ40 φ50 φ62 φ76
    Port size G1/2'' G3/4'' G1'' G1-1/4'' G1-1/2'' G2'' G2-1/2'' G3''
    Weighgts (kg) 0.6 0.6 0.72 1.1 1.5 2.9 3.4 4.8
    Operation Internal pilot
    Working pressure 0.3-0.8 mpa
    Environment temperature -5℃-55℃
    Relative Humidity ≤85%
    Operating medium Compressed air
    Protection class IP 65
    Service life Over 1000000 times
    Voltages DC24V, AC110V, AC220V, AC230V



    Details of 1'' CA25T Goyen Type Diaphragm Valve In Reverse Pulse Jet System:

    1" CA25T Goyen Type Integral Pilot Operated Dust Collector Impulse Diaphragm Valve 1

    Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)



    Individual Packing of 1'' CA25T Goyen Type Impulse Diaphragm Valve In dust collector:

    1" CA25T Goyen Type Integral Pilot Operated Dust Collector Impulse Diaphragm Valve 2

    Youtube video of CA25T 1'' Goyen Type Dust Collector Pulse Solenoid Valve:



    MAINTENANCE
    Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.



    INSTALLATION
    1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
    2. Ensure tank and pipes are free from dirt, rust or other particulate.
    3. Ensure supply air is clean and dry.
    4. Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
    5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
    6. Apply moderate pressure to system and check for installation leaks.
    7. Fully pressurise system.
    8. Test fire and listen for proper actuation and crisp pulse noise.
