4724000012 / 4422302221 Wabco Type Air Brake ABS Gearbox Valve Solenoid Coil DC24V

4724000012 / 4422302221 Wabco Type Air Brake ABS Gearbox Valve Solenoid Coil DC24V

In the design process of Wabco Type Air Brake ABS Gearbox Valve, the design of 4724000012 / 4422302221 solenoid coil is particularly important, the design should first consider the electromagnetic parameter calculation, electromagnet stroke, rate of communication, temperature and temperature rise, solenoid coil protection measures, environmental factors and life and other factors.

Automotive ABS solenoid coil is the anti-lock braking system (ABS) in the electronic control unit (ECU) of the important parts, the effect is that the car in the process of driving, velocity sensor real-time transfer wheel speed information to the electronic control unit (ECU), ECU logic judgment, analysis and calculation, once identified one or a few wheel tends to lock, the ECU will command input current in the ABS solenoid coil, relying on the powerful electromagnetic force of electromagnetic coil produces mobile valve core, to adjust the pressure in the wheel brake cylinder, prevent wheel lock.

Technical parameter of 4724000012 Wabco Type Air Brake System Solenoid Coil:

Main dimension of 4422302221 Wabco Type ABS Gearbox Valve Solenoid Coil:

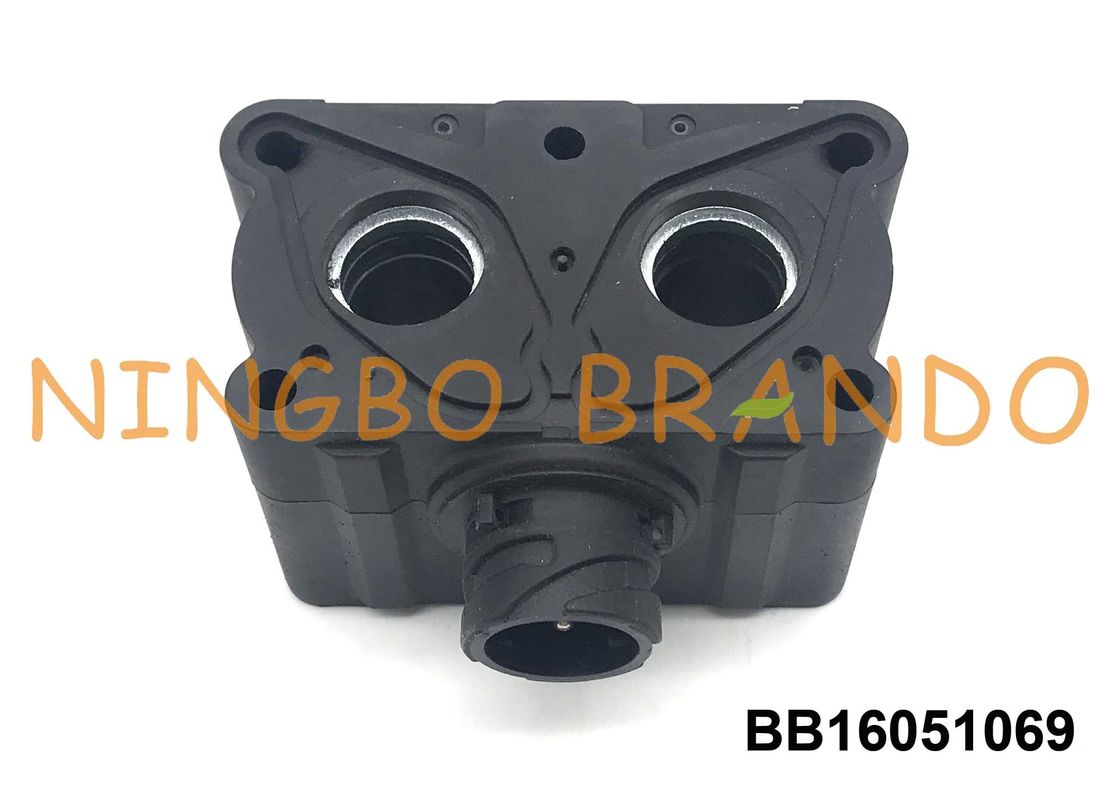

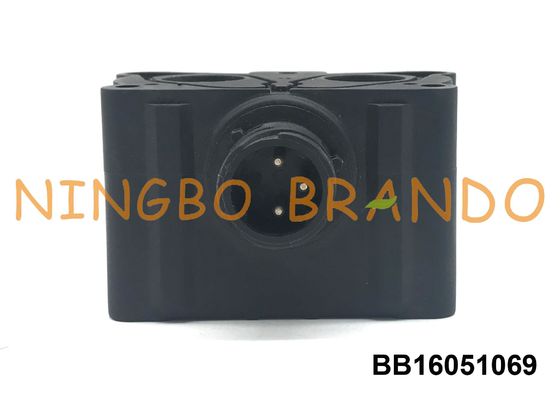

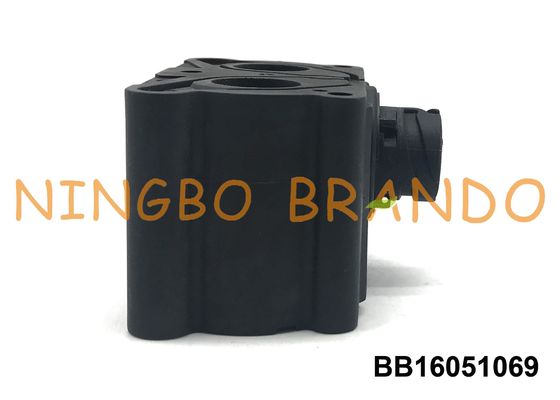

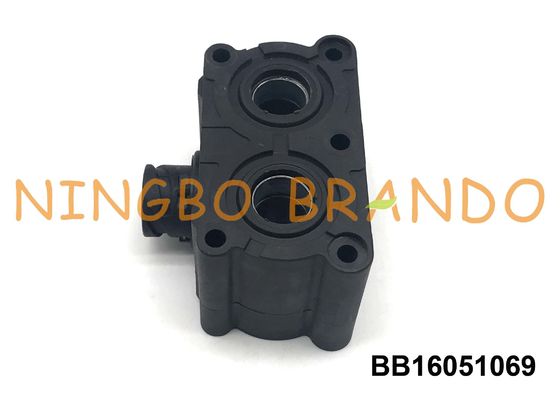

Details display of 4724000012 / 4422302221 Wabco Type ABS Electromagnetic Coil:

Production display of 4724000012 / 4422302221 Wabco Type Air Brake System Magnetic Coil:

More details about Wabco Type 4724000012 / 4422302221 Solenoid Coil For Air Brake Valve Gearbox Valve in below Youtube Video:

Two common questions & answers as follows:

Question 1: Is there an electromagnetic coil for the automotive industry?
Answer: Yes, we do the solenoid valve coils of the automotive industry, including car engines, car gearboxes, car exhaust, car suspension systems and automotive ABS anti-lock systems.

Question 2: How to choose a suitable solenoid valve coil?
Answer: Users can provide us with a series of solenoid valve coil data, such as solenoid valve coil pressure, solenoid valve body material, interface size and media, etc. We will recommend suitable products for customers.

Note on the use of solenoid valve coil:
1. When the coil is energized, it is strictly forbidden to cover to prevent overheating and burning;

2. Electromagnetic coils, sockets, electromagnets and connecting parts are strictly prohibited from hitting the collision to avoid damage;

3. When the coil is energized for normal operation, due to its own heat, the temperature is high, please do not touch it;

4. The working pressure, temperature and viscosity of the medium shall not exceed the specified range;

5. The actual power supply voltage must not exceed the specified range;

6. Ordinary solenoid valve coils should not be used in explosive places;

7. The internal parts of the solenoid valve and the filtering device must be cleaned regularly;

8. Check the model and parameters on the valve label, which must meet the technical requirements of the site;

9. Check the coil, electromagnet and electrical socket to ensure no external damage;

10. When the solenoid valve coil is not used for a while, it can be stored in the room where 0 °C - 40 °C, relative humidity <80%, and no corrosive gas, no open storage is allowed;

11. When the electromagnetic valve is installed in the open air, a protective cover must be installed to ensure performance and extend the service life;

12. The AC solenoid valve coil must not be energized at no load, otherwise there is a danger of burning;

13. The best installation method of the solenoid valve is perpendicular to the horizontal pipe, the coil is upward, and the maximum inclination angle is <30° during installation. Otherwise, normal use cannot be guaranteed;

14. Clean and purify the pipeline. The working medium of the solenoid valve should be clean. If the medium contains particulate impurities, a filter device must be installed on the pipeline before the valve.

15. Connect the valve's interface to the pipe according to the direction indicated by the arrow on the valve body, and ensure that the joint is well sealed.

Welcome to your any question and inquiry!
