Diaphragm For Norgren Dust Filter Valve 8296900.8171 8297900.8171

Diaphragm For Norgren Dust Filter Valve 8296900.8171 8297900.8171

  • Diaphragm For Norgren Dust Filter Valve 8296900.8171 8297900.8171
Diaphragm For Norgren Dust Filter Valve 8296900.8171 8297900.8171
Product Details:
Place of Origin: China, Ningbo
Brand Name: Brando
Certification: CE
Model Number: N900
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Plastic bag, Box, Carton, Pallet
Delivery Time: 4 to 7 working days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 100000 sets per month
Contact Now
Detailed Product Description
Product Name: Pulse Valve Diaphragm Diaphragm Material: TPE
Fitted Pulse Valve Port: 3'' Fitted Pulse Valve Model: 8296600.8171, 8297600.8171
High Light:

8296900.8171 Pulse Valve Diaphragm

,

8297900.8171 Pulse Valve Diaphragm

,

Buschjost Membrane

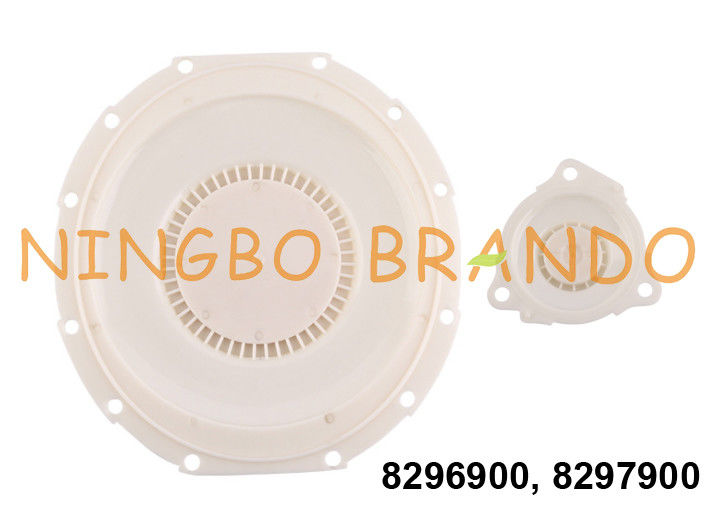

Diaphragm For Norgren Dust Filter Valve 8296900.8171, 8297900.8171



1271526 Diaphragm (Membrane) for 3'' Norgren Buschjost pulse valve 8296900.8171, 8297900.8171; TPE material; Pulse valves are operated by integral solenoid pilot operator. When the valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pilot operated valve is de - energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the valve.



Ordering Code of Diaphragm For Norgren Buschjost Pulse Valve:

Ordering Code
Fitted Valve Code
Valve Port Size
Material
1261253 (N300)
8296300.8171, 8297300.8171
3/4''
TPE
1261253 (N400)
8296400.8171, 8297400.8171
1''
TPE
1261402 (N600)
8296600.8171, 8297600.8171
1-1/2''
TPE
1268274 (N700)
8296700.8171, 8297700.8171
2''
TPE
8296800.8171, 8297800.8171
2-1/2''
TPE
1271526 (N900)
8296900.8171, 8297900.8171
3''
TPE



Main Dimension of 3'' Pulse Valve Diaphragm:



Main Diaphragm:

Diaphragm For Norgren Dust Filter Valve 8296900.8171 8297900.8171 0



Secondary Diaphragm:

Diaphragm For Norgren Dust Filter Valve 8296900.8171 8297900.8171 1



Video of 3'' Pulse Valve Membrane:



Pictures of Solenoid Valve Membrane Production:

1271526 Diaphragm Repair Kit For Norgren 3'' 8296900 Pulse Valve 10



More Products For Norgren Buschjost Pulse Valve for you to choose:

Diaphragm For Norgren Buschjost Pulse Valve 8296300.8171 8297300.8171 2 Diaphragm For Norgren Buschjost Pulse Valve 8296300.8171 8297300.8171 3 Diaphragm For Norgren Buschjost Pulse Valve 8296300.8171 8297300.8171 4
Valve Diaphragm Solenoid Coil, Solenoid Armature Pulse Controller
