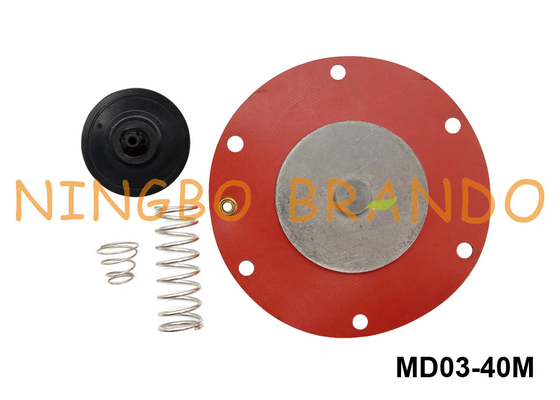

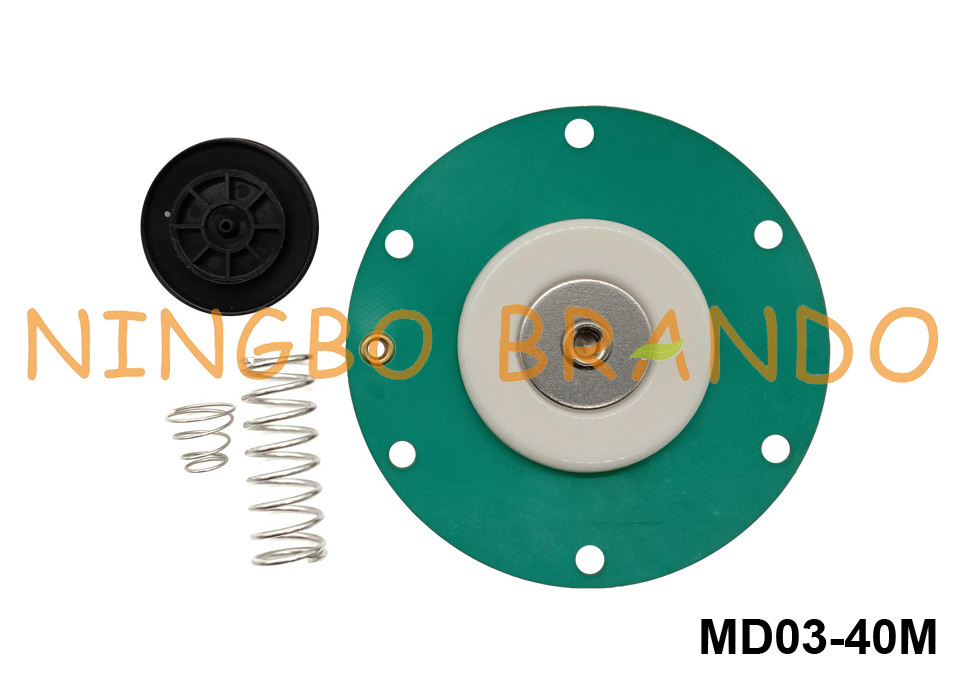

MD03-40M Membrane For Taeha Pulse Diaphragm Valve TH-5440-M TH-4440-M

MD03-40M Membrane For Taeha Pulse Diaphragm Valve TH-5440-M TH-4440-M

  • MD03-40M Membrane For Taeha Pulse Diaphragm Valve TH-5440-M TH-4440-M
  • MD03-40M Membrane For Taeha Pulse Diaphragm Valve TH-5440-M TH-4440-M
MD03-40M Membrane For Taeha Pulse Diaphragm Valve TH-5440-M TH-4440-M
Product Details:
Place of Origin: China, Ningbo
Brand Name: BRANDO
Certification: CE, ISO
Model Number: MD-04M
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Plastic bag, Box, Carton, Pallet
Delivery Time: 4 to 7 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100000 sets per month
Contact Now
Detailed Product Description
Product Name: Pulse Valve Membrane Membrane Material: NBR
Seat Material: Nylon 1 Set: 1pc Big Diaphragm, 1pc Small Diaphragm, 2pcs Springs
Fitted Pulse Valve Port: 1.5'' Fitted Pulse Valve Model: TH-5440-M, TH-4440-M
High Light:

Taeha Diaphragm MD03-40M

,

Taeha Membrane MD03-40M

,

Taeha Diaphragm

MD03-40M Membrane For Taeha Pulse Diaphragm Valve TH-5440-M TH-4440-M



MD03-40M Diaphragm (Membrane) for Taeha pulse valve TH-5440-M, TH-4440-M; On a pulse jet baghouse pulse valves (also called diaphragm valves) control the release of air pulses during the cleaning cycle. When the baghouse control board or timer board initiates a cleaning cycle it sends an electrical signal to the solenoids, when then activate the pulse valve. Inside the pulse valve, a rubber diaphragm opens and closes to release the compressed air stored in the air header tank. The air then passes through the valve into the blow pipes above the filters and then is directed down into the filters to clean them.



Ordering Code of Diaphragm For Taeha Pulse Valve:

BRANDO Model
Reference Number
Port Size
Fitted Pulse Valve Model
Color
Material
DH20
MD01-20
MD02-20
3/4''
TH-5820-B
TH-4820-B
TH-5825-B
TH-5820-C
TH-4820-C
Red & Green
NBR
DH25
MD01-25
MD02-25
1''
TH-4825-B
TH-5825-C
TH-4825-C
TH-5840-F
TH-4840-F
DH25M
MD01-25M
1''
TH-5825-M
DH40
MD01-40
MD02-40
MD03-40
1 1/2''
TH-5840-B
TH-5440-B
TH-4840-B
TH-4440-B
TH-5840-C
TH-5440-C
TH-4840-C
TH-4440-C
TH-5850-F
TH-5450-F
TH-4850-F
TH-4450-F
DH40M
MD03-40M
1 1/2''
TH-5440-M
TH-4440-M
DH50
MD03-50
2''
TH-5450-B
TH-4450-B
DH50M
MD03-50M
2''
TH-5450-M
TH-4450-M
DH60
MD03-60
MD04-60
2 1/2''
TH-5460-B
TH-4460-B
TH-5460-S
TH-4460-S
DH75
MD03-75
3''
TH-5475-B
TH-4475-B
DH75M
MD03-75M
3''
TH-5475-M
TH-4475-M



Dimension of MD03-40M Diaphragm:



Main Diaphragm

MD03-40M Membrane For Taeha Pulse Diaphragm Valve TH-5440-M TH-4440-M 0



Secondary Diaphragm

MD03-40M Membrane For Taeha Pulse Diaphragm Valve TH-5440-M TH-4440-M 1
