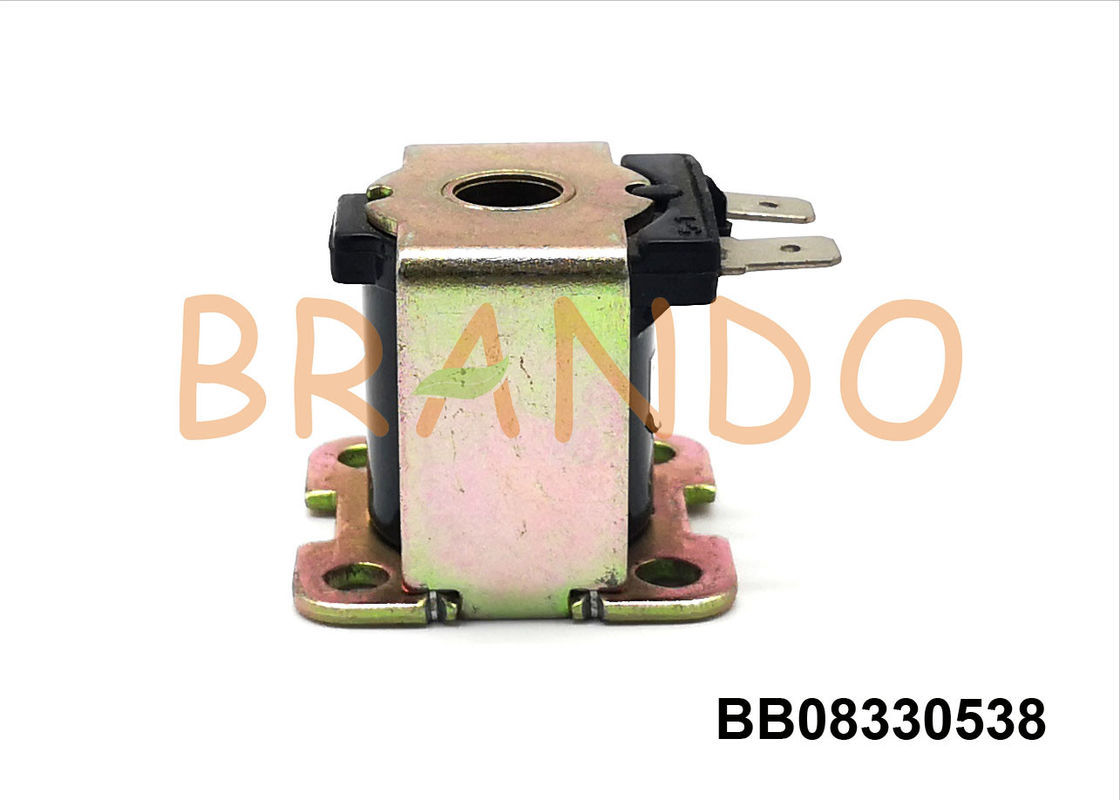

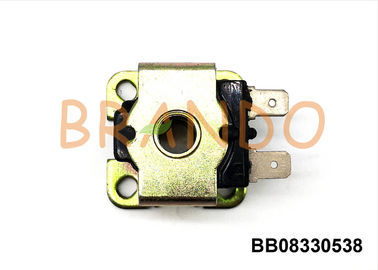

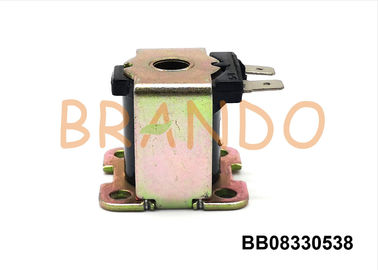

8 Diameter Plastic RO Water Solenoid Coil With Galvanized Iron Bracket AC220V / DC24V

8 Diameter Plastic RO Water Solenoid Coil With Galvanized Iron Bracket AC220V / DC24V

  • 8 Diameter Plastic RO Water Solenoid Coil With Galvanized Iron Bracket AC220V / DC24V
  • 8 Diameter Plastic RO Water Solenoid Coil With Galvanized Iron Bracket AC220V / DC24V
  • 8 Diameter Plastic RO Water Solenoid Coil With Galvanized Iron Bracket AC220V / DC24V
  • 8 Diameter Plastic RO Water Solenoid Coil With Galvanized Iron Bracket AC220V / DC24V
8 Diameter Plastic RO Water Solenoid Coil With Galvanized Iron Bracket AC220V / DC24V
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BB08330538
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 500000 sets per month
Contact Now
Detailed Product Description
Type: Solenoid Valve Coils Material: Brass, Galvanized Iron
Product Name: Plastic RO Water Solenoid Coil With Galvanized Iron Bracket Voltage: DC12V/DC24V/AC110V/AC220V (Other Can Be Customized)
Hole Diameter: 8mm Power: Solenoid Operated
Color: Black (Other Color Can Be Customized) Application: RO Water Solenoid Valve Automatic Control
Insulation Class: F Connection: 6.3mm X 0.8mm
High Light:

Solenoid Coils

,

Solenoid Valve Coils

,

Coils For Solenoid Valves

8 Diameter Plastic RO Water Solenoid Coil With Galvanized Iron Bracket AC220V/DC24V



Product Usage of RO water solenoid coil in water inlet solenoid valves:
1. The water inlet solenoid valve and high pressure water pump are connected in parallel and connected to the computer board.



2. When making water or flushing, the water inlet solenoid valve is open and the high pressure water pump is working; in standby mode, the water inlet solenoid valve is closed and the high pressure water pump is stopped.



3. The function of the water inlet solenoid valve is to open the water in the process of water or flushing, and to close the water in the standby or power failure, so as not to waste water when the water machine is not working.



The solenoid valve is suitable for water appliances such as pure water machine, water purifier, water dispenser, straight drink machine, etc., has wide application range, good performance stability and long service life.



Scope of application: Generally used on machines such as pure water machine and water purifier, it can be turned on and off by 24V DC control solenoid valve for RO water purifier wastewater control.



Technical parameter of plastic RO water solenoid valve coils:

Model No. BB08330538
Normal voltage DC12V/DC24V/AC110V/AC220V (Other can be customized)
Normal power 5W
Insulation class F
Connection type 6.3mm x 0.8mm
Application RO water solenoid valve automatic control
Weight 76.5 g
Hole size 8 mm
Height 30.5 mm



Main dimension of 8 hole diameter RO solenoid water valve coils:

8 Diameter Plastic RO Water Solenoid Coil With Galvanized Iron Bracket AC220V / DC24V 0

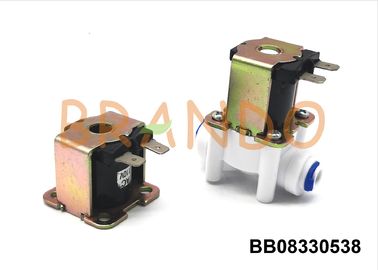

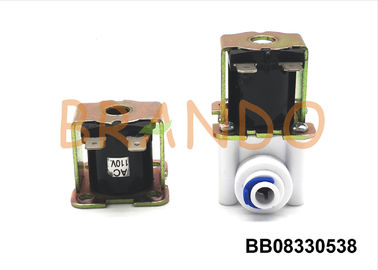

Electromagnetic coils in Inlet water solenoid valve for home appliances:

8 Diameter Plastic RO Water Solenoid Coil With Galvanized Iron Bracket AC220V / DC24V 18 Diameter Plastic RO Water Solenoid Coil With Galvanized Iron Bracket AC220V / DC24V 28 Diameter Plastic RO Water Solenoid Coil With Galvanized Iron Bracket AC220V / DC24V 3



Electric Magnetic Coils are suitable for all port type water purifier solenoid valves:

8 Diameter Plastic RO Water Solenoid Coil With Galvanized Iron Bracket AC220V / DC24V 4



RO water solenoid water valve coil housing structure:

Although the solenoid valve coil is a very compact device, the device is still composed of a plurality of different structural parts, and it is required to meet certain requirements in each structural part. In terms of the outer casing structure of the coil, it is necessary to meet the following requirements before it can be applied:


1. Good insulation: Because the outer casing structure part of the solenoid valve coil needs to protect the internal structural part well, it is also necessary to protect the electric power of the internal passage without leakage. Therefore, for this structural part of the outer casing, it is highly desirable to meet the requirement of good insulation.


2. The material is excellent: whether it is from the protection function of the outer casing structure of the solenoid valve coil when it is applied, or from the perspective of its insulation performance, it needs to meet the requirements of excellent material in this structural part. Will have a good guarantee.



3. Stable structure: In order to ensure that the outer casing structure of the solenoid valve coil can be used for the protection of the internal device and the long-term application of the coil, it is necessary to be able to conform to the structural stability requirement in this structural part.



The above three requirements are all that the outer casing structure of the solenoid valve coil needs to be conformed, so that the outer casing structure of the device is very high quality. We must ensure that all produced electromagnetic coils meet the above three conditions.
